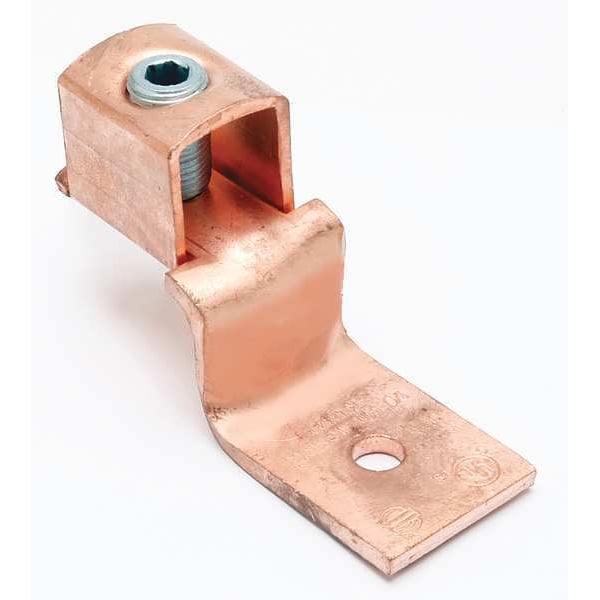

Conexión mecánica, Terminal, 1/0 a 2 AWG, 1 condición.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 2 AWG Stranded |
| Max. Conductor Size | 1/0 AWG Stranded |
| Stud Size | 1/4 in |
| Material | Copper |
| Length | 1.99 in |
| Width | 0.74 in |
| Standards | cULus Listed, UL Listed |
| Head Style | Slotted |
| Body Material | Copper |
| Length (Straight Wireway) | 1.99 in |
| Overall Length | 1.98 in |
| Overall Depth | 5/8 in |
| Tongue Thickness | 0.11 in |
| Hole Diameter | 0.26 in |
| Maximum Operating Temperature | 194 deg F |
| Strip Length | 15/16 in |
| Overall Width | 0.74 in |
| Contact Finish | Unplated |
| Number of Conductors | 1 |
| Torque | 50 in-lb |
| Connection Orientation | Offset Tang |
| Compatible with Product Type | Copper Cable |
| Tongue Width | 0.62 in |
| For Conductor Material | Copper |
| For Stud Size | 1/4 in |
| Color | Bare |
| Tongue Length | Not Applicable |
| Special Features | Easy Installation, Long Lasting Reliable Contact |
| Maximum Voltage | 600 V |
| Number of Terminations | 1 |
| For Stranded Copper Wire Size - Minimum | 2 AWG |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Hole Spacing | Not Applicable |
| Conductor Size | 2-1/0 AWG |
| Type | Bolted Lugs & Terminals |
| Certification - CSA Approved | No |
| Dimension - Stud Size inch | 44930 |
| Conductor - Copper Str Size Range | 2 AWG-1/0 |
| Plated | N |
| Dimension - Strip Length inch | 0.9375 |
| UL Listed | No |
| Dimension - Hole Size inch | 0.26 in |
| Dimension - Bolt Size fraction | 2023-01-04 |
| Hardware Type | 3/8 UNF Slotted SetScrew |
| Standards - Industry Standards Met | UL467 |
| Certification - cULus | Yes |
| Dimension - B Length fraction | 5/8 in |
| Physical Attribute - Number of Screws | 1 |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar |
| Dimension - N inch | 0.42 in |
| Dimension - B Length inch | 0.61 in |
| Conductor Type | CU C Str-Size |
| Conductor - Copper Str Size | 2 AWG;1 AWG;1/0 |
| Certification - UL Listed Direct Burial | No |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Length Overall inch | 1.98 in |
| Industry Standard(s) | UL467 |
| Dimension - L Length Overall mm | 50 mm |
| Dimension - Pad Width inch | 0.62 |
| Physical Attribute - Number of Holes | 1 |
| Installation Torque Recommended in-lb | 50 |
| Trade Name | SCRULUGâ„¢ |
| Plating Type | Unplated |
| Physical Attribute - Screw Type | Slot |
| Dimension - Screw Size inch | 44,993 |
| Package Quantity | 1 |
