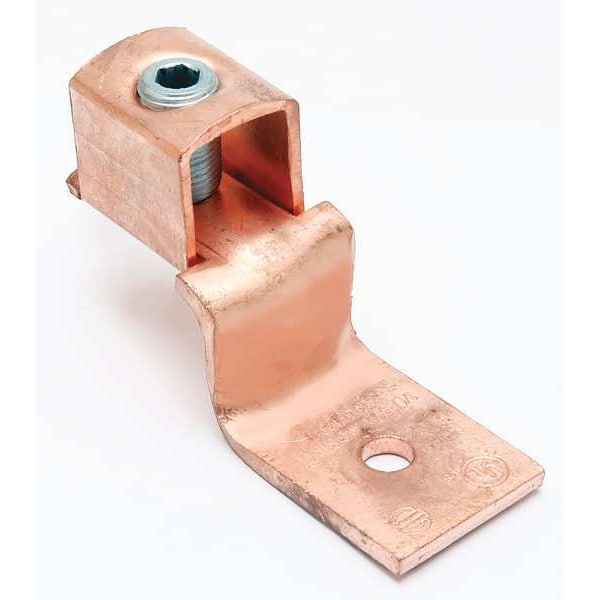

Conexión mecánica, terminal, de 350 kcmil a 1/0 AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 1/0 AWG Stranded |
| Max. Conductor Size | 350 kcmil Stranded |
| Stud Size | 3/8 in |
| Material | Copper |
| Length | 2.83 in |
| Width | 1.03 in |
| Standards | cULus Listed, UL Listed |
| Body Material | Copper |
| Head Style | Hex |
| Length (Straight Wireway) | 2.83 in |
| Strip Length | 1-5/8 in |
| Tongue Width | 1.1 in |
| Color | Bare |
| Contact Finish | Unplated |
| Overall Width | 1.03 in |
| Connection Orientation | Offset Tang |
| For Stud Size | 3/8 in |
| Maximum Voltage | 600 V |
| Hole Spacing | Not Applicable |
| Number of Conductors | 1 |
| Tongue Thickness | 0.12 in |
| Torque | 275 in-lb |
| For Stranded Copper Wire Size - Maximum | 350 kcmil |
| Overall Depth | 1 in |
| Special Features | Easy Installation, Long Lasting Reliable Contact |
| Compatible with Product Type | Copper Cable |
| Hole Diameter | 0.39 in |
| Number of Terminations | 1 |
| Maximum Operating Temperature | 194 deg F |
| For Conductor Material | Copper |
| Tongue Length | Not Applicable |
| Overall Length | 2.83 in |
| For Stranded Copper Wire Size - Minimum | 1/0 AWG |
| Conductor Size | 1/0 AWG-350 KCMIL |
| Type | Bolted Lugs & Terminals |
| Conductor - Copper Str Size | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil |
| Conductor Type | CU C Str-Size |
| Certification - UL Listed Direct Burial | No |
| Dimension - Length Overall inch | 2.83 in |
| Dimension - Hole Size mm | 10 mm |
| Dimension - N inch | 0.52 in |
| Plating Type | Unplated |
| Physical Attribute - Screw Type | Allen |
| Certification - CSA Approved | No |
| Certification - cULus | Yes |
| Conductor - Copper Str Size Range | 1/0 -350 kcmil |
| Physical Attribute - Number of Holes | 1 |
| Industry Standard(s) | UL467 |
| Dimension - Strip Length inch | 39,452 |
| Installation Torque Recommended in-lb | 275 |
| Dimension - B Length inch | 1.22 in |
| Hardware Type | HexScrew, 5/8 UNF Socket |
| Dimension - Hole Size inch | 0.39 in |
| UL Listed | No |
| Dimension - Bolt Size fraction | 2023-03-08 |
| Dimension - Screw Size inch | 45,054 |
| Plated | N |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar And Offset Tongue, Non-Plated |
| Standards - Industry Standards Met | UL467 |
| Dimension - B Length fraction | 1-7/32 in |
| Dimension - Pad Width inch | 0.99 in |
| Dimension - Stud Size inch | 44993 |
| Physical Attribute - Number of Screws | 1 |
| Dimension - L Length Overall mm | 72 mm |
| Trade Name | SCRULUGâ„¢ |
| Package Quantity | 1 |
