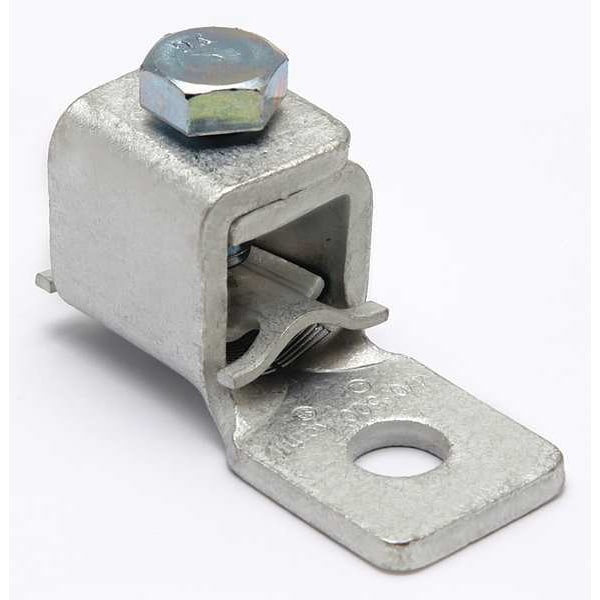

Conector Mecánico, 1/0 a 4 AWG, 1 Conductor
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 4 AWG Stranded |
| Max. Conductor Size | 1/0 AWG Stranded |
| Stud Size | 5/16 in |
| Material | Copper |
| Length | 1.7 in |
| Width | 1-1/4 in |
| Standards | CSA Certified, UL Listed |
| Head Style | Hex |
| Body Material | Copper |
| Length (Straight Wireway) | 1.7 in |
| Hole Spacing | Not Applicable |
| Number of Pieces | 1 |
| Overall Length | 1.82 in |
| Tongue Width | 0.62 in |
| Special Features | One Piece Design, Pressure Bar |
| Maximum Operating Temperature | 194 deg F |
| Tongue Length | 0.81 in |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| Torque | 180 in-lb |
| For Stud Size | 5/16 in |
| Overall Width | 1-1/4 in |
| Number of Terminations | 1 |
| Compatible with Product Type | Cable |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Connection Orientation | Compact |
| Number of Conductors | 1 |
| Tongue Thickness | 0.1 in |
| Hole Diameter | 0.33 in |
| Overall Depth | 3/4 in |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Conductor Size | 4-1/0 AWG |
| Type | Bolted Lugs & Terminals |
| Plating Type | Tin |
| Conductor - Copper Str Size | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 |
| Conductor Type | CU C Str-SizeCU C Navy-Size |
| Dimension - Bolt Size fraction | 2023-05-16 |
| Dimension - N inch | 0.41 in |
| Physical Attribute - Number of Screws | 1 |
| Dimension - L Length Overall mm | 46 mm |
| Conductor - Copper Str Navy Size Range | 50 (19) Navy-100 (61) Navy |
| Conductor - Copper Str Size Range | 4 AWG-1/0 |
| Application | For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - D inch | 0.81 in |
| Industry Standard(s) | UL468A-468B |
| Installation Torque Recommended in-lb | 180 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Trade Name | SCRULUGâ„¢ |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Hole Size inch | 0.33 in |
| UL Listed | Yes |
| Certification - CSA Approved | No |
| Plated | Y |
| Conductor - Copper Str Navy Size | 50 (19) Navy;60 (37) Navy;75 (37) Navy;100 (61) Navy |
| Dimension - Length Overall inch | 1.82 in |
| Dimension - Pad Width inch | 3/4 in |
| Certification - UL Listed Direct Burial | No |
| Dimension - Height inch | 1-1/4 in |
| Dimension - Hole Size mm | 8 mm |
| Dimension - Height fraction | 1-1/4 in |
| Dimension - Stud Size inch | 45062 |
| Package Quantity | 1 |
