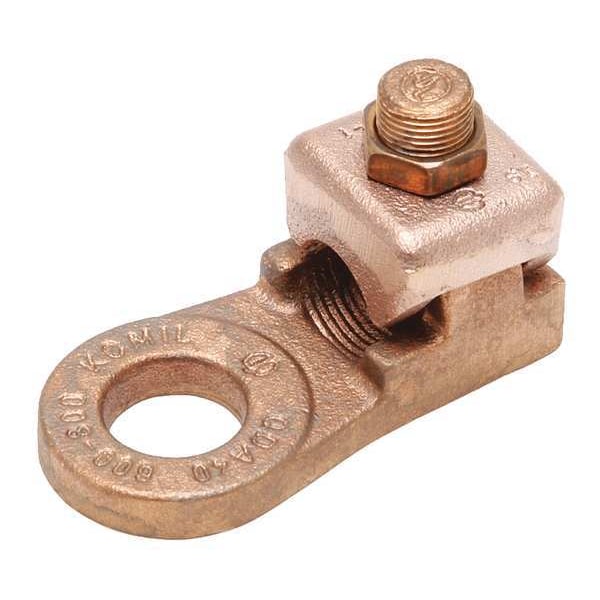

Mechanical Conn, 350 to 250 kcmil, 1 Cond
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 250 kcmil Stranded |
| Max. Conductor Size | 350 kcmil Stranded |
| Stud Size | 5/8 in |
| Material | Copper |
| Length | 3.38 in |
| Width | 1.69 in |
| Standards | UL Listed |
| Body Material | Copper |
| Head Style | Hex |
| Length (Straight Wireway) | 3.38 in |
| Maximum Operating Temperature | 194 deg F |
| Tongue Thickness | 0.31 in |
| For Stud Size | 5/8 in |
| Tongue Length | Not Applicable |
| Connection Orientation | Compact |
| Tongue Width | 1-1/2 in |
| Overall Width | 1.69 in |
| Number of Terminations | 1 |
| Hole Spacing | Not Applicable |
| Number of Conductors | 1 |
| Hole Diameter | 0.69 in |
| Tongue Offset Height | 1-11/16 in |
| For Stranded Copper Wire Size - Minimum | 250 kcmil |
| For Conductor Material | Copper |
| Maximum Voltage | 600 V |
| Overall Depth | 1-1/2 in |
| For Stranded Copper Wire Size - Maximum | 350 kcmil |
| Special Features | Low Contact Resistance When Gripped Between Two Contact Nuts, One Wrench Installation |
| Torque | 325 in-lb |
| Overall Length | 3 in |
| Compatible with Product Type | Copper Cable |
| Contact Finish | Unplated |
| Type | Bolted Lugs & Terminals |
| Conductor - Copper Str Navy Size | 250 (61) Navy;300 (91) Navy;350 (91) Navy |
| Dimension - Pad Width inch | 1-1/2 in |
| Dimension - L Length Overall mm | 86 mm |
| Physical Attribute - Number of Screws | 1 |
| UL Listed | Yes |
| Dimension - Hole Size inch | 0.69 in |
| Installation Torque Recommended in-lb | 325 LBS/in |
| Dimension - Width inch | 1-1/2 in |
| Plating Type | Unplated |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Studs |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Certification - CSA Approved | No |
| Dimension - Height inch | 1.69 in |
| Dimension - Width mm | 38 mm |
| Conductor - Copper Str Size | 250 kcmil;300 kcmil;350 kcmil |
| Dimension - Height fraction | 1-11/16 in |
| Conductor - Copper Str Navy Size Range | 250 (61) Navy-350 (91) Navy |
| Dimension - Stud Size inch | 45054 |
| Industry Standard(s) | UL468A-468B |
| Dimension - Length Overall inch | 3 in |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Hole Size fraction | 45,246 |
| Conductor - Copper Str Size Range | 250 kcmil-350 kcmil |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - Hole Size mm | 18 mm |
| Plated | N |
| Package Quantity | 1 |
