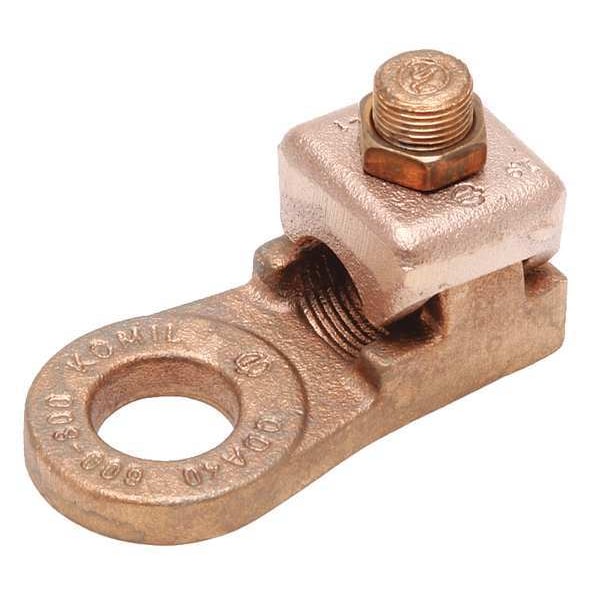

Conector mecánico, 4/0 a 3/0 AWG, 1 conductor.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 3/0 AWG Stranded |
| Max. Conductor Size | 4/0 AWG Stranded |
| Stud Size | 1/2 in |
| Material | Copper |
| Length | 2.63 in |
| Width | 1.31 in |
| Standards | UL Listed |
| Head Style | Hex |
| Body Material | Copper |
| Length (Straight Wireway) | 2.63 in |
| Overall Length | 2.63 in |
| Maximum Operating Temperature | 194 deg F |
| Connection Orientation | Compact |
| For Stranded Copper Wire Size - Minimum | 3/0 AWG |
| Overall Depth | 1-1/4 in |
| Contact Finish | Unplated |
| Tongue Length | Not Applicable |
| Maximum Voltage | 600 V |
| Number of Conductors | 1 |
| Tongue Thickness | 0.31 in |
| Tongue Width | 1-1/4 in |
| For Stranded Copper Wire Size - Maximum | 4/0 AWG |
| Torque | 250 in-lb |
| Compatible with Product Type | Copper Cable |
| Number of Terminations | 1 |
| For Conductor Material | Copper |
| Hole Diameter | 0.56 in |
| Overall Width | 1.31 in |
| Hole Spacing | Not Applicable |
| For Stud Size | 1/2 in |
| Special Features | Low Contact Resistance When Gripped Between Two Contact Nuts, One Wrench Installation |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 3/0-4/0 AWG |
| Dimension - Width mm | 32 mm |
| Industry Standard(s) | UL468A-468B |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - Height fraction | 42374 |
| Conductor - Copper Str Size | 3/0 AWG;4/0 AWG |
| Plating Type | Unplated |
| Dimension - Length Overall inch | 2.63 in |
| Dimension - Hole Size fraction | 45,185 |
| Dimension - Width inch | 1-1/4 in |
| Dimension - Height inch | 1.31 in |
| Dimension - Hole Size mm | 14 mm |
| Physical Attribute - Number of Screws | 1 |
| Installation Torque Recommended in-lb | 250 LBS/in |
| Conductor - Copper Str Navy Size Range | 150 (61) Navy-200 (61) Navy |
| Dimension - Pad Width inch | 1-1/4 in |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Conductor - Copper Str Size Range | 3/0 AWG-4/0 AWG |
| Dimension - Stud Size inch | 44928 |
| Plated | N |
| Conductor - Copper Str Navy Size | 150 (61) Navy;200 (61) Navy |
| Certification - CSA Approved | No |
| Dimension - L Length Overall mm | 67 mm |
| UL Listed | Yes |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Studs |
| Conductor Type | CU C Str-SizeCU C Navy-Size |
| Dimension - Bolt Size fraction | 1 to 2 |
| Trade Name | QIKLUG™ |
| Package Quantity | 1 |
