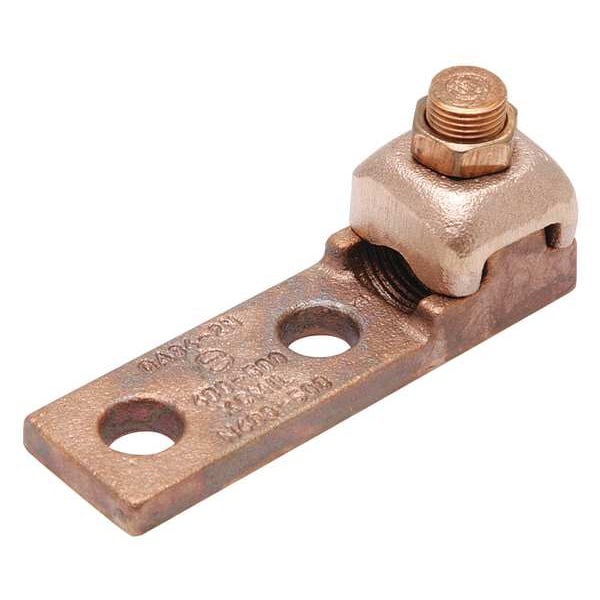

Conector mecánico, de 500 a 400 kcmil, 1 conductor.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 400 kcmil Stranded |
| Max. Conductor Size | 500 kcmil Stranded |
| Stud Size | 1/2 in |
| Material | Copper |
| Length | 4.69 in |
| Width | 1.94 in |
| Standards | UL Listed |
| Body Material | Copper |
| Head Style | Hex |
| Length (Straight Wireway) | 4.69 in |
| Overall Length | 4.69 in |
| Tongue Width | 1.38 in |
| Tongue Thickness | 0.31 in |
| Hole Diameter | 0.56 in |
| Connection Orientation | Compact |
| Number of Terminations | 1 |
| For Stranded Copper Wire Size - Maximum | 500 kcmil |
| Hole Spacing | 1-3/4 in |
| Number of Conductors | 1 |
| Contact Finish | Unplated |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 400 kcmil |
| Overall Depth | 1-3/8 in |
| Compatible with Product Type | Copper Cable |
| Maximum Voltage | 600 V |
| Overall Width | 1.94 in |
| Maximum Operating Temperature | 194 deg F |
| Torque | 375 in-lb |
| Tongue Length | 3.09 in |
| For Stud Size | 1/2 in |
| Special Features | Heavy Duty, Joining A Wide Range Of Cable |
| Conductor Size | 400-500 kcmil |
| Type | Bolted Lugs & Terminals |
| Plated | N |
| Standards - Industry Standards Met | UL468A-468B |
| Plating Type | Unplated |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Stud Size inch | 44928 |
| Conductor Type | CU C Str-SizeCU C Navy-Size |
| Dimension - Length Overall inch | 4.69 in |
| Dimension - N inch | 0.62 in |
| Dimension - Pad Width inch | 1.38 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - Hole Size fraction | 45,185 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Physical Attribute - Number of Holes | 2 |
| Temperature Rating | 194 |
| Conductor - Copper Str Navy Size Range | 400 (127) Navy-500 (127) Navy |
| Application | For Copper Cable |
| Industry Standard(s) | UL468A-468B |
| Installation Torque Recommended in-lb | 375 LBS/in |
| Certification - CSA Approved | No |
| Rating - Minimum Voltage | 600 |
| Dimension - Height fraction | 2 |
| Conductor - Copper Str Size Range | 400 kcmil-500 kcmil |
| Dimension - Bolt Size fraction | 1 to 2 |
| Dimension - F Width Center to Center inch | 1-3/4 in |
| UL Listed | Yes |
| Physical Attribute - Number of Screws | 1 |
| Dimension - L Length Overall mm | 119 mm |
| Conductor - Copper Str Size | 400 kcmil;450 kcmil;500 kcmil |
| Dimension - D inch | 3.09 in |
| Trade Name | QIKLUGâ„¢ |
| Conductor - Copper Str Navy Size | 400 (127) Navy;500 (127) Navy |
| Dimension - Height inch | 1.94 in |
| Package Quantity | 1 |
