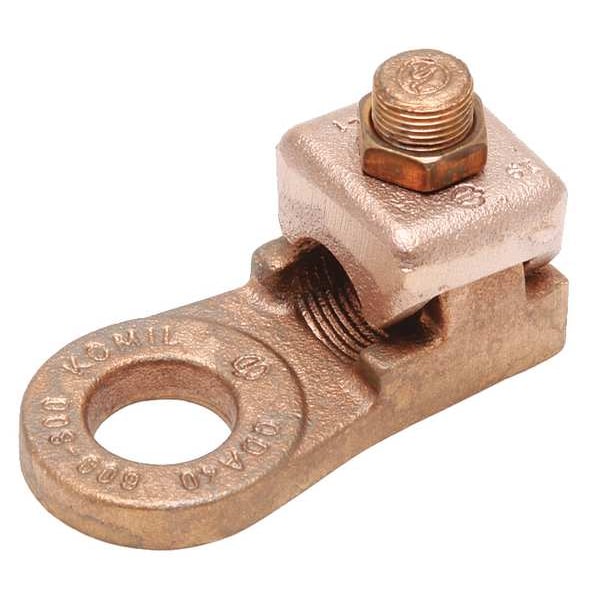

Mechanical Conn, 800 to 600 kcmil, 1 Cond
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 600 kcmil Stranded |
| Max. Conductor Size | 800 kcmil Stranded |
| Stud Size | 1 in |
| Material | Copper |
| Length | 4-1/4 in |
| Width | 2.44 in |
| Standards | UL Listed |
| Head Style | Hex |
| Body Material | Copper |
| Length (Straight Wireway) | 4-1/4 in |
| Tongue Thickness | 0.38 in |
| Overall Depth | 2-1/8 in |
| Tongue Length | Not Applicable |
| For Stud Size | 1 in |
| For Stranded Copper Wire Size - Minimum | 600 kcmil |
| Connection Orientation | Compact |
| Hole Spacing | Not Applicable |
| Contact Finish | Unplated |
| Overall Length | 4.19 in |
| Tongue Width | 2.13 in |
| Maximum Operating Temperature | 194 deg F |
| Overall Width | 2.31 in |
| For Stranded Copper Wire Size - Maximum | 800 kcmil |
| Number of Terminations | 1 |
| Maximum Voltage | 600 V |
| Number of Conductors | 1 |
| Torque | 500 in-lb |
| Hole Diameter | 1.13 in |
| Compatible with Product Type | Copper Cable |
| Special Features | Low Contact Resistance When Gripped Between Two Contact Nuts, One Wrench Installation |
| For Conductor Material | Copper |
| Type | Bolted Lugs & Terminals |
| Installation Torque Recommended in-lb | 500 LBS/in |
| Certification - CSA Approved | No |
| Dimension - Length Overall inch | 4.19 in |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Pad Width inch | 2.12 in |
| Dimension - Hole Size mm | 27 mm |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Studs |
| Conductor - Copper Str Navy Size | 650 (127) Navy;800 (127) Navy |
| Conductor - Copper Str Navy Size Range | 650 (127) Navy-800 (127) Navy |
| Dimension - Width inch | 2.13 |
| Dimension - Height fraction | 2-5/16 in |
| Plating Type | Unplated |
| Plated | N |
| Dimension - Height inch | 2.31 in |
| Conductor - Copper Str Size Range | 600 kcmil-800 kcmil |
| Dimension - Stud Size inch | 1 |
| Dimension - L Length Overall mm | 108 mm |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| UL Listed | Yes |
| Dimension - Hole Size inch | 1.13 in |
| Conductor - Copper Str Size | 600 kcmil;700 kcmil;750 kcmil;800 kcmil |
| Industry Standard(s) | UL468A-468B |
| Physical Attribute - Number of Screws | 1 |
| Dimension - Width mm | 54 mm |
| Standards - Industry Standards Met | UL468A-468B |
| Package Quantity | 1 |
