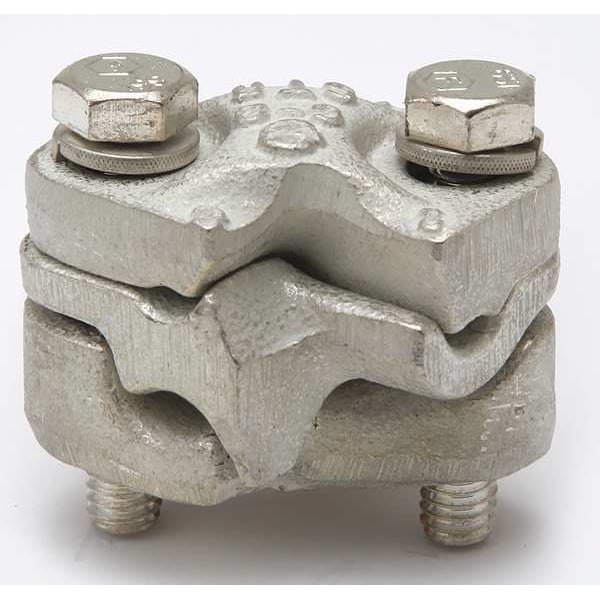

Mechanical Conn, Clamp, 4/0 to 1/0 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Parallel Clamp |
| No. of Conductors | 2 |
| Min. Conductor Size | 1/0 AWG (Run) Stranded, 6 AWG (Tap) |
| Max. Conductor Size | 2 AWG (Tap), 4/0 AWG (Run) Stranded |
| Material | Copper |
| Length | 1.88 in |
| Width | 1.84 in |
| Head Style | Hex |
| Body Material | Copper |
| Length (Straight Wireway) | 1.88 in |
| Special Features | Edges Rounded For Easy Taping, Makes Parallel, Tap, Tee, Cross Or End-To-End Connections |
| Contact Finish | Tin |
| Hole Diameter | Not Applicable |
| Overall Width | 1.88 in |
| Overall Depth | 1-7/8 in |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Tongue Thickness | Not Applicable |
| Maximum Voltage | 600 V |
| Tongue Width | Not Applicable |
| Connection Orientation | Parallel Clamp |
| For Stud Size | 5/16 in |
| Hole Spacing | Not Applicable |
| Torque | 150 in-lb |
| For Stranded Copper Wire Size - Maximum | 2 AWG |
| Number of Conductors | 2 |
| Maximum Operating Temperature | 194 deg F |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| For Conductor Material | Copper, Aluminum |
| Number of Terminations | 2 |
| Overall Length | 1-1/2 in |
| Type | QPX-Y, Universal |
| Plated | Y |
| Dimension - Height fraction | 1-7/8 in |
| Dimension - Width inch | 1.84 |
| Conductor - Copper Str Run Range | 1/0 -4/0 AWG |
| Item Type | 3B |
| Conductor - AL Str Run Range | 1/0 AWG-4/0 AWG |
| Conductor - AL Str Tap | 6 AWG;4 AWG;3 AWG;2 AWG |
| Temperature Rating | 194 |
| Certification - UL Listed Direct Burial | No |
| Application | For Use With Copper Or Aluminum Cable |
| Conductor - Copper Str Tap | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Certification - CSA Approved | No |
| Dimension - L Length Overall mm | 38 mm |
| Conductor - AL Str Run | 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plating Type | Tin |
| Installation Torque Recommended in-lb | 150 LBS/in |
| Conductor - Copper Str Run | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG |
| Dimension - Height inch | 1.88 |
| Material - Hardware | DURIUMâ„¢ Silicon Bronze |
| Dimension - Length Overall inch | 1-1/2 in |
| UL Listed | No |
| Rating - Minimum Voltage | 600 |
| Dimension - Width fraction | 1-7/8 in |
| Conductor - Copper Str Tap Range | 6 AWG-2 AWG |
| Conductor - AL Str Tap Range | 6 AWG-2 AWG |
| Dimension - Width mm | 47 mm |
| Package Quantity | 1 |
