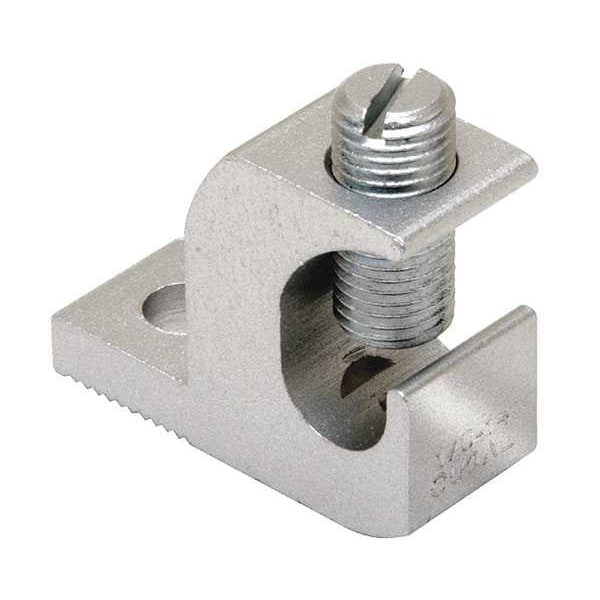

Conector mecánico, terminal de ajuste por inserción, 1/0 a 14 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Lay-In Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Stranded/Solid |
| Max. Conductor Size | 1/0 AWG Stranded/Solid |
| Stud Size | 1/4 in |
| Material | Tin-Plated Aluminum |
| Length | 1-1/2 in |
| Width | 1.17 in |
| Standards | CSA Certified, UL Listed |
| Screw Material | Steel |
| Body Material | Aluminum |
| Head Style | Slotted |
| Length (Straight Wireway) | 1-1/2 in |
| Number of Conductors | 1 |
| Hole Diameter | 0.28 in |
| Screw Finish | Zinc Plated |
| Torque | 50 in-lb |
| Tongue Width | 0.63 in |
| Contact Finish | Tin |
| Maximum Operating Temperature | 194 deg F |
| Special Features | Easy Installation, Provides Low Contact Resistance |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Overall Length | 1-1/2 in |
| Overall Depth | 5/8 in |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Tongue Length | 0.8 in |
| Maximum Voltage | 600 V |
| Overall Width | 1.17 in |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| For Conductor Material | Copper, Aluminum |
| Tongue Thickness | 0.19 in |
| For Stud Size | 1/4 in |
| Type | BGBL, Lay-In |
| Temperature Rating | 194 |
| Dimension - Hole Size inch | 0.28 in |
| Installation Torque Recommended in-lb | 50 LBS/in |
| Dimension - Length Overall inch | 1-1/2 in |
| Plating Type | Tin |
| Conductor - AL Str Size | 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG |
| Hex Size | Slot |
| Certification - UL Listed Direct Burial | No |
| UL Listed | Yes |
| Conductor - Copper Str Size Range | 14 AWG-1/0 |
| Dimension - L Length Overall mm | 38 mm |
| Physical Attribute - Screw Type | Slot |
| Conductor Type | AL C Str-SizeCU C Str-SizeCU C Solid-Size |
| Dimension - Height fraction | 1-1/6 in |
| Certification - CSA Approved | Yes |
| Dimension - Hole Size mm | 7 mm |
| Dimension - D inch | 0.8 in |
| Voltage - Maximum | 600 V |
| Conductor - AL Str Size Range | 8 AWG-1/0 AWG |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 |
| Conductor - Copper Solid Size | 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG |
| Dimension - Pad Width inch | 0.6 in |
| Industry Standard(s) | UL468A-468B |
| Conductor - Copper Solid Size Range | 14 AWG-1/0 AWG |
| Dimension - N inch | 0.3 in |
| Material Type - Screw | Steel - Zinc Plated |
| Dimension - Height inch | 1.17 in |
| Standards - Industry Standards Met | UL468A-468B |
| Application | For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications |
| Trade Name | QIKLUGâ„¢ |
| Plated | Y |
| Package Quantity | 1 |
