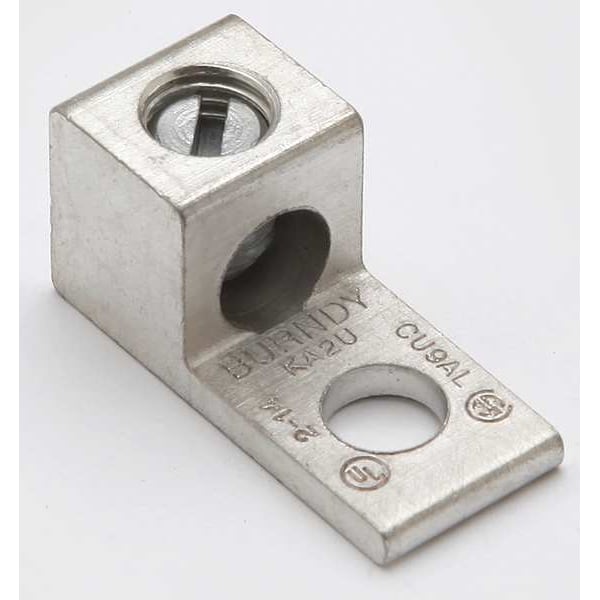

Mechanical Conn, Lug, 2 to 14 AWG, 1 Cond
| Item | Mechanical Connector |
|---|---|
| Connector Type | Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Stranded |
| Max. Conductor Size | 2 AWG Stranded |
| Stud Size | 1/4 in |
| Material | Tin-Plated Aluminum |
| Length | 1.16 in |
| Width | 0.56 in |
| Standards | CSA Certified, UL Listed |
| Head Style | Slotted |
| Body Material | Aluminum |
| Length (Straight Wireway) | 1.16 in |
| Connection Orientation | Dual Rated Lug |
| Special Features | Providing Low Contact Resistance |
| Hole Diameter | 0.27 in |
| Number of Terminations | 1 |
| Maximum Operating Temperature | 194 deg F |
| Maximum Voltage | 600 V |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Hole Spacing | Not Applicable |
| Torque | 50 in-lb |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Number of Conductors | 1 |
| Overall Depth | 1/2 in |
| Contact Finish | Tin |
| For Stud Size | 1/4 in |
| Tongue Length | 0.63 in |
| Tongue Thickness | 0.1 in |
| Overall Length | 1.16 in |
| Overall Width | 0.56 in |
| For Conductor Material | Copper, Aluminum |
| Tongue Width | 0.51 in |
| For Stranded Copper Wire Size - Maximum | 2 AWG |
| Conductor Size | 14-2 AWG |
| Type | Bolted Lugs & Terminals |
| Dimension - Bolt Hole Size inch | 1/4 in |
| Temperature Rating | 194 |
| Physical Attribute - Number of Holes | 1 |
| Dimension - D inch | 0.63 in |
| Conductor Type | CU C Str-SizeAL, Str-Size |
| Application | For Aluminum And Copper Conductors |
| Conductor - AL Str Size | 8;6;4;3;2 |
| Dimension - Length Overall inch | 1.16 in |
| Dimension - Height inch | 0.56 in |
| Dimension - L Length Overall mm | 29 mm |
| Certification - UL Listed Direct Burial | No |
| UL Listed | Yes |
| Plated | Y |
| Dimension - Width mm | 13 mm |
| Industry Standard(s) | UL468A-468B |
| Certification - CSA Approved | No |
| Dimension - Height fraction | 14/25 in |
| Conductor - Copper Str Size | 14;12;10;9;8;7;6;5;4;3;2 |
| Dimension - Hole Size mm | 7 mm |
| Conductor - Copper Str Size Range | 14-2 |
| Physical Attribute - Number of Screws | 1 |
| Dimension - Stud Size inch | 44930 |
| Rating - Minimum Voltage | 600 |
| Conductor - AL Str Size Range | 45140 |
| Material - Hardware | Steel |
| Plating Type | Tin |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - Width inch | 1/2 in |
| Dimension - Pad Width inch | 0.51 in |
| Dimension - Hole Size inch | 0.27 in |
| Installation Torque Recommended in-lb | 50 LBS/in |
| Dimension - N inch | 0.31 in |
| Dimension - Width fraction | 1/2 in |
| Dimension - Bolt Size fraction | 2023-01-04 |
| Physical Attribute - Screw Type | Slot |
| Conductor - Nominal Diameter | 0.184, 0.232, 0.260, 0.206, 0.320, 0.292, 0.072, 0.091, 0.116, 0.130, 0.146, 0.164 |
| Package Quantity | 1 |
