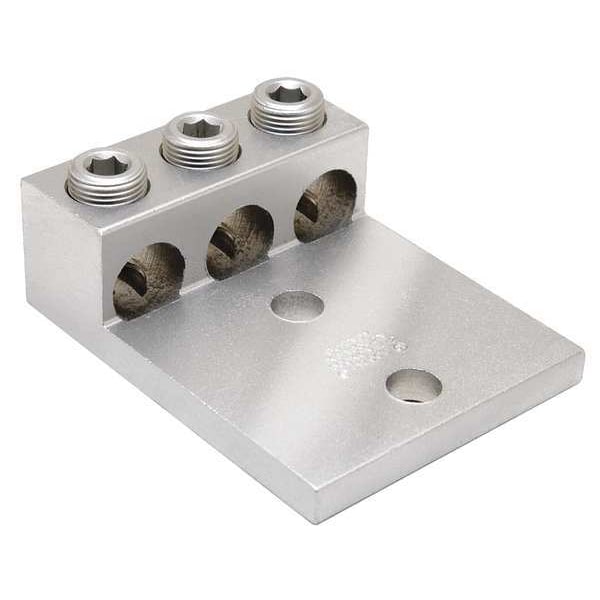

Conector mecánico, tipo orejeta, calibre 2/0 a 14 AWG, 3 conductores.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 3 |
| Min. Conductor Size | 14 AWG Stranded |
| Max. Conductor Size | 2/0 AWG Stranded |
| Stud Size | 1/2 in |
| Material | Tin-Plated Aluminum |
| Length | 3-3/4 in |
| Width | 1.95 in |
| Standards | CSA Certified, UL Listed |
| Head Style | Slotted |
| Body Material | Aluminum |
| Length (Straight Wireway) | 3-3/4 in |
| Hole Spacing | 1-3/4 in |
| Connection Orientation | Dual Rated Lug |
| Tongue Thickness | 0.19 in |
| Tongue Length | 3.06 in |
| Special Features | Providing Low Contact Resistance |
| For Stud Size | 1/2 in |
| Overall Length | 3-3/4 in |
| Number of Terminations | 3 |
| For Conductor Material | Copper, Aluminum |
| Tongue Width | 1.95 in |
| Hole Diameter | 0.56 in |
| Maximum Voltage | 600 V |
| Contact Finish | Tin |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Number of Conductors | 3 |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Maximum Operating Temperature | 194 deg F |
| Overall Width | 1.79 in |
| Torque | 50 in-lb |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| Overall Depth | 2 in |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 14-2/0 AWG |
| Dimension - Stud Size inch | 1/2 in |
| Standards - Industry Standards Met | UL468A-468B |
| Installation Torque Recommended in-lb | 50 LBS/in |
| Certification - CSA Approved | No |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor Type | AL C Str-SizeCU C Str-Size |
| Physical Attribute - Number of Holes | 2 |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - D inch | 3.06 in |
| Dimension - N inch | 0.63 in |
| Temperature Rating | 194 |
| Dimension - Width mm | 50 mm |
| Industry Standard(s) | UL468A-468B |
| Physical Attribute - Screw Type | Slot |
| Application | For Aluminum and Copper Conductors |
| Dimension - Length Overall inch | 3-3/4 in |
| Rating - Minimum Voltage | 600 |
| Dimension - Height fraction | 1.8 in |
| Conductor - AL Str Size | 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG |
| Plated | Y |
| Dimension - L Length Overall mm | 95 mm |
| Dimension - Bolt Size fraction | 1 to 2 |
| Dimension - Hole Size mm | 14 mm |
| Conductor - Copper Str Size Range | 14 Str.-2/0 AWG |
| Conductor - AL Str Size Range | 14 Str.-2/0 AWG |
| Dimension - Pad Width inch | 1.97 in |
| Material - Hardware | Aluminum |
| Dimension - Bolt Hole Size inch | 0.57 in |
| Physical Attribute - Number of Screws | 3 |
| Dimension - Width inch | 1.97 in |
| UL Listed | Yes |
| Certification - UL Listed Direct Burial | No |
| Dimension - Height inch | 1.79 in |
| Dimension - Hole Size fraction | 45,185 |
| Plating Type | Tin |
| Dimension - Width fraction | 1-19/20 in |
| Item Type | 3A |
| Package Quantity | 1 |
