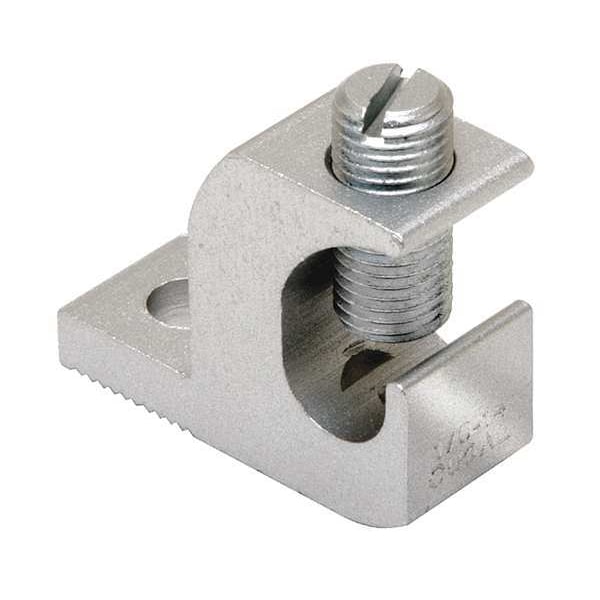

Conector mecánico, aro, 250 kcmil a calibre 6 AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Lay-In Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 6 AWG Stranded/Solid |
| Max. Conductor Size | 250 kcmil Stranded, 4/0 AWG Solid |
| Stud Size | 7/16 in |
| Material | Tin-Plated Aluminum |
| Length | 2.2 in |
| Width | 1.79 in |
| Standards | CSA Certified, UL Listed |
| Head Style | Hex |
| Body Material | Aluminum |
| Screw Material | Steel |
| Length (Straight Wireway) | 2.2 in |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Torque | 180 in-lb |
| Contact Finish | Tin |
| Tongue Thickness | 1/4 in |
| Overall Depth | 13/16 in |
| Number of Conductors | 1 |
| Maximum Voltage | 600 V |
| Hole Diameter | 0.33 in |
| Screw Finish | Zinc Plated |
| Tongue Width | 0.88 in |
| Special Features | Easy Installation, Provides Low Contact Resistance |
| For Stud Size | 7/16 in |
| Tongue Length | 1.18 in |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| Overall Width | 1.79 in |
| For Conductor Material | Copper, Aluminum |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Maximum Operating Temperature | 194 deg F |
| Overall Length | 2.2 in |
| Type | BGBL, Lay-In |
| Dimension - L Length Overall mm | 56 mm |
| UL Listed | Yes |
| Voltage - Maximum | 600 V |
| Installation Torque Recommended in-lb | 180 LBS/in |
| Conductor - Copper Str Size | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Hex Size | 45062 |
| Dimension - Height fraction | 1-4/5 in |
| Standards - Industry Standards Met | UL468A-468B |
| Conductor Type | AL C Str-SizeCU C Str-SizeCU C Solid-Size |
| Trade Name | QIKLUGâ„¢ |
| Dimension - Length Overall inch | 2.2 in |
| Conductor - AL Str Size Range | 6 AWG-250 kcmil |
| Conductor - AL Str Size | 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Plating Type | Tin |
| Dimension - N inch | 0.4 in |
| Conductor - Copper Solid Size Range | 6 AWG-4/0 AWG |
| Material Type - Screw | Steel - Zinc Plated |
| Conductor - Copper Solid Size | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Dimension - Hole Size mm | 8 mm |
| Certification - CSA Approved | Yes |
| Industry Standard(s) | UL468A-468B |
| Dimension - D inch | 1.18 in |
| Plated | Y |
| Dimension - Pad Width inch | 0.8 in |
| Temperature Rating | 194 |
| Dimension - Hole Size inch | 0.33 in |
| Dimension - Height inch | 1.79 in |
| Physical Attribute - Screw Type | Allen |
| Conductor - Copper Str Size Range | 6 AWG-250 kcmil |
| Application | For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications |
| Package Quantity | 1 |
