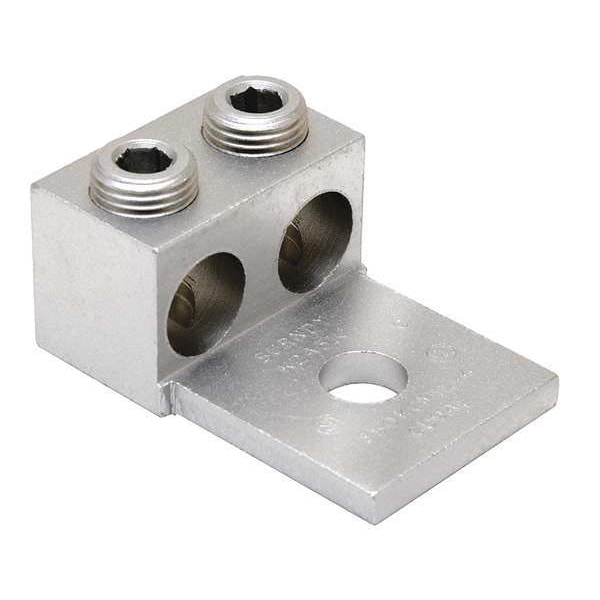

Mechanical Conn, Lug, 250 kcmil to 6 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Lug |
| No. of Conductors | 2 |
| Min. Conductor Size | 6 AWG Stranded |
| Max. Conductor Size | 250 kcmil Stranded |
| Stud Size | 3/8 in |
| Material | Tin-Plated Aluminum |
| Length | 2.56 in |
| Width | 1.66 in |
| Standards | CSA Certified, UL Listed |
| Head Style | Slotted |
| Body Material | Aluminum |
| Length (Straight Wireway) | 2.56 in |
| Tongue Width | 1.66 in |
| Number of Conductors | 2 |
| Maximum Voltage | 600 V |
| Overall Length | 2.56 in |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Overall Depth | 1-11/16 in |
| Connection Orientation | Dual Rated Lug |
| Special Features | Providing Low Contact Resistance |
| Overall Width | 1.2 in |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Contact Finish | Tin |
| Tongue Thickness | 1/4 in |
| Tongue Length | 1-1/2 in |
| Hole Diameter | 0.4 in |
| Maximum Operating Temperature | 194 deg F |
| Torque | 275 in-lb |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| For Stud Size | 3/8 in |
| Hole Spacing | Not Applicable |
| For Conductor Material | Copper, Aluminum |
| Number of Terminations | 2 |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 6 AWG-250 KCMIL |
| Dimension - Hole Size mm | 10 mm |
| Conductor - AL Str Size Range | 6 Str.- 250 Kcmil |
| Temperature Rating | 194 |
| Application | For Aluminum And Copper Conductors |
| Dimension - Stud Size inch | 3/8 in |
| Item Type | 3A |
| Plated | N |
| Material - Hardware | Aluminum |
| Physical Attribute - Screw Type | Slot |
| Certification - CSA Approved | No |
| UL Listed | Yes |
| Dimension - Width mm | 42 mm |
| Dimension - Width fraction | 1-33/50 in |
| Dimension - L Length Overall mm | 65 mm |
| Installation Torque Recommended in-lb | 275 LBS/in |
| Dimension - Screw Size inch | 44,993 |
| Dimension - Height fraction | 1.2 in |
| Plating Type | Tin |
| Dimension - Width inch | 1.66 in |
| Conductor - Copper Str Size | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Dimension - D inch | 1-1/2 in |
| Rating - Minimum Voltage | 600 |
| Dimension - N inch | 1/2 in |
| Dimension - Bolt Hole Size inch | 0.38 in |
| Dimension - Bolt Size fraction | 2023-03-08 |
| Conductor Type | AL C Str-SizeCU C Str-Size |
| Conductor - AL Str Size | 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - Length Overall inch | 2.56 in |
| Hardware Type | 3/8 UNC Slotted Set Screw |
| Dimension - Hole Size inch | 0.4 in |
| Industry Standard(s) | UL468A-468B |
| Dimension - Height inch | 1.2 in |
| Dimension - Pad Width inch | 1.66 in |
| Conductor - Copper Str Size Range | 6 Str.- 250 Kcmil |
| Physical Attribute - Number of Holes | 1 |
| Certification - UL Listed Direct Burial | No |
| Package Quantity | 1 |
