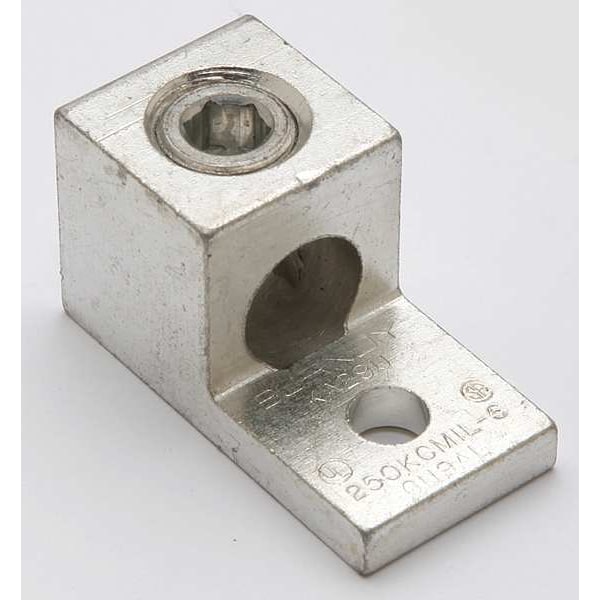

Mechanical Conn, Lug, 250 kcmil to 6 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 6 AWG Stranded |
| Max. Conductor Size | 250 kcmil Stranded |
| Stud Size | 5/16 in |
| Material | Tin-Plated Aluminum |
| Length | 2 in |
| Width | 1.14 in |
| Standards | CSA Certified, UL Listed |
| Head Style | Hex |
| Body Material | Aluminum |
| Length (Straight Wireway) | 2 in |
| Connection Orientation | Dual Rated Lug |
| Maximum Operating Temperature | 194 deg F |
| Number of Conductors | 1 |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| Contact Finish | Tin |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Hole Spacing | Not Applicable |
| Number of Terminations | 1 |
| Tongue Length | 0.94 in |
| Tongue Thickness | 1/4 in |
| For Stud Size | 5/16 in |
| Tongue Width | 1.02 in |
| Maximum Voltage | 600 V |
| Hole Diameter | 0.33 in |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Overall Length | 2 in |
| Overall Width | 1.14 in |
| For Conductor Material | Copper, Aluminum |
| Overall Depth | 1-1/16 in |
| Special Features | Providing Low Contact Resistance |
| Torque | 275 in-lb |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 6 AWG-250 KCMIL |
| Installation Torque Recommended in-lb | 275 LBS/in |
| Material - Hardware | Aluminum |
| Certification - CSA Approved | No |
| Dimension - Height inch | 1.14 in |
| Temperature Rating | 194 |
| Dimension - Width mm | 25 mm |
| Physical Attribute - Screw Type | Allen |
| Dimension - Width inch | 1 in |
| Dimension - D inch | 0.94 in |
| Conductor - Copper Str Size Range | 6-250 |
| Physical Attribute - Number of Screws | 1 |
| Dimension - Hole Size mm | 8 mm |
| Dimension - Pad Width inch | 1.02 in |
| Dimension - N inch | 0.47 in |
| Conductor - AL Str Size | 6;4;3;2;1;1/0;2/0;3/0;4/0;250 |
| Industry Standard(s) | UL468A-468B |
| Dimension - Length Overall inch | 2 in |
| Dimension - Hole Size inch | 0.33 in |
| Physical Attribute - Number of Holes | 1 |
| UL Listed | Yes |
| Conductor - Copper Str Size | 6;5;4;3;2;1;1/0;2/0;3/0;4/0;250 |
| Conductor - Nominal Diameter | 0.184, 0.232, 0.260, 0.206, 0.320, 0.292, 0.328, 0.360, 0.368, 0.390, 0.414, 0.438, 0.464, 0.492, 0.522, 0.528, 0.574, 0.600 |
| Conductor - AL Str Size Range | 6-250 |
| Plating Type | Tin |
| Plated | Y |
| Dimension - Stud Size inch | 45062 |
| Dimension - Bolt Size fraction | 2023-05-16 |
| Conductor Type | AL C Str-SizeCU C Str-SizeCU C Solid-Size |
| Application | For Aluminum And Copper Conductors |
| Certification - UL Listed Direct Burial | No |
| Dimension - Height fraction | 1.14 in |
| Dimension - Bolt Hole Size inch | 0.31 in |
| Dimension - L Length Overall mm | 51 mm |
| Standards - Industry Standards Met | UL468A-468B |
| Package Quantity | 1 |
