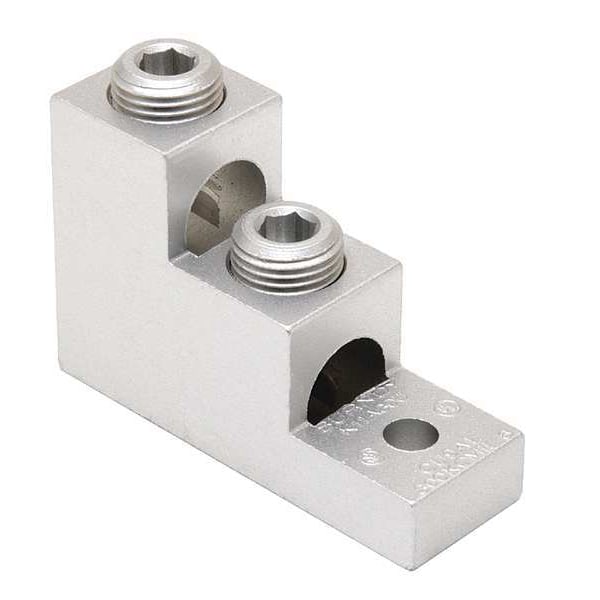

Mechanical Conn, Lug, 300 kcmil to 6 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 2 |
| Min. Conductor Size | 4 AWG Solid, 6 AWG Stranded |
| Max. Conductor Size | 300 kcmil Stranded, 4/0 AWG Solid |
| Stud Size | 5/16 in |
| Material | Tin-Plated Aluminum |
| Length | 3 in |
| Width | 1 in |
| No. of Holes | 2 |
| Standards | CSA Certified, UL Listed |
| Head Style | Hex |
| Body Material | Aluminum |
| Length (Straight Wireway) | 3 in |
| Torque | 275 in-lb |
| Overall Width | 2.03 in |
| Tongue Width | 1 in |
| Tongue Thickness | 0.31 in |
| Connection Orientation | Dual Rated Lug |
| Hole Diameter | 0.33 in |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Hole Spacing | Not Applicable |
| For Conductor Material | Copper, Aluminum |
| For Stranded Copper Wire Size - Maximum | 300 kcmil |
| Tongue Length | 0.94 in |
| Special Features | Providing Low Contact Resistance |
| Maximum Voltage | 600 V |
| Number of Terminations | 2 |
| Contact Finish | Tin |
| Overall Depth | 1-1/16 in |
| Maximum Operating Temperature | 194 deg F |
| For Stud Size | 5/16 in |
| Number of Conductors | 2 |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Overall Length | 3 in |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 6 AWG-300 KCMIL |
| Conductor - AL Str Size Range | 6 Str.- 300 Kcmil |
| UL Listed | Yes |
| Dimension - Pad Width inch | 1.02 in |
| Dimension - Bolt Hole Size inch | 0.31 in |
| Physical Attribute - Number of Holes | 1 |
| Conductor Type | AL C Str-SizeCU C Str-SizeCU C Solid-Size |
| Dimension - Screw Size inch | 45,246 |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - Width inch | 1.02 in |
| Certification - UL Listed Direct Burial | No |
| Hex Key | 44989 |
| Conductor - Copper Solid Size | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Dimension - L Length Overall mm | 76 mm |
| Plated | Y |
| Conductor - Copper Str Size Range | 6 Str.- 300 Kcmil |
| Dimension - Length Overall inch | 3 in |
| Dimension - Hole Size inch | 0.33 in |
| Rating - Minimum Voltage | 600 |
| Physical Attribute - Screw Type | Allen |
| Application | For Aluminum And Copper Conductors |
| Temperature Rating | 194 |
| Material - Hardware | Aluminum |
| Dimension - D inch | 0.94 in |
| Installation Torque Recommended in-lb | 275 LBS/in |
| Conductor - AL Str Size | 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil |
| Dimension - N inch | 0.47 in |
| Dimension - Stud Size fraction | 45,062 |
| Dimension - Hole Size mm | 8 mm |
| Dimension - Bolt Size fraction | 45062 |
| Conductor - Copper Solid Size Range | 4 AWG-4/0 AWG |
| Item Type | 3A |
| Dimension - Height inch | 2.03 in |
| Conductor - Copper Str Size | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil |
| Dimension - Width mm | 25 mm |
| Dimension - Height fraction | 2 in |
| Plating Type | Tin |
| Certification - CSA Approved | No |
| Industry Standard(s) | UL468A-468B |
| Dimension - Thread Size | 5/16 in |
| Dimension - Stud Size inch | 5/16 in |
| Package Quantity | 1 |
