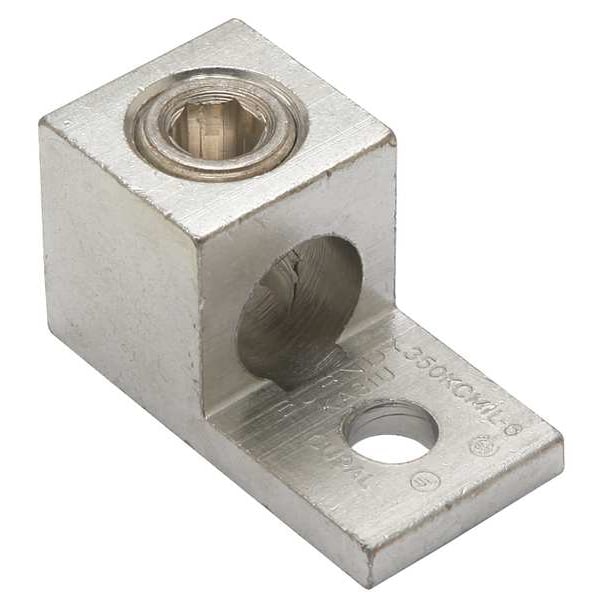

Mechanical Conn, Lug, 350 kcmil to 6 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 6 AWG Stranded |
| Max. Conductor Size | 350 kcmil Stranded |
| Stud Size | 3/8 in |
| Material | Tin-Plated Aluminum |
| Length | 2-1/4 in |
| Width | 1.27 in |
| Standards | CSA Certified, UL Listed |
| Body Material | Aluminum |
| Head Style | Hex |
| Length (Straight Wireway) | 2-1/4 in |
| Torque | 275 in-lb |
| Hole Spacing | Not Applicable |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Maximum Voltage | 600 V |
| Tongue Thickness | 1/4 in |
| Overall Depth | 1-1/8 in |
| Number of Terminations | 1 |
| Hole Diameter | 0.42 in |
| Number of Conductors | 1 |
| Overall Length | 2-1/4 in |
| Tongue Length | 1.03 in |
| Special Features | Providing Low Contact Resistance |
| Connection Orientation | Dual Rated Lug |
| Maximum Operating Temperature | 194 deg F |
| Overall Width | 1.27 in |
| For Stud Size | 3/8 in |
| For Stranded Copper Wire Size - Maximum | 350 kcmil |
| For Conductor Material | Copper, Aluminum |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Contact Finish | Tin |
| Tongue Width | 1.14 in |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 6 AWG-350 KCMIL |
| Conductor Type | CU C Str-SizeAL, Str-Size |
| Dimension - Width mm | 29 mm |
| Dimension - Pad Width inch | 1.14 in |
| Temperature Rating | 194 |
| Dimension - Hole Size inch | 0.42 in |
| Certification - UL Listed Direct Burial | No |
| Dimension - Bolt Hole Size inch | 0.38 in |
| Dimension - D inch | 1.03 in |
| Dimension - Stud Size inch | 44993 |
| Conductor - Copper Str Size | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil |
| Conductor - Copper Str Size Range | 6 AWG-350 kcmil |
| Dimension - Width inch | 1.13 in |
| Dimension - Width fraction | 1.13 in |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
| Dimension - Length Overall inch | 2-1/4 in |
| Dimension - Hole Size mm | 11 mm |
| Industry Standard(s) | UL468A-468B |
| Dimension - Bolt Size fraction | 2023-03-08 |
| Physical Attribute - Screw Type | Allen |
| Installation Torque Recommended in-lb | 275 LBS/in |
| Material - Hardware | Aluminum |
| Dimension - Height fraction | 1.2702702702702702 in |
| Dimension - Height inch | 1.27 in |
| Dimension - N inch | 0.52 in |
| Certification - CSA Approved | No |
| Physical Attribute - Number of Holes | 1 |
| Dimension - L Length Overall mm | 57 mm |
| Conductor - AL Str Size Range | 6 AWG-350 kcmil |
| Plating Type | Tin |
| Conductor - AL Str Size | 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil |
| Plated | Y |
| Physical Attribute - Number of Screws | 1 |
| Application | For Aluminum And Copper Conductors |
| Package Quantity | 1 |
