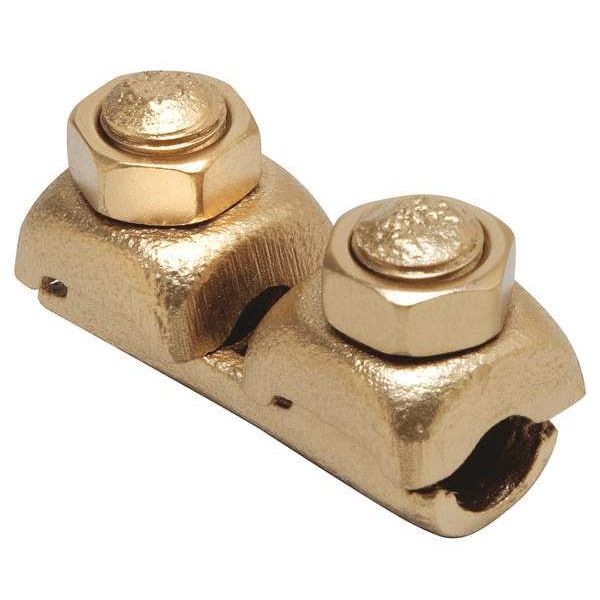

Conexión mecánica, empalme, 2 cables conductores, calibre 1 a 4 AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Splice/Reducer |
| No. of Conductors | 2 |
| Min. Conductor Size | 4 AWG Stranded/Solid |
| Max. Conductor Size | 1 AWG Stranded/Solid |
| Material | Copper |
| Length | 1.94 in |
| Width | 1.06 in |
| Standards | UL Listed |
| Head Style | Hex |
| Body Material | Copper |
| Length (Straight Wireway) | 1.94 in |
| Compatible with Product Type | Copper Cable |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| Number of Conductors | 2 |
| Torque | 150 in-lb |
| Tongue Thickness | Not Applicable |
| Overall Width | 1.06 in |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Maximum | 1 AWG |
| Tongue Width | Not Applicable |
| Number of Terminations | 2 |
| Maximum Voltage | 600 V |
| Overall Length | 1.94 in |
| Contact Finish | Unplated |
| Hole Spacing | Not Applicable |
| For Stud Size | Not Applicable |
| Overall Depth | 11/16 in |
| Hole Diameter | Not Applicable |
| Maximum Operating Temperature | 194 deg F |
| Special Features | Compact Easy To Tape Installation, One-Wrench Installation |
| Type | QR |
| Dimension - Height fraction | 1-1/16 in |
| Application | For Joining A Range Of Copper Cable End To End |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Standards - Industry Standards Met | UL468A-468B |
| Conductor - Copper Solid Size B | 4 AWG;3 AWG;2 AWG;1 AWG |
| Dimension - Width fraction | 11/16 in |
| Conductor - Copper Str Size A Range | 4 AWG-1 AWG |
| Dimension - Length Overall inch | 1.94 in |
| Conductor - Copper Solid Size B Range | 4 AWG-1 AWG |
| Dimension - B Length fraction | 7/8 in |
| Dimension - Width mm | 18 mm |
| Conductor - Copper Str Size A | 4 AWG;3 AWG;2 AWG;1 AWG |
| Industry Standard(s) | UL468A-468B |
| Conductor - Copper Solid Size A Range | 4 AWG-1 AWG |
| Conductor - Copper Solid Size A | 4 AWG;3 AWG;2 AWG;1 AWG |
| Installation Torque Recommended in-lb | 150 LBS/in |
| UL Listed | Yes |
| Plating Type | Unplated |
| Conductor - Copper Str Size B | 4 AWG;3 AWG;2 AWG;1 AWG |
| Physical Attribute - Number of Screws | 2 |
| Certification - CSA Approved | No |
| Dimension - B Length inch | 0.88 in |
| Dimension - Width inch | 0.69 in |
| Conductor - Copper Str Size B Range | 4 AWG-1 AWG |
| Dimension - Height inch | 1.06 in |
| Dimension - L Length Overall mm | 49 mm |
| Plated | N |
| Package Quantity | 1 |
