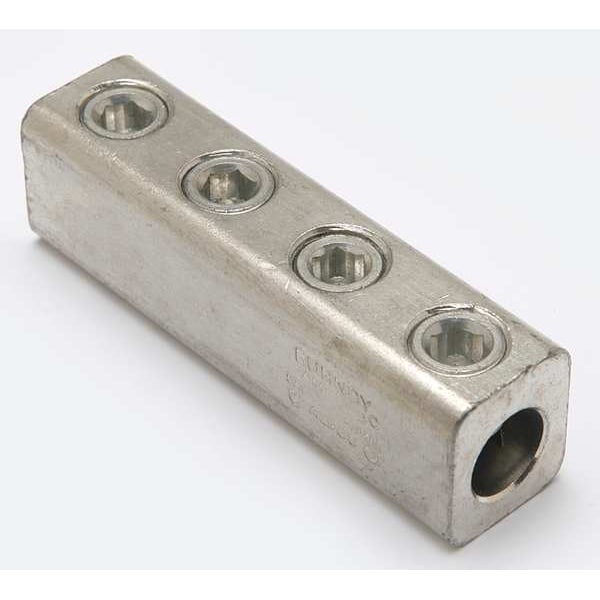

Conector mecánico, unión, 250 kcmil a 6AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Splice/Reducer |
| No. of Conductors | 2 |
| Min. Conductor Size | 6 AWG Stranded |
| Max. Conductor Size | 250 kcmil Solid |
| Material | Tin-Plated Aluminum |
| Length | 4.09 in |
| Width | 1.09 in |
| Standards | CSA Certified, UL Listed |
| Head Style | Hex |
| Body Material | Aluminum |
| Length (Straight Wireway) | 4.09 in |
| Connection Orientation | Dual Rated Splice, Reducer |
| For Conductor Material | Copper, Aluminum |
| Number of Conductors | 2 |
| Special Features | Connectors Feature Rounded Bottoms, Large Cable Ranges, Large Screw Diameters, Prevents Contact Of Dissimilar Metals, Provide Low Contact Resistance And Prevents Galvanic Corrosion |
| Maximum Operating Temperature | 194 deg F |
| Overall Length | 4.09 in |
| Contact Finish | Tin |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| For Stud Size | 5/8 in |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Tongue Thickness | Not Applicable |
| Maximum Voltage | 600 V |
| Overall Width | 1.09 in |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Hole Spacing | Not Applicable |
| Hole Diameter | Not Applicable |
| Torque | 50 in-lb |
| Color | Bare |
| Overall Depth | 1 in |
| Number of Terminations | 4 |
| Tongue Width | Not Applicable |
| Conductor Size | 6 AWG-250 KCMIL |
| Type | AMS, Dual Rated |
| Conductor - AL Str Run Range | 6 AWG-250 kcmil |
| Conductor - Copper Solid Run | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Certification - CSA Approved | Yes |
| Dimension - Width mm | 25 mm |
| Dimension - Height fraction | 11691 |
| Material - Hardware | Aluminum |
| Hex Size | 45062 |
| Conductor - Copper Solid Run Range | 6 AWG-4/0 AWG |
| Physical Attribute - Screw Type | Allen |
| Conductor - Copper Solid Tap Range | 6 AWG-4/0 AWG |
| Industry Standard(s) | UL467 |
| Conductor - Copper Solid Size | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Standards - Industry Standards Met | UL467 |
| Conductor - Copper Str Size Range | 6 AWG-250 kcmil |
| Plated | Y |
| Conductor - Copper Str Size | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Certification - UL Listed Direct Burial | No |
| Plating Type | Tin |
| Conductor - Copper Str Tap | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - AL Str Size Range | 6 AWG-4/0 AWG |
| Physical Attribute - Number of Screws | 4 |
| UL Listed | Yes |
| Conductor - Copper Solid Size Range | 4 AWG-4/0 AWG |
| Conductor - Copper Str Tap Range | 6 AWG-250 kcmil |
| Conductor - AL Str Run | 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - AL Str Tap Range | 6 AWG-250 kcmil |
| Dimension - H1 Height inch | 1.09 in |
| Installation Torque Recommended in-lb | 50 LBS/in |
| Temperature Rating | 194° F |
| Conductor - AL Str Size | 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Dimension - Width fraction | 1 in |
| Rating - Minimum Voltage | 600 |
| Dimension - L Length Overall mm | 104 mm |
| Conductor - Copper Solid Tap | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Str Run Range | 6 AWG-250 kcmil |
| Dimension - Width inch | 1 in |
| Dimension - Length Overall inch | 4.09 in |
| Conductor - Copper Str Run | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - AL Str Tap | 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Application | For Use With Copper And Aluminum Conductors |
| Package Quantity | 1 |
