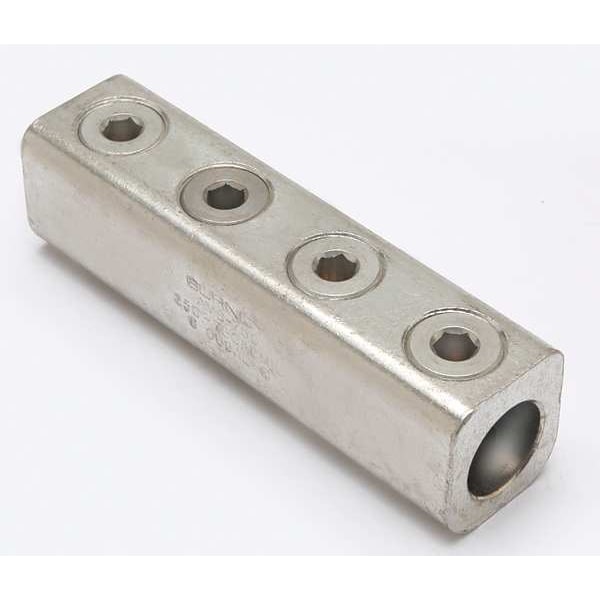

Conexión mecánica, empalme, de 750 a 250 kcmil.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Splice/Reducer |
| No. of Conductors | 4 |
| Min. Conductor Size | 250 kcmil Stranded |
| Max. Conductor Size | 750 kcmil Stranded |
| Stud Size | 15/16 in |
| Material | Tin-Plated Aluminum |
| Length | 6.06 in |
| Width | 1.63 in |
| Standards | ANSI, CSA Certified, UL Listed |
| Body Material | Aluminum |
| Head Style | Hex |
| Length (Straight Wireway) | 6.06 in |
| Hole Diameter | Not Applicable |
| Maximum Operating Temperature | 194 deg F |
| Maximum Voltage | 600 V |
| Number of Conductors | 4 |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Overall Width | 1.63 in |
| For Stranded Copper Wire Size - Maximum | 750 kcmil |
| Overall Length | 6.06 in |
| Connection Orientation | Dual Rated Splice, Reducer |
| Overall Depth | 1-7/16 in |
| Special Features | Connectors Feature Rounded Bottoms, Large Cable Ranges, Large Screw Diameters, Prevents Contact Of Dissimilar Metals, Provide Low Contact Resistance And Prevents Galvanic Corrosion |
| Number of Terminations | 4 |
| Contact Finish | Tin |
| For Stranded Copper Wire Size - Minimum | 250 kcmil |
| Hole Spacing | Not Applicable |
| Tongue Width | Not Applicable |
| For Conductor Material | Copper, Aluminum |
| Torque | 500 in-lb |
| Tongue Thickness | Not Applicable |
| For Stud Size | 15/16 in |
| Color | Bare |
| Type | AMS, Dual Rated |
| Conductor Size | 250-750 KCMIL |
| Depth | 0.56 in |
| Dimension - Length Overall inch | 6.06 in |
| Conductor - AL Str Tap Range | 250 kcmil-750 kcmil |
| Dimension - Height fraction | 39452 |
| Conductor - ACSR Cmpt Size | 900 kcmil |
| Certification - CSA Approved | Yes |
| Dimension - Width fraction | 1-7/16 in |
| Conductor - Copper Str Compact Size | 900 kcmil |
| Conductor - AL Str Tap | 250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil |
| Physical Attribute - Number of Screws | 4 |
| Standards - Industry Standards Met | UL467 |
| Temperature Rating | 194° F |
| Conductor - AL Str Run Range | 250 kcmil-750 kcmil |
| Plated | Y |
| Conductor - ACSR Str Size | 750 kcmil |
| UL Listed | Yes |
| Conductor - Copper Str Size Range | 250 kcmil-750 kcmil |
| Dimension - Width mm | 37 mm |
| Conductor - Copper Str Tap Range | 250 kcmil-750 kcmil |
| Conductor - Copper Str Run Range | 250 kcmil-750 kcmil |
| Material - Hardware | Aluminum |
| Industry Standard(s) | UL467 |
| Physical Attribute - Screw Type | Allen |
| Conductor - AL Str Size Range | 250 kcmil-750 kcmil |
| Dimension - L Length Overall mm | 154 mm |
| Die Size | Kearney 11/2Burndy 301 |
| Rating - Minimum Voltage | 600 |
| Hex Size | 44928 |
| Dimension - Width inch | 1.44 in |
| Plating Type | Tin |
| Dimension - H1 Height inch | 1.63 in |
| Conductor - Copper Str Size | 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil |
| Certification - UL Listed Direct Burial | No |
| Conductor - Copper Str Run | 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil |
| Conductor - Copper Str Tap | 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil |
| Conductor - AL Str Size | 250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil |
| Installation Torque Recommended in-lb | 500 LBS/in |
| Application | For Use With Copper And Aluminum Conductors |
| Conductor - AL Str Run | 250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil |
| Package Quantity | 1 |
