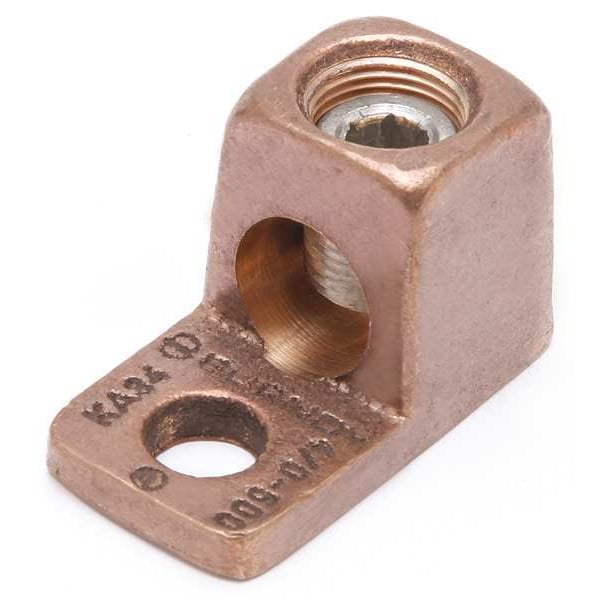

Mechanical Conn, Terminal, 1/0 to 4 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 4 AWG Stranded |
| Max. Conductor Size | 1/0 AWG Stranded |
| Stud Size | 3/8 in |
| Material | Copper |
| Length | 1.69 in |
| Width | 0.94 in |
| Standards | UL Listed |
| Head Style | Hex |
| Body Material | Copper |
| Length (Straight Wireway) | 1.69 in |
| Tongue Thickness | 0.13 in |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Number of Conductors | 1 |
| Hole Diameter | 0.42 in |
| Overall Length | 1.69 in |
| Special Features | Economical, Joining A Wide Range Of Cable |
| Tongue Width | 3/4 in |
| Maximum Operating Temperature | 194 deg F |
| Hole Spacing | Not Applicable |
| Contact Finish | Unplated |
| For Conductor Material | Copper |
| Maximum Voltage | 600 V |
| Overall Depth | 3/4 in |
| Number of Terminations | 1 |
| Tongue Length | Not Applicable |
| Torque | 200 in-lb |
| Compatible with Product Type | Copper Cable |
| For Stud Size | 3/8 in |
| Connection Orientation | Compact |
| Overall Width | 0.94 in |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 4-1/0 AWG |
| Dimension - L Length Overall mm | 43 mm |
| Dimension - Length Overall inch | 1.69 in |
| Plating Type | Unplated |
| Installation Torque Recommended in-lb | 200 LBS/in |
| Conductor - Copper Str Size | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 |
| Conductor Type | CU C Str-Size |
| Dimension - Height inch | 0.94 in |
| Temperature Rating | 194° F |
| Dimension - Height fraction | 15/16 |
| Physical Attribute - Number of Screws | 1 |
| Plated | N |
| Dimension - B Length inch | 0.69 in |
| UL Listed | Yes |
| Hardware Type | 1 / 2 " |
| Dimension - Bolt Size fraction | 2023-03-08 |
| Dimension - Hole Size mm | 11 mm |
| Dimension - Hole Size inch | 0.42 in |
| Physical Attribute - Number of Holes | 1 |
| Conductor - Copper Str Size Range | 4 AWG-1/0 |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks |
| Physical Attribute - Screw Type | Allen |
| Trade Name | KA-LUGâ„¢ |
| Certification - CSA Approved | No |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - Stud Size inch | 44993 |
| Dimension - Hole Size fraction | 0.4219 |
| Dimension - Pad Width inch | 3/4 in |
| Industry Standard(s) | UL468A-468B |
| Rating - Minimum Voltage | 600 |
| Dimension - N inch | 0.38 in |
| Dimension - B Length fraction | 20/29 in |
| Package Quantity | 1 |
