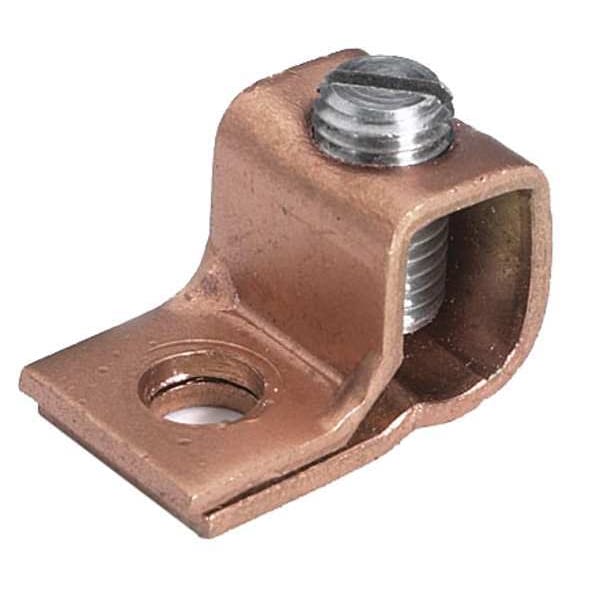

Conector mecánico, Terminal, calibre de 4 a 10 AWG, paquete de 5
| Item | Mechanical Connector |
|---|---|
| Connector Type | Ground Terminal Connector |
| No. of Conductors | 1 |
| Min. Conductor Size | 10 AWG Stranded/Solid |
| Max. Conductor Size | 4 AWG Solid and Stranded |
| Stud Size | #10 |
| Material | Copper |
| Length | 1 in |
| Width | 0.99 in |
| No. of Holes | 1 |
| Standards | UL Listed |
| Screw Material | Steel |
| Body Material | Copper |
| Length (Straight Wireway) | 1 in |
| Number of Conductors | 1 |
| For Stranded Copper Wire Size - Minimum | 10 AWG |
| Overall Width | 0.95 in |
| Hole Spacing | Not Applicable |
| Tongue Length | Not Applicable |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| Overall Length | 0.93 in |
| Contact Finish | Tin |
| Special Features | Continuous Conductor Runs, Direct Burial Applications In Earth Or Concrete |
| Overall Depth | 5/8 in |
| Tongue Width | 0.61 in |
| For Conductor Material | Copper |
| Compatible with Product Type | Grounding Equipments |
| For Stud Size | #10 |
| Screw Finish | Stainless |
| Torque | 45 in-lb |
| Type | KPB |
| Installation Torque Recommended in-lb | 45 LBS/in |
| Standards - Industry Standards Met | UL467UL 486A-B |
| Conductor - Copper Solid Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Industry Standard(s) | UL467UL 486A-B |
| Dimension - B Length inch | 0.61 in |
| Application | For Direct Burial In Earth Or Concrete |
| Conductor - Copper Str Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Material Type - Screw | Steel - Stainless |
| UL Listed | Yes |
| Conductor Type | CU C Str-Size |
| Dimension - Height inch | 0.95 in |
| Plating Type | Tin |
| Dimension - Width inch | 0.99 in |
| Certification - UL Listed Direct Burial | Yes |
| Dimension - Width fraction | 1 in |
| Plated | N |
| Package Quantity | 5 |
