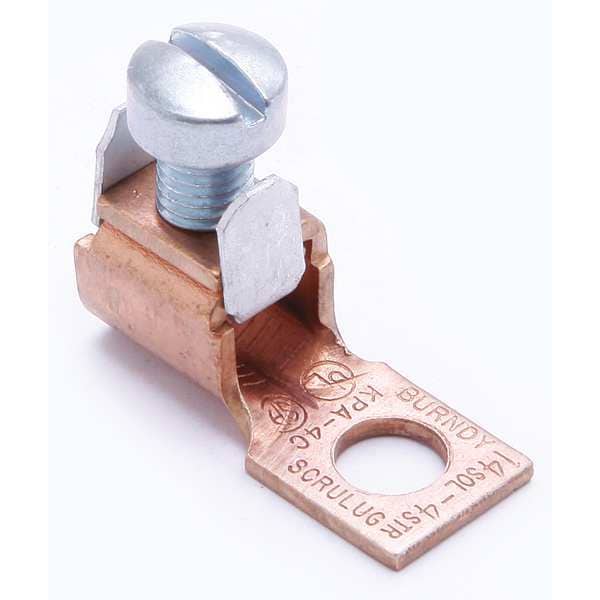

Conexión mecánica, terminal, de 4 a 14 AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Stranded/Solid |
| Max. Conductor Size | 4 AWG Stranded/Solid |
| Stud Size | 1/4 in |
| Material | Copper |
| Length | 1.21 in |
| Width | 0.94 in |
| Standards | CSA Certified, UL Listed |
| Body Material | Copper |
| Head Style | Slotted |
| Length (Straight Wireway) | 1.21 in |
| Connection Orientation | Compact |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Tongue Length | 0.59 in |
| Maximum Operating Temperature | 194 deg F |
| Tongue Width | 1/2 in |
| Maximum Voltage | 600 V |
| Overall Length | 1.22 in |
| Overall Width | 0.94 in |
| Compatible with Product Type | Cable |
| Hole Diameter | 0.27 in |
| Torque | 35 in-lb |
| Tongue Thickness | 0.06 in |
| Number of Conductors | 1 |
| Contact Finish | Unplated |
| Overall Depth | 1/2 in |
| Hole Spacing | Not Applicable |
| Special Features | One Piece Design, Pressure Bar |
| For Stud Size | 1/4 in |
| For Conductor Material | Copper |
| Number of Pieces | 1 |
| Number of Terminations | 1 |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 14-4 AWG |
| Physical Attribute - Screw Type | Slot |
| Application | For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications |
| Physical Attribute - Number of Screws | 1 |
| Plated | N |
| Dimension - Height inch | 0.94 in |
| Dimension - Bolt Size fraction | 2023-01-04 |
| Certification - CSA Approved | No |
| Physical Attribute - Number of Holes | 1 |
| Conductor Type | CU C Str-SizeCU C Solid-Size |
| Dimension - Stud Size inch | 44930 |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Dimension - Width mm | 11 mm |
| Dimension - L Length Overall mm | 31 |
| Trade Name | SCRULUGâ„¢ |
| Dimension - Pad Width inch | 1/2 in |
| Plating Type | Unplated |
| Conductor - Copper Str Navy Size Range | 23 (7) Navy-40 (19) Navy |
| Industry Standard(s) | UL468A-468B |
| Dimension - Width inch | 0.42 in |
| Dimension - D inch | 0.59 in |
| Conductor - Copper Str Size Range | 14 AWG-4 AWG |
| Dimension - N inch | 0.3 in |
| Conductor - Copper Solid Size Range | 14 AWG-4 AWG |
| Dimension - Height fraction | 47/50 in |
| Certification - UL Listed Direct Burial | No |
| Standards - Industry Standards Met | UL468A-468B |
| Conductor - Copper Str Navy Size | 23 (7) Navy;30 (19) Navy;40 (19) Navy |
| Dimension - Hole Size mm | 7 mm |
| Installation Torque Recommended in-lb | 35 |
| UL Listed | Yes |
| Dimension - Hole Size inch | 0.27 in |
| Conductor - Copper Solid Size | 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Dimension - Length Overall inch | 1.22 |
| Package Quantity | 1 |
