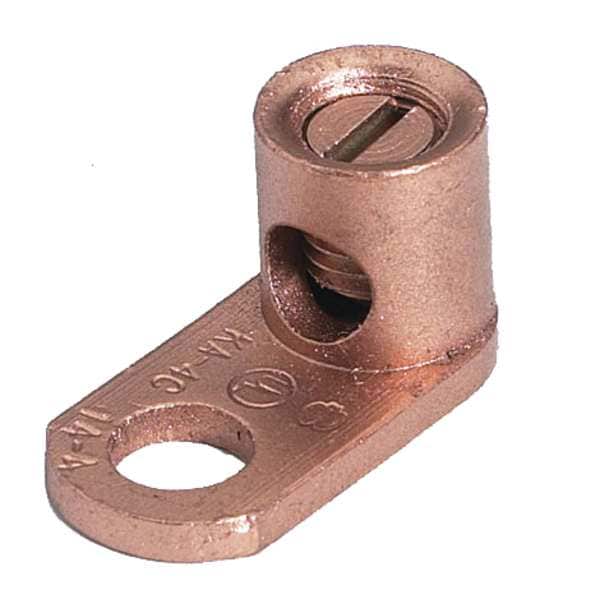

Conector mecánico, terminal, calibre 4 a 14 AWG, paquete de 5.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Ground Terminal Connector |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Stranded/Solid |
| Max. Conductor Size | 4 AWG Solid/Stranded |
| Material | Copper |
| Length | 1.13 in |
| Width | 0.71 in |
| Standards | UL Listed |
| Body Material | Copper |
| Head Style | Slotted |
| Screw Material | Steel |
| Length (Straight Wireway) | 1.13 in |
| Hole Diameter | 0.28 in |
| Special Features | Direct Burial Applications In Earth Or Concrete, One-Piece Forged Body |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Overall Width | 0.71 in |
| Connection Orientation | Compact |
| Number of Conductors | 1 |
| Includes | (1) Stainless Screw |
| Tongue Length | Not Applicable |
| Torque | 45 in-lb |
| Compatible with Product Type | Grounding Equipments |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| For Conductor Material | Copper |
| Overall Length | 1.13 in |
| Contact Finish | Unplated |
| For Stud Size | 5/16 in |
| Overall Depth | 9/16 in |
| Tongue Width | 0.54 in |
| Screw Finish | Stainless |
| Type | GKA |
| Conductor Type | CU C Str-SizeCU C Solid-Size |
| Physical Attribute - Screw Type | Slot |
| Standards - Industry Standards Met | UL467 |
| Dimension - Hole Size inch | 0.28 in |
| Material Type - Screw | Steel - Stainless |
| Plated | N |
| Dimension - L Length Overall mm | 29 mm |
| Conductor - Copper Str Size Range | 14 AWG-4 AWG |
| Conductor - Copper Solid Size Range | 14 AWG-4 AWG |
| Conductor - Copper Solid Size | 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Certification - UL Listed Direct Burial | Yes |
| Dimension - B Length inch | 0.46 in |
| Application | For Direct Burial Applications In Earth Or Concrete |
| Plating Type | Unplated |
| Dimension - Length Overall inch | 1.13 in |
| UL Listed | Yes |
| Dimension - N inch | 1/4 in |
| Installation Torque Recommended in-lb | 45 LBS/in |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Height inch | 0.71 in |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Certification - CSA Approved | No |
| Industry Standard(s) | UL467 |
| Dimension - Pad Width inch | 0.54 in |
| Package Quantity | 5 |
