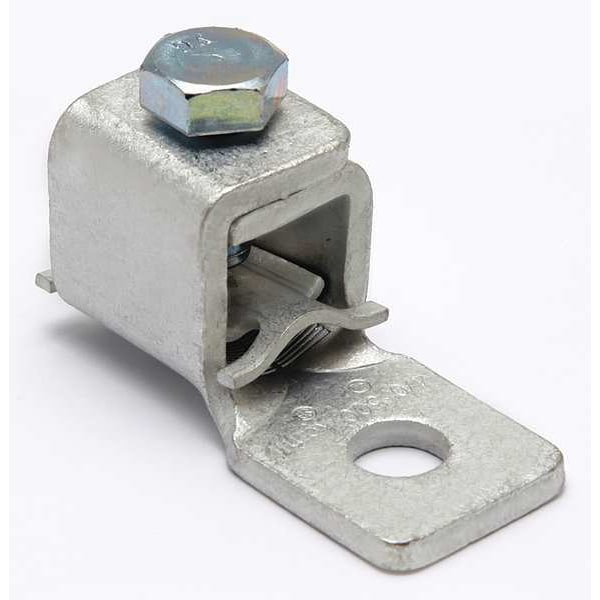

Conexión mecánica, terminal, calibre 4/0 a 1/0 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 1/0 AWG Stranded |
| Max. Conductor Size | 4/0 AWG Stranded |
| Stud Size | 3/8 in |
| Material | Copper |
| Length | 2.3 in |
| Width | 1.66 in |
| Standards | CSA Certified, UL Listed |
| Body Material | Copper |
| Head Style | Hex |
| Length (Straight Wireway) | 2.3 in |
| Number of Conductors | 1 |
| For Stranded Copper Wire Size - Maximum | 4/0 AWG |
| Number of Terminations | 1 |
| For Stranded Copper Wire Size - Minimum | 1/0 AWG |
| Tongue Width | 1 in |
| Compatible with Product Type | Cable |
| For Stud Size | 3/8 in |
| Tongue Thickness | 0.13 in |
| Connection Orientation | Compact |
| Hole Spacing | Not Applicable |
| Overall Width | 1.66 in |
| Overall Depth | 1 in |
| Special Features | One Piece Design, Pressure Bar |
| Contact Finish | Tin |
| Overall Length | 2.4 in |
| Hole Diameter | 0.39 in |
| Number of Pieces | 1 |
| Maximum Operating Temperature | 194 deg F |
| For Conductor Material | Copper |
| Tongue Length | 1.12 in |
| Torque | 250 in-lb |
| Maximum Voltage | 600 V |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 1/0-4/0 AWG |
| Dimension - Length Overall inch | 2.4 in |
| Dimension - Hole Size inch | 0.39 in |
| Conductor - Copper Str Size | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG |
| Trade Name | SCRULUGâ„¢ |
| Standards - Industry Standards Met | UL468A-468B |
| Physical Attribute - Number of Holes | 1 |
| Conductor - Copper Str Navy Size Range | 125 (61) Navy-150 (61) Navy |
| Dimension - Bolt Size fraction | 2023-03-08 |
| Conductor Type | CU C Str-SizeCU C Navy-Size |
| Application | For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications |
| Industry Standard(s) | UL468A-468B |
| Conductor - Copper Str Size Range | 1/0 -4/0 AWG |
| Certification - UL Listed Direct Burial | No |
| Plated | Y |
| Plating Type | Tin |
| Dimension - Height inch | 1.66 in |
| Dimension - Hole Size mm | 10 mm |
| Dimension - L Length Overall mm | 61 mm |
| Dimension - Pad Width inch | 0.97 in |
| Installation Torque Recommended in-lb | 250 |
| Conductor - Copper Str Navy Size | 125 (61) Navy;150 (61) Navy |
| Dimension - Stud Size inch | 44993 |
| Certification - CSA Approved | No |
| Dimension - Height fraction | 1-21/32 in |
| Dimension - N inch | 0.53 in |
| Dimension - D inch | 1.12 in |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Physical Attribute - Number of Screws | 1 |
| UL Listed | Yes |
| Package Quantity | 1 |
