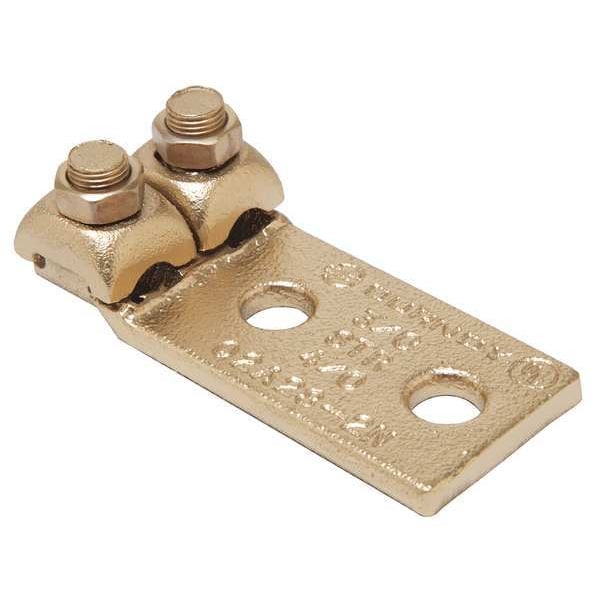

Mechanical Conn, Terminal, 4/0 to 3/0 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 2 |
| Min. Conductor Size | 3/0 AWG Stranded |
| Max. Conductor Size | 4/0 AWG Stranded |
| Stud Size | 1/2 in |
| Material | Copper |
| Length | 4.38 in |
| Width | 1.94 in |
| Standards | UL Listed |
| Body Material | Copper |
| Head Style | Hex |
| Length (Straight Wireway) | 4.38 in |
| For Stranded Copper Wire Size - Maximum | 4/0 AWG |
| Overall Width | 1.31 in |
| Compatible with Product Type | Copper Cable |
| Connection Orientation | Compact |
| Overall Length | 4.31 in |
| Special Features | Accommodates a Wide Range of Cable |
| For Conductor Material | Copper |
| Hole Spacing | 0.69 in |
| Number of Terminations | 2 |
| Tongue Thickness | 1/4 in |
| Overall Depth | 2-1/8 in |
| Torque | 250 in-lb |
| Number of Conductors | 2 |
| For Stranded Copper Wire Size - Minimum | 3/0 AWG |
| Hole Diameter | 0.56 in |
| Tongue Length | 3.09 in |
| Maximum Voltage | 600 V |
| Contact Finish | Unplated |
| Maximum Operating Temperature | 194 deg F |
| For Stud Size | 1/2 in |
| Tongue Width | 1.88 in |
| Conductor Size | 3/0-4/0 AWG |
| Type | Bolted Lugs & Terminals |
| Trade Name | QIKLUGâ„¢ |
| Temperature Rating | 194 |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - B Length inch | 1.06 in |
| Dimension - D inch | 3.09 in |
| Dimension - Height fraction | 1-3/8 in |
| Conductor Type | CU C Str-Size |
| Dimension - Hole Size inch | 0.56 in |
| Certification - UL Listed Direct Burial | No |
| UL Listed | Yes |
| Dimension - Stud Size inch | 44928 |
| Dimension - Length Overall inch | 4.31 in |
| Dimension - L Length Overall mm | 111 mm |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Industry Standard(s) | UL468A-468B |
| Dimension - N inch | 0.63 in |
| Dimension - Pad Width inch | 2.12 in |
| Conductor - Copper Str Size | 3/0 AWG;4/0 AWG |
| Physical Attribute - Number of Holes | 2 |
| Dimension - Width mm | 54 mm |
| Installation Torque Recommended in-lb | 250 LBS/in |
| Plating Type | Unplated |
| Dimension - Hole Size mm | 14 mm |
| Rating - Minimum Voltage | 600 |
| Plated | N |
| Dimension - Hole Size fraction | 45,185 |
| Dimension - Width inch | 2.12 in |
| Dimension - Width fraction | 1-15/16 in |
| Dimension - F Width Center to Center inch | 0.69 in |
| Conductor - Copper Str Size Range | 3/0 AWG-4/0 AWG |
| Dimension - Bolt Size fraction | 1 to 2 |
| Physical Attribute - Number of Screws | 2 |
| Certification - CSA Approved | No |
| Application | For Copper Cable |
| Dimension - Height inch | 1.31 in |
| Package Quantity | 1 |
