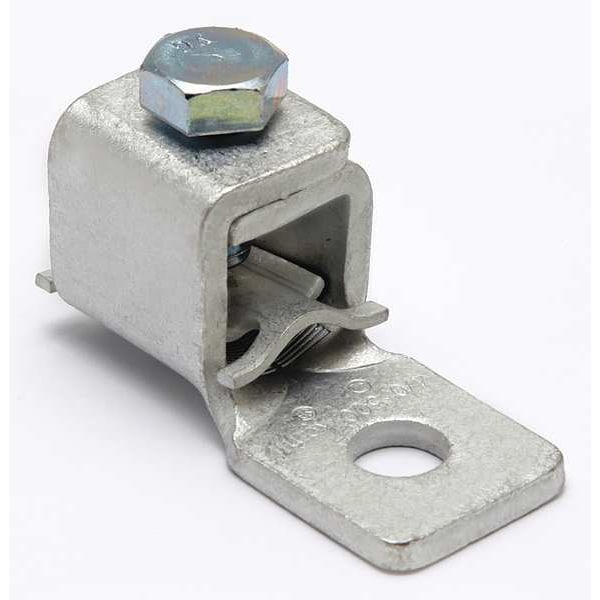

Conector mecánico, terminal, de 8 a 14 calibres.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Stranded/Solid |
| Max. Conductor Size | 8 AWG Stranded/Solid |
| Stud Size | 0.1 in |
| Material | Copper |
| Length | 0.95 in |
| Width | 0.72 in |
| Standards | CSA Certified, UL Listed |
| Head Style | Slotted |
| Body Material | Copper |
| Length (Straight Wireway) | 0.95 in |
| Maximum Voltage | 600 V |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Overall Width | 0.72 in |
| For Conductor Material | Copper |
| Special Features | One Piece Design, Pressure Bar |
| Overall Depth | 3/8 in |
| Tongue Width | 0.38 in |
| For Stranded Copper Wire Size - Maximum | 8 AWG |
| Maximum Operating Temperature | 194 deg F |
| Number of Conductors | 1 |
| Overall Length | 0.97 in |
| Compatible with Product Type | Copper Cable |
| Tongue Thickness | 0.06 in |
| Connection Orientation | Compact |
| Number of Terminations | 1 |
| Hole Spacing | Not Applicable |
| Contact Finish | Tin |
| Tongue Length | 0.47 in |
| Hole Diameter | 0.21 in |
| Number of Pieces | 1 |
| Torque | 25 in-lb |
| For Stud Size | #10 |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 14-8 AWG |
| Industry Standard(s) | UL468A-468B |
| Dimension - L Length Overall mm | 25 mm |
| Plating Type | Tin |
| Dimension - Height fraction | 18/25 in |
| Dimension - D inch | 0.47 in |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks |
| Conductor - Copper Str Navy Size | 4 (1) Navy;4 (7) Navy;4 (19) Navy;4 (41) Navy;6 (7) Navy;6 (19) Navy;9 (7) Navy;9 (37) Navy;14 (7) Navy;14 (140) Navy |
| Standards - Industry Standards Met | UL468A-468B |
| Trade Name | SCRULUGâ„¢ |
| Dimension - Pad Width inch | 0.38 in |
| Physical Attribute - Screw Type | Slot |
| Certification - UL Listed Direct Burial | No |
| Conductor - Copper Str Navy Size Range | 4 (1) Navy-14 (140) Navy |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG |
| Dimension - Bolt Size fraction | #10 |
| Dimension - Hole Size mm | 5 mm |
| Dimension - N inch | 0.22 in |
| Dimension - Width mm | 10 mm |
| Conductor - Copper Str Size Range | 14 AWG-8 AWG |
| Dimension - Width inch | 0.38 in |
| Plated | Y |
| Certification - CSA Approved | No |
| Dimension - Height inch | 0.72 in |
| Dimension - Stud Size inch | #10 |
| Physical Attribute - Number of Screws | 1 |
| Conductor Type | CU C Str-SizeCU C Solid-Size |
| Dimension - Length Overall inch | 0.97 in |
| Conductor - Copper Solid Size | 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG |
| Physical Attribute - Number of Holes | 1 |
| Conductor - Copper Solid Size Range | 14 AWG-8 AWG |
| Installation Torque Recommended in-lb | 25 LBS/in |
| Dimension - Hole Size inch | 0.21 in |
| UL Listed | Yes |
| Package Quantity | 1 |
