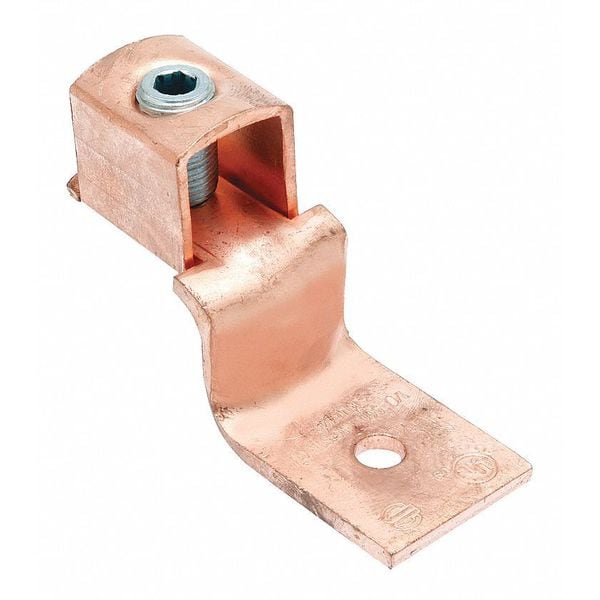

Conector mecánico, terminal, de 2 a 8 AWG, 1 conductor.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 8 AWG Stranded/Solid |
| Max. Conductor Size | 2 AWG Stranded/Solid |
| Stud Size | 1/4 in |
| Material | Copper |
| Length | 1.56 in |
| Width | 0.55 in |
| Standards | cULus Listed, UL Listed |
| Body Material | Copper |
| Head Style | Slotted |
| Length (Straight Wireway) | 1.56 in |
| Maximum Voltage | 600 V |
| Compatible with Product Type | Copper Cable |
| Hole Spacing | Not Applicable |
| For Stud Size | 1/4 in |
| For Stranded Copper Wire Size - Minimum | 8 AWG |
| Overall Depth | 1/2 in |
| Overall Width | 1 in |
| Strip Length | 3/4 in |
| Tongue Length | Not Applicable |
| Tongue Thickness | 0.08 in |
| Overall Length | 1.56 in |
| Special Features | Easy Installation, Long Lasting Reliable Contact |
| For Stranded Copper Wire Size - Maximum | 2 AWG |
| Tongue Width | 1/2 in |
| Hole Diameter | 0.26 in |
| Color | Bare |
| Torque | 40 in-lb |
| Contact Finish | Unplated |
| Number of Conductors | 1 |
| Number of Terminations | 1 |
| For Conductor Material | Copper |
| Maximum Operating Temperature | 194 deg F |
| Connection Orientation | Offset Tang |
| Conductor Size | 8-2 AWG |
| Type | Bolted Lugs & Terminals |
| Dimension - Hole Size inch | 0.26 in |
| Plating Type | Unplated |
| Industry Standard(s) | UL467 |
| Trade Name | SCRULUGâ„¢ |
| Dimension - Stud Size inch | 44930 |
| Conductor - Copper Solid Size | 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Certification - cULus | Yes |
| UL Listed | No |
| Installation Torque Recommended in-lb | 40 |
| Conductor - Copper Str Size Range | 8 AWG-2 AWG |
| Dimension - Bolt Size fraction | 2023-01-04 |
| Dimension - Screw Size inch | 45,062 |
| Certification - UL Listed Direct Burial | No |
| Conductor - Copper Str Size | 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Hardware Type | 5/16 UNF Slotted SetScrew |
| Dimension - Strip Length inch | 44,989 |
| Plated | N |
| Dimension - B Length inch | 1/2 in |
| Conductor Type | CU C Solid-SizeCU C Str-Size |
| Dimension - B Length fraction | 1/2 in |
| Certification - CSA Approved | No |
| Dimension - Length Overall inch | 1.55 in |
| Physical Attribute - Screw Type | Slot |
| Dimension - Hole Size mm | 7 mm |
| Dimension - L Length Overall mm | 39 mm |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Pad Width inch | 0.47 in |
| Physical Attribute - Number of Screws | 1 |
| Dimension - N inch | 1/4 in |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar |
| Standards - Industry Standards Met | UL467 |
| Conductor - Copper Solid Size Range | 8 AWG-2 AWG |
| Package Quantity | 1 |
