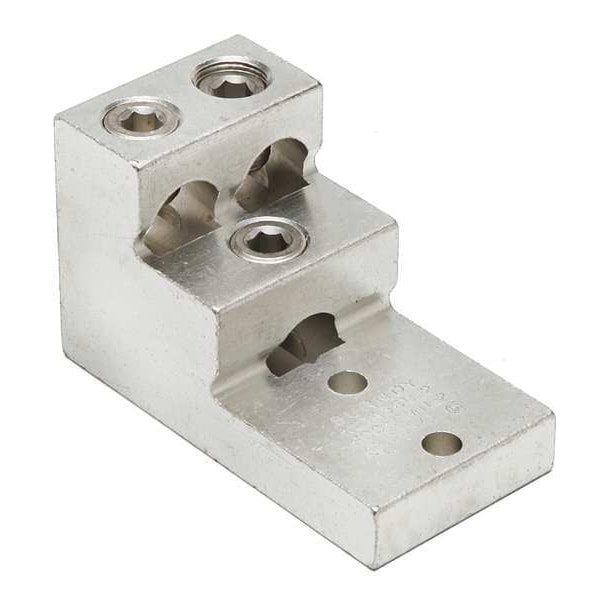

Mechanicl Conn, 600 kcmil to 2 AWG, 3 Cond
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 3 |
| Min. Conductor Size | 2 AWG Stranded |
| Max. Conductor Size | 600 kcmil Stranded |
| Stud Size | 3/8 in |
| Material | Tin-Plated Aluminum |
| Length | 4.91 in |
| Width | 3.03 in |
| Standards | CSA Certified, UL Listed |
| Head Style | Hex |
| Body Material | Aluminum |
| Length (Straight Wireway) | 4.91 in |
| Number of Conductors | 3 |
| Number of Terminations | 3 |
| Tongue Width | 2-1/2 in |
| Hole Spacing | 1-3/4 in |
| Overall Depth | 2-1/2 in |
| For Conductor Material | Copper, Aluminum |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Tongue Length | 2.31 in |
| Torque | 375 in-lb |
| Contact Finish | Tin |
| Connection Orientation | Dual Rated Lug |
| Tongue Thickness | 3/4 in |
| For Stranded Copper Wire Size - Minimum | 2 AWG |
| Hole Diameter | 0.41 in |
| Special Features | Providing Low Contact Resistance |
| For Stud Size | 3/8 in |
| Overall Width | 3.03 in |
| Overall Length | 4.91 in |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 194 deg F |
| For Stranded Copper Wire Size - Maximum | 600 kcmil |
| Type | Bolted Lugs & Terminals |
| Rating - Minimum Voltage | 600 |
| Temperature Rating | 194 |
| Dimension - Hole Size mm | 10 mm |
| Installation Torque Recommended in-lb | 375 LBS/in |
| Conductor - Copper Str Size | 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil |
| Physical Attribute - Number of Holes | 2 |
| Dimension - Width fraction | 2-1/2 in |
| Conductor - AL Str Size | 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil |
| Dimension - Width inch | 2-1/2 in |
| Standards - Industry Standards Met | UL468A-468B |
| Conductor Type | AL C Str-SizeCU C Str-Size |
| Industry Standard(s) | UL468A-468B |
| Certification - CSA Approved | No |
| Dimension - L Length Overall mm | 125 mm |
| Dimension - Stud Size inch | 3/8 in |
| Dimension - N inch | 0.38 in |
| Dimension - Bolt Hole Size inch | 0.38 in |
| Dimension - D inch | 2.31 in |
| Dimension - Width mm | 64 mm |
| Plated | Y |
| Plating Type | Tin |
| Dimension - Length Overall inch | 4.91 in |
| Dimension - Bolt Size fraction | 2023-03-08 |
| Physical Attribute - Number of Screws | 3 |
| UL Listed | Yes |
| Physical Attribute - Screw Type | Allen |
| Material - Hardware | Aluminum |
| Dimension - Height fraction | 3 in |
| Dimension - Pad Width inch | 2.49 in |
| Conductor - AL Str Size Range | 2 Str. - 600 Kcmil |
| Application | For Aluminum and Copper Conductors |
| Dimension - Height inch | 3.03 in |
| Dimension - Hole Size inch | 0.41 in |
| Item Type | 3A |
| Conductor - Copper Str Size Range | 2 Str. - 600 Kcmil |
| Certification - UL Listed Direct Burial | No |
| Package Quantity | 1 |
