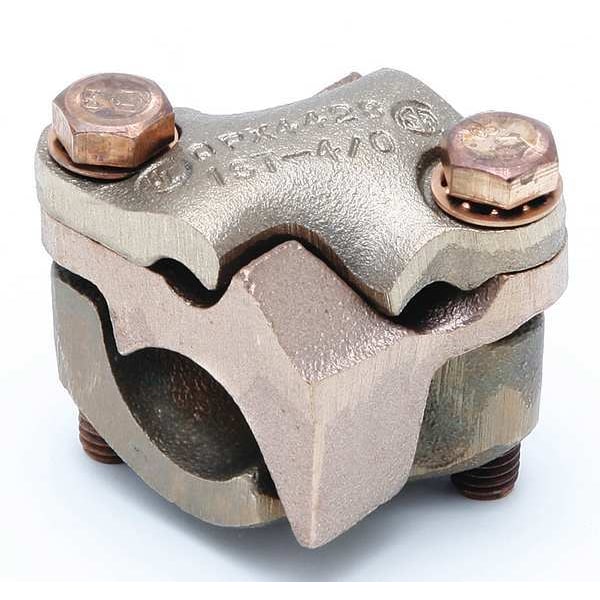

Conexión mecánica, abrazadera, de calibre 4/0 a 1 AWG, 2 conductores.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Parallel Clamp |
| No. of Conductors | 2 |
| Min. Conductor Size | 1 AWG (Run) Stranded, 6 AWG (Tap) |
| Max. Conductor Size | 2 AWG (Tap), 4/0 AWG (Run) Stranded |
| Stud Size | 5/16 in |
| Material | Copper |
| Length | 2 in |
| Width | 1.57 in |
| Standards | UL Listed |
| Head Style | Hex |
| Body Material | Copper |
| Length (Straight Wireway) | 2 in |
| Compatible with Product Type | Copper Cable |
| For Stranded Copper Wire Size - Maximum | 1 AWG |
| Number of Terminations | 2 |
| Tongue Thickness | Not Applicable |
| Tongue Width | Not Applicable |
| Overall Depth | 1-9/16 in |
| For Stud Size | 5/16 in |
| Connection Orientation | Parallel Clamp |
| Maximum Operating Temperature | 194 deg F |
| Hole Spacing | Not Applicable |
| Torque | 180 in-lb |
| Maximum Voltage | 600 V |
| Hole Diameter | Not Applicable |
| Contact Finish | Unplated |
| Overall Width | 2.06 in |
| Number of Conductors | 2 |
| For Conductor Material | Copper |
| Overall Length | 1.31 in |
| For Stranded Copper Wire Size - Minimum | 2 AWG |
| Special Features | Edges Are Rounded For Easy Taping, For Tee, Cross, Parallel, Butt And Tap Connections, Range-Taking |
| Type | QPX |
| Conductor - Copper Str Run | 1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG |
| Standards - Industry Standards Met | UL486C |
| Dimension - Height fraction | 42401 |
| Conductor - CopperWeld Str Run Range | 3 A AWG-3/0 V AWG |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plated | N |
| Item Type | 3B |
| Conductor - CopperWeld Str Tap | 8 A AWG;8 C AWG;8 D AWG;7 A AWG;7 D AWG;6 A AWG;6 C AWG;6 D AWG;5 A AWG;5 D AWG;5 P AWG;4 A AWG |
| UL Listed | Yes |
| Dimension - Width inch | 1.56 |
| Conductor - CopperWeld Solid Tap | 5 AWG |
| Temperature Rating | 194 |
| Certification - UL Listed Direct Burial | No |
| Conductor - CopperWeld Str Tap Range | 8 A AWG-4 A AWG |
| Conductor - CopperWeld Solid Tap Range | 5 AWG |
| Conductor - CopperWeld Solid Run | 9 AWG;8 AWG;7 AWG;6 AWG;5 AWG |
| Conductor - Copper Str Tap Range | 6 AWG-2 AWG |
| Physical Attribute - Number of Screws | 2 |
| Rating - Minimum Voltage | 600 |
| Conductor - CopperWeld Str Run | 3 A AWG;3 J AWG;3 K AWG;3 N AWG;3 P AWG;2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG;1 F AWG;1 G AWG;1 J AWG;1 K AWG;1 N AWG;1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG;2/0 F AWG;2/0 G AWG;2/0 J AWG;2/0 K AWG;2/0 V AWG;3/0 E AWG;3/0 EK AWG;3/0 F AWG;3/0 G AWG;3/0 J AWG;3/0 V AWG |
| Trade Name | VERSITAPâ„¢ |
| Dimension - Width mm | 40 mm |
| Installation Torque Recommended in-lb | 180 LBS/in |
| Industry Standard(s) | UL486C |
| Dimension - L Length Overall mm | 33 mm |
| Dimension - Width fraction | 1-9/16 in |
| Dimension - Height inch | 2.06 |
| Dimension - Length Overall inch | 1.31 in |
| Conductor - Copper Str Tap | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Conductor - CopperWeld Solid Run Range | 9 AWG-5 AWG |
| Application | For Tee, Cross, Parallel, Butt And Tap Connections, Copper, Copperweld And Copperweld-Copper |
| Conductor Type | CU C Str-RunCU Weld C Str-RunCU Weld C Solid-RunCU C Str-TapCU Weld C Str-TapCU Weld C Solid-Tap |
| Certification - CSA Approved | No |
| Plating Type | Unplated |
| Material - Hardware | DURIUMâ„¢ Silicon Bronze |
| Conductor - Copper Str Run Range | 1 AWG-4/0 AWG |
| Package Quantity | 1 |
