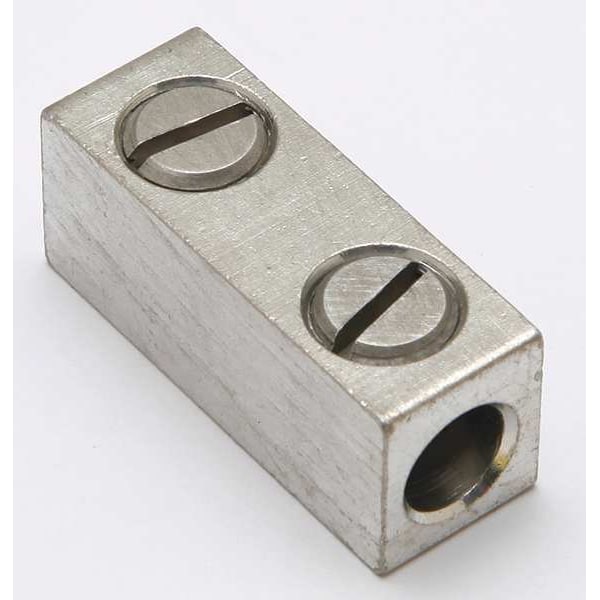

Conector mecánico, empalme, 2 conductores, 2 a 14 AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Splice/Reducer |
| No. of Conductors | 2 |
| Min. Conductor Size | 14 AWG Stranded |
| Max. Conductor Size | 2 AWG Solid and Stranded |
| Material | Tin-Plated Aluminum |
| Length | 1.59 in |
| Width | 0.56 in |
| Standards | ANSI, CSA Certified, UL Listed |
| Body Material | Aluminum |
| Head Style | Slotted |
| Length (Straight Wireway) | 1.59 in |
| Overall Depth | 9/16 in |
| Special Features | Connectors Feature Rounded Bottoms, Large Cable Ranges, Large Screw Diameters, Prevents Contact Of Dissimilar Metals, Provide Low Contact Resistance And Prevents Galvanic Corrosion |
| Tongue Thickness | Not Applicable |
| Tongue Width | Not Applicable |
| Number of Conductors | 2 |
| For Conductor Material | Copper, Aluminum |
| Contact Finish | Tin |
| For Stud Size | 3/8 in |
| Color | Bare |
| Torque | 50 in-lb |
| Overall Length | 1.59 in |
| Number of Terminations | 2 |
| Hole Spacing | Not Applicable |
| For Stranded Copper Wire Size - Maximum | 2 AWG |
| Compatible with Product Type | Aluminum Cable, Copper Cable |
| Connection Orientation | Dual Rated Splice, Reducer |
| Overall Width | 0.56 in |
| Hole Diameter | Not Applicable |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 194 deg F |
| Conductor Size | 14-2 AWG |
| Type | AMS, Dual Rated |
| Conductor - AL Str Run | 12 AWG;10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG |
| Standards - Industry Standards Met | UL467 |
| Hex Size | Slot |
| Depth | 0.56 in |
| Dimension - Width mm | 14 mm |
| Conductor - ACSR Cmpt Size | 2 AWG |
| Dimension - Length Overall inch | 1.59 in |
| Conductor - Copper Solid Run | 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Conductor - AL Str Size | 12 AWG;10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG |
| Conductor - Copper Str Compact Size | 2 AWG |
| Conductor - Copper Str Tap Range | 14 AWG-2 AWG |
| Certification - UL Listed Direct Burial | No |
| Certification - CSA Approved | Yes |
| Conductor - Copper Solid Size Range | 12 AWG-2 AWG |
| Conductor - Copper Str Run Range | 14 AWG-2 AWG |
| Conductor - ACSR Str Size | 2 AWG-1 AWG |
| Conductor - Copper Solid Tap Range | 14 AWG-2 AWG |
| Plated | Y |
| Conductor - Copper Solid Size | 12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Physical Attribute - Screw Type | Slot |
| Physical Attribute - Number of Screws | 2 |
| Conductor - Copper Str Run | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Conductor - AL Str Run Range | 12 AWG-2 AWG |
| Application | For Use With Copper And Aluminum Conductors |
| Temperature Rating | 194° F |
| Conductor - AL Str Tap Range | 12 AWG-2 AWG |
| Conductor - AL Str Size Range | 12 AWG-2 AWG |
| Conductor - AL Str Tap | 12 AWG;10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG |
| Conductor - Copper Solid Tap | 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Dimension - H1 Height inch | 0.56 in |
| Dimension - L Length Overall mm | 40 mm |
| Material - Hardware | Aluminum |
| Die Size | EEI 11ABurndy WK840Burndy 249Kearney 840T&B TXT&B 76 |
| Dimension - Width inch | 0.56 in |
| Dimension - Height fraction | 45185 |
| UL Listed | Yes |
| Installation Torque Recommended in-lb | 50 LBS/in |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Str Tap | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Plating Type | Tin |
| Industry Standard(s) | UL467 |
| Dimension - Width fraction | 9/16 in |
| Conductor - Copper Solid Run Range | 14 AWG-2 AWG |
| Conductor - Copper Str Size Range | 14 AWG-2 AWG |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Package Quantity | 1 |
