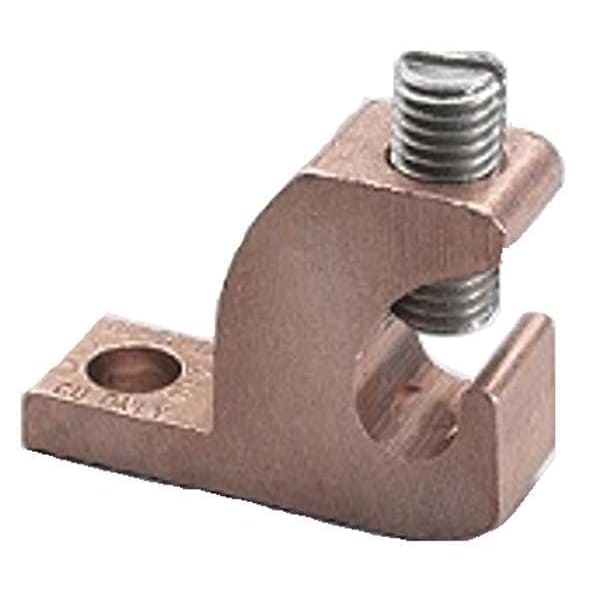

Conector mecánico, terminal, de calibre 4 a 14, paquete con 10 unidades.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Lay-In Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Stranded/Solid |
| Max. Conductor Size | 4 AWG Solid/Stranded |
| Stud Size | #10 |
| Material | Copper |
| Length | 1.13 in |
| Width | 0.85 in |
| Standards | CSA Certified, UL Listed |
| No. of Holes | 1 |
| Screw Material | Stainless Steel |
| Body Material | Copper |
| Head Style | Slotted |
| Length (Straight Wireway) | 1.13 in |
| Overall Width | 0.85 in |
| Tongue Width | 0.38 in |
| Special Features | Direct Burial Applications In Earth Or Concrete, Open Faced Design |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Compatible with Product Type | Grounding Equipments |
| Tongue Length | 0.47 in |
| Hole Spacing | Not Applicable |
| For Conductor Material | Copper |
| Number of Conductors | 1 |
| Contact Finish | Tin |
| Tongue Thickness | 0.15 in |
| Overall Depth | 13/16 in |
| Overall Length | 1.13 in |
| Hole Diameter | 0.22 in |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| For Stud Size | #10 |
| Type | Open-Faced |
| Trade Name | QIKLUG |
| Industry Standard(s) | UL467 |
| Application | For Direct Burial Applications In Concrete Or Earth, For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking, For Solar Panel Grounding |
| Dimension - Hole Size inch | 0.22 in |
| Conductor - Copper Str Size Range | 14 AWG-4 AWG |
| Dimension - Hole Size mm | 6 mm |
| Certification - CSA Approved | Yes |
| Dimension - Width inch | 0.38 in |
| Dimension - Height inch | 0.85 in |
| Dimension - D inch | 0.47 in |
| Conductor Type | CU C Str-Size |
| Dimension - Width mm | 10 mm |
| Dimension - Stud Size inch | 17/64 |
| Conductor - Copper Solid Size | 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Dimension - Length Overall inch | 1.13 in |
| Conductor - Copper Solid Size Range | 14 AWG-4 AWG |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| UL Listed | Yes |
| Dimension - L Length Overall mm | 29 mm |
| Dimension - N inch | 0.19 in |
| Standards - Industry Standards Met | UL467 |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Material - Hardware | Stainless Steel |
| Certification - UL Listed Direct Burial | Y |
| Package Quantity | 10 |
