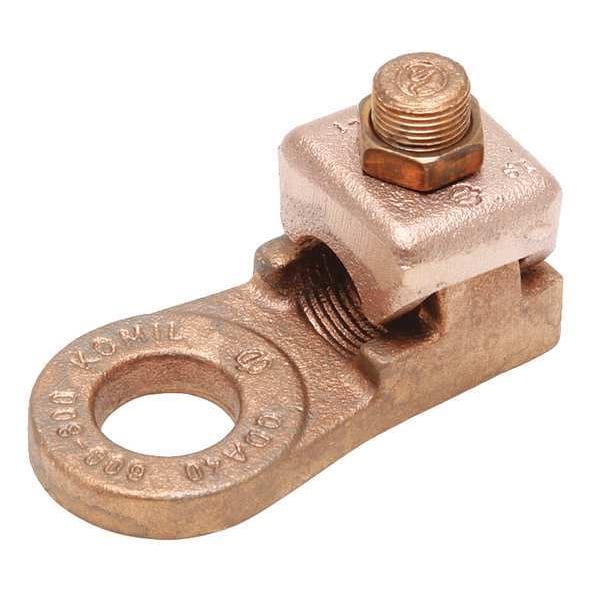

Mechanicl Conn, Terminl, 1 to 4 AWG, 1 Cond
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 4 AWG Stranded |
| Max. Conductor Size | 1 AWG Stranded |
| Stud Size | 3/8 in |
| Material | Copper |
| Length | 2.19 in |
| Width | 1 in |
| Standards | UL Listed |
| Head Style | Hex |
| Body Material | Copper |
| Length (Straight Wireway) | 2.19 in |
| Torque | 150 in-lb |
| Hole Spacing | Not Applicable |
| Overall Depth | 1 in |
| Tongue Length | Not Applicable |
| Connection Orientation | Compact |
| Number of Terminations | 1 |
| Overall Length | 2.19 in |
| Number of Conductors | 1 |
| Contact Finish | Unplated |
| For Stranded Copper Wire Size - Maximum | 1 AWG |
| For Stud Size | 3/8 in |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 194 deg F |
| Tongue Width | 1 in |
| Special Features | Low Contact Resistance When Gripped Between Two Contact Nuts, One Wrench Installation |
| Overall Width | 1 in |
| Hole Diameter | 0.44 in |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| Tongue Thickness | 0.28 in |
| Compatible with Product Type | Copper Cable |
| For Conductor Material | Copper |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 4-1 AWG |
| Conductor - Copper Str Size Range | 4 AWG-1 AWG |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Dimension - Width inch | 1 in |
| Conductor Type | CU C Str-SizeCU C Navy-Size |
| Trade Name | QIKLUGâ„¢ |
| UL Listed | Yes |
| Dimension - Length Overall inch | 2.19 in |
| Physical Attribute - Number of Screws | 1 |
| Industry Standard(s) | UL468A-468B |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Studs |
| Dimension - Width mm | 25 mm |
| Dimension - Hole Size fraction | 45,123 |
| Dimension - L Length Overall mm | 56 mm |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Pad Width inch | 1 in |
| Dimension - Hole Size inch | 0.44 in |
| Dimension - Stud Size inch | 44993 |
| Dimension - Height inch | 1 in |
| Conductor - Copper Str Navy Size Range | 50 (19) Navy-75 (37) Navy |
| Conductor - Copper Str Size | 4 AWG;3 AWG;2 AWG;1 AWG |
| Certification - CSA Approved | No |
| Dimension - Bolt Size fraction | 2023-03-08 |
| Dimension - Hole Size mm | 11 mm |
| Plating Type | Unplated |
| Dimension - Cross Flats inch | 0.56 in |
| Plated | N |
| Installation Torque Recommended in-lb | 150 LBS/in |
| Standards - Industry Standards Met | UL468A-468B |
| Conductor - Copper Str Navy Size | 50 (19) Navy;60 (37) Navy;75 (37) Navy |
| Package Quantity | 1 |
