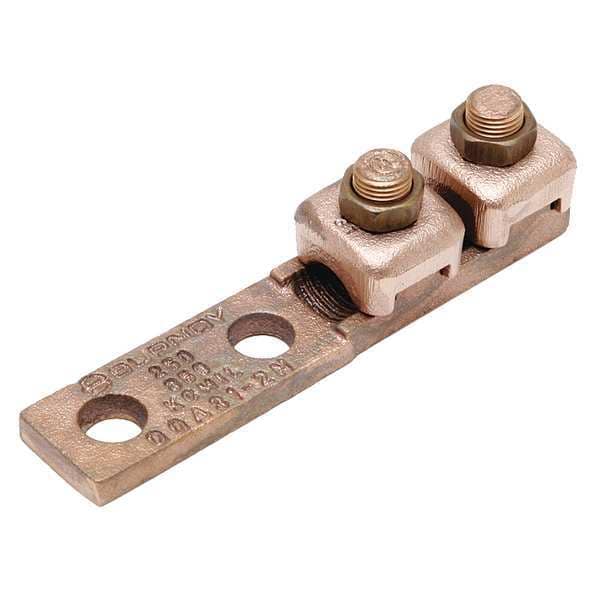

Conector mecánico, terminal, 1 a 4 AWG, 1 conductor.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 4 AWG Stranded |
| Max. Conductor Size | 1 AWG Stranded |
| Stud Size | 5/16 in |
| Material | Copper |
| Length | 3.63 in |
| Width | 1 in |
| Standards | UL Listed |
| Head Style | Hex |
| Body Material | Copper |
| Length (Straight Wireway) | 3.63 in |
| Torque | 150 in-lb |
| Tongue Length | 1.56 in |
| Special Features | One-Wrench Installation, Twin Clamping Elements Secure Joint Vibration And Flexing |
| Tongue Thickness | 0.22 in |
| Compatible with Product Type | Copper Cable |
| Maximum Voltage | 600 V |
| Hole Diameter | 0.34 in |
| Number of Conductors | 1 |
| Tongue Width | 0.63 in |
| Maximum Operating Temperature | 194 deg F |
| Hole Spacing | 0.9 in |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| Overall Width | 1 in |
| Overall Length | 3.63 in |
| Contact Finish | Unplated |
| Overall Depth | 5/8 in |
| For Stud Size | 5/16 in |
| For Conductor Material | Copper |
| Number of Terminations | 1 |
| For Stranded Copper Wire Size - Maximum | 1 AWG |
| Conductor Size | 4-1 AWG |
| Type | Bolted Lugs & Terminals |
| Physical Attribute - Number of Screws | 2 |
| Installation Torque Recommended in-lb | 150 LBS/in |
| Dimension - Hole Size mm | 9 mm |
| Dimension - Pad Width inch | 0.63 in |
| Dimension - D inch | 1.56 in |
| Dimension - Bolt Size fraction | 2023-05-16 |
| Dimension - Length Overall inch | 3.63 in |
| Dimension - N inch | 0.34 in |
| Industry Standard(s) | UL468A-468B |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Application | For Copper Cable |
| Dimension - Hole Size inch | 0.34 in |
| Dimension - Height inch | 1 in |
| Conductor - Copper Str Navy Size | 40 (19) Navy;50 (19) Navy;60 (37) Navy;75 (37) Navy |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
| Conductor Type | CU C Str-SizeCU C Navy-Size |
| Dimension - F Width Center to Center inch | 0.9 |
| Plated | N |
| Trade Name | QIKLUGâ„¢ |
| Physical Attribute - Number of Holes | 2 |
| Certification - CSA Approved | No |
| Conductor - Copper Str Size | 4 AWG;3 AWG;2 AWG;1 AWG |
| Conductor - Copper Str Navy Size Range | 40 (19) Navy-75 (37) Navy |
| Conductor - Copper Str Size Range | 4 AWG-1 AWG |
| Dimension - L Length Overall mm | 92 mm |
| Plating Type | Unplated |
| Dimension - Height fraction | 1 in |
| Package Quantity | 1 |
