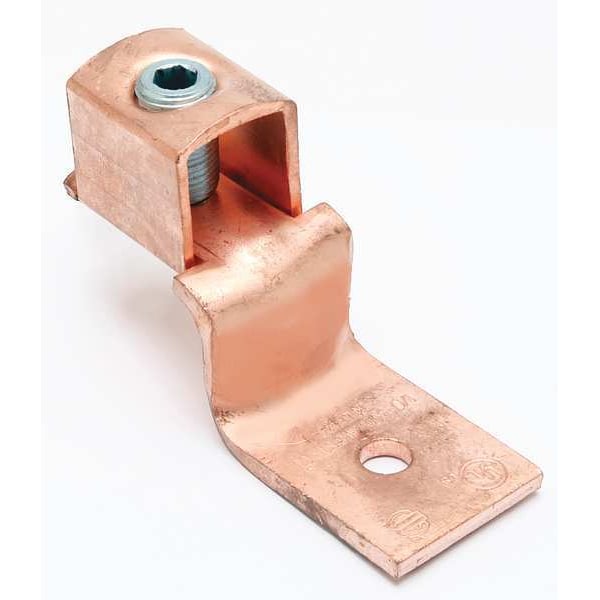

Conector mecánico, terminal, de 6 a 14 AWG, 1 conductor.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Stranded/Solid |
| Max. Conductor Size | 6 AWG Stranded/Solid |
| Stud Size | #10 |
| Material | Copper |
| Length | 1.24 in |
| Width | 0.43 in |
| Standards | cULus Listed, UL Listed |
| Body Material | Copper |
| Head Style | Slotted |
| Length (Straight Wireway) | 1.24 in |
| Tongue Width | 0.38 in |
| Compatible with Product Type | Copper Cable |
| Torque | 35 in-lb |
| Overall Length | 1.24 in |
| Overall Width | 0.43 in |
| Hole Diameter | 0.2 in |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Special Features | Easy Installation, Long Lasting Reliable Contact |
| Contact Finish | Unplated |
| Number of Conductors | 1 |
| Maximum Voltage | 600 V |
| Overall Depth | 3/8 in |
| For Stranded Copper Wire Size - Maximum | 6 AWG |
| Tongue Thickness | 0.07 in |
| Strip Length | 5/8 in |
| Hole Spacing | Not Applicable |
| Color | Bare |
| For Conductor Material | Copper |
| Maximum Operating Temperature | 194 deg F |
| Tongue Length | Not Applicable |
| Number of Terminations | 1 |
| For Stud Size | #10 |
| Connection Orientation | Offset Tang |
| Conductor Size | 14-6 AWG |
| Type | Bolted Lugs & Terminals |
| Dimension - Screw Size inch | 44,930 |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar |
| Conductor Type | CU C Solid-SizeCU C Str-Size |
| Certification - CSA Approved | No |
| Dimension - Hole Size inch | 0.2 in |
| Dimension - N inch | 0.22 in |
| Dimension - B Length inch | 0.43 in |
| Conductor - Copper Solid Size | 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG |
| Dimension - B Length fraction | 7/16 in |
| Physical Attribute - Number of Holes | 1 |
| Industry Standard(s) | UL467 |
| Conductor - Copper Str Size Range | 14 AWG-6 AWG |
| Dimension - Bolt Size fraction | #10 |
| Dimension - Stud Size inch | #10 |
| Conductor - Copper Solid Size Range | 14 AWG-6 AWG |
| Plated | N |
| Dimension - Strip Length inch | 45,054 |
| Standards - Industry Standards Met | UL467 |
| Dimension - Length Overall inch | 1.24 in |
| Certification - UL Listed Direct Burial | No |
| Dimension - Pad Width inch | 0.39 in |
| Plating Type | Unplated |
| Installation Torque Recommended in-lb | 35 |
| Physical Attribute - Number of Screws | 1 |
| Certification - cULus | Yes |
| Physical Attribute - Screw Type | Slot |
| Trade Name | SCRULUGâ„¢ |
| Dimension - Hole Size mm | 5 mm |
| Dimension - L Length Overall mm | 31 mm |
| UL Listed | No |
| Conductor - Copper Str Size | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG |
| Hardware Type | 1/4 UNF Slotted SetScrew |
| Package Quantity | 1 |
