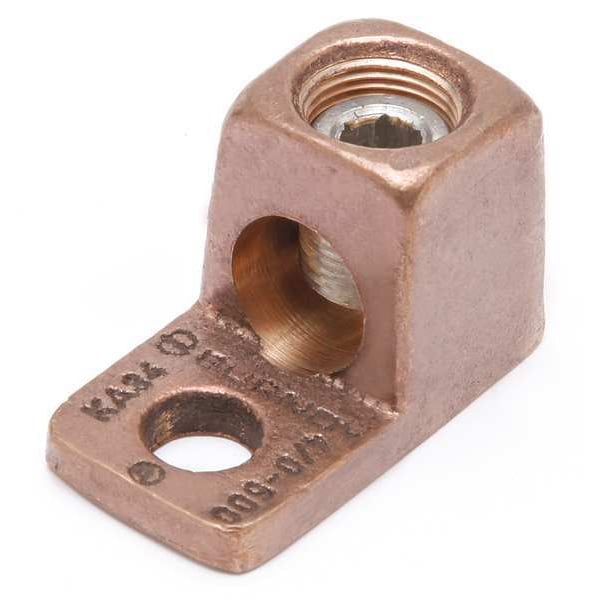

Conector Mecánico, Terminal, de 8 a 14 AWG, 1 Conductor.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Terminal |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Stranded/Solid |
| Max. Conductor Size | 8 AWG Solid/Stranded |
| Stud Size | #10 |
| Material | Copper |
| Length | 0.81 in |
| Width | 0.61 in |
| Standards | UL Listed |
| Body Material | Copper |
| Head Style | Slotted |
| Length (Straight Wireway) | 0.81 in |
| Tongue Width | 0.38 in |
| Hole Spacing | Not Applicable |
| For Stranded Copper Wire Size - Maximum | 8 AWG |
| Overall Depth | 3/8 in |
| Tongue Length | Not Applicable |
| Tongue Thickness | 0.1 in |
| Special Features | Economical, Joining A Wide Range Of Cable |
| Maximum Operating Temperature | 194 deg F |
| Number of Terminations | 1 |
| Overall Length | 0.81 in |
| Maximum Voltage | 600 V |
| Overall Width | 15.42 in |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| For Conductor Material | Copper |
| Number of Conductors | 1 |
| Contact Finish | Unplated |
| Connection Orientation | Compact |
| Compatible with Product Type | Copper Cable |
| Hole Diameter | 0.21 in |
| For Stud Size | #10 |
| Torque | 25 in-lb |
| Type | Bolted Lugs & Terminals |
| Conductor Size | 14-8 AWG |
| Dimension - Width mm | 9.7 mm |
| Dimension - Mounting Hardware Bolt Size inch | 12.24 UNC |
| Dimension - Hole Size inch | 0.21 in |
| Dimension - Pad Width inch | 0.38 in |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks |
| Conductor - Copper Solid Size | 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG |
| Dimension - Height inch | 15.42 in |
| Dimension - L Length Overall mm | 20.6 mm |
| Standards - Industry Standards Met | UL468A-468B |
| Conductor - Copper Str Size Range | # 14 Sol. - # 8 Str. |
| Hardware Type | #12 |
| Plated | N |
| Dimension - Bolt Size fraction | #10 |
| Dimension - Width inch | 0.38 in |
| Plating Type | Unplated |
| UL Listed | Yes |
| Dimension - N inch | 0.19 in |
| Dimension - Length Overall inch | 0.81 in |
| Dimension - Hole Size fraction | 11,871 |
| Industry Standard(s) | UL468A-468B |
| Certification - CSA Approved | No |
| Dimension - Hole Size mm | 5.3 mm |
| Physical Attribute - Screw Type | Flat head round tip |
| Material - Hardware | Steel |
| Conductor Type | CU C Str-Size |
| Package Quantity | 1 |
