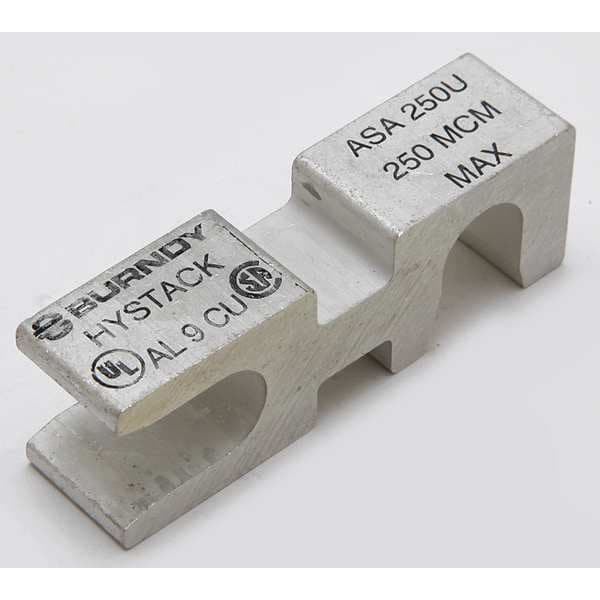

Conector mecánico, adaptador, de 250 kcmil a 1/0 AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Stacking Adaptor |
| Min. Conductor Size | 1/0 AWG Stranded |
| Max. Conductor Size | 250 kcmil Stranded |
| Material | Tin-Plated Aluminum |
| Length | 1 in |
| Width | 0.78 in |
| Standards | CSA Certified |
| Body Material | Aluminum, Copper |
| Length (Straight Wireway) | 1 in |
| For Conductor Material | Aluminum |
| Maximum Voltage | 600 V |
| Tongue Width | Not Applicable |
| Tongue Thickness | Not Applicable |
| Overall Width | 1 in |
| Overall Depth | 3/4 in |
| Hole Diameter | Not Applicable |
| Number of Terminations | Not Applicable |
| RoHS Compliant | Yes |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| Hole Spacing | Not Applicable |
| Contact Finish | Tin |
| For Stud Size | Not Applicable |
| For Stranded Copper Wire Size - Minimum | 1/0 AWG |
| Maximum Operating Temperature | 194 deg F |
| Overall Length | 0.78 in |
| Special Features | The HYSTACK Adaptor Is Specially Designed To Allow Standard Terminals To Be Stacked On Two Or Four Hole NEMA Transformer Or Equipment Terminal Pads, HYSTACK Is Tin-Plated, High-Conductivity Aluminum To Provide Optimum Corrosion Resistance, Only Three Sizes Accommodate Terminals From 250 MCM Through 1000 MCM To Help Keep Costly Inventories To A Minimum |
| Type | Stacking Adapters |
| Conductor - AL Str Size | 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Certification - UL Listed Direct Burial | No |
| Conductor - Copper Str Size | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor Type | AL C Str-SizeCU C Str-Size |
| Dimension - Height fraction | 7/9 in |
| Temperature Rating | 194° F |
| Dimension - L Length Overall mm | 20 mm |
| Plating Type | Tin |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Dimension - Outside Diameter inch | 0.87 in |
| Physical Attribute - Number of Screws | 2 |
| Dimension - Pad Width inch | 1 in |
| Conductor - Copper Str Size Range | 1/0 -250 kcmil |
| Certification - CSA Approved | Yes |
| Dimension - Height inch | 0.77 in |
| Rating - Minimum Voltage | 600 |
| Trade Name | HYSTACKâ„¢ |
| Material - Hardware | DURIUMâ„¢ Silicon Bronze |
| Physical Attribute - Number of Holes | 2 |
| Conductor - AL Str Size Range | 1/0 AWG-250 kcmil |
| UL Listed | Yes |
| Installation Torque Recommended in-lb | 480 LBS/in |
| Application | For Aluminum And Copper Terminals |
| Plated | Y |
| Dimension - Bolt Size inch | 2-3/4 in |
| Dimension - Length Overall inch | 0.78 in |
| Package Quantity | 1 |
