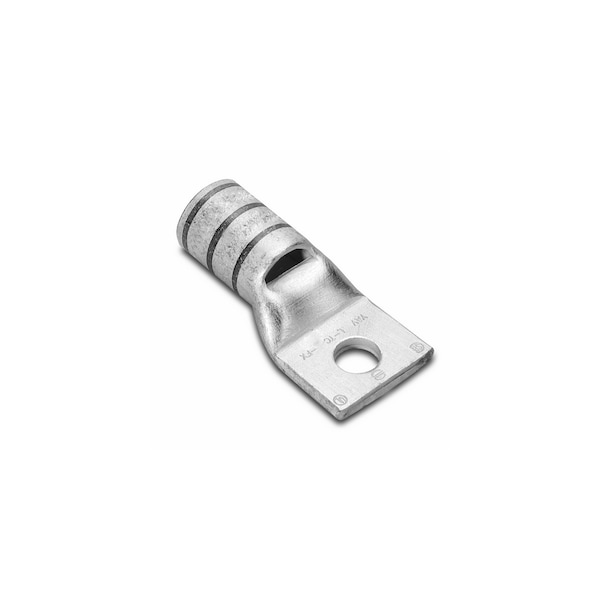

Abrazadera flexible estándar de un agujero, calibre 1/0 AWG, perno de 3/8", ventana de inspección ROHS.
| Wire Range | 1/0 AWG |
|---|---|
| Stud Size | 3/8 in |
| Insulation Color | Pink |
| Connection Material | Copper |
| Terminal Type | Standard |
| Overall Length | 1.94 in |
| Application | For Flex Conductors |
| Seam | Standard, Chamfered |
| Max. Voltage | 600 V, 35 kV |
| Standards | CSA Certified; UL Listed |
| Terminal Orientation | Straight |
| Stud Hole Size (In.) | 3/8" |
| Lug Length X Tongue Width (In.) | 1.94 in x 0.83 in |
| Bolt Hole | 3/8 in |
| Type | Compression |
| Inspection Hole | Yes |
| Holes | 1 HOLE |
| Conductor Size/Gauge | 1/0 AWG |
| Package Quantity | 1 |
