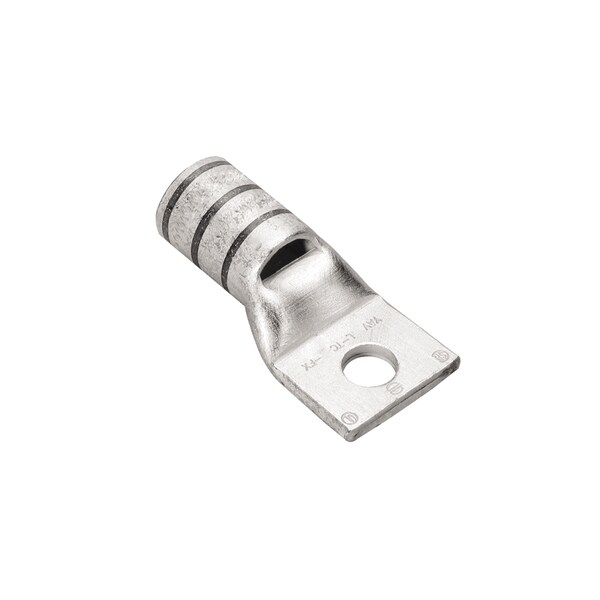

Conector flexible de un orificio estándar BRL, para cable calibre 2 AWG con tornillo de 5/16" y ventana de inspección con certificación ROHS. Ideal para aplicaciones de conexión segura.
| Wire Range | 2 AWG |
|---|---|
| Stud Size | 5/16 in |
| Insulation Color | Brown |
| Standards | CSA Certified; UL Listed |
| Max. Voltage | 600 V, 35 kV |
| Connection Material | Copper |
| Terminal Type | Standard |
| Seam | Standard, Chamfered |
| Overall Length | 1.69 in |
| Terminal Orientation | Straight |
| Application | For Flex Conductors |
| Type | Compression |
| Holes | 1 HOLE |
| Lug Length X Tongue Width (In.) | 1.69 in x 0.68 in |
| Bolt Hole | 5/16 in |
| Color Code | Gray |
| Stud Hole Size (In.) | 5/16" |
| Inspection Hole | Yes |
| Package Quantity | 1 |
