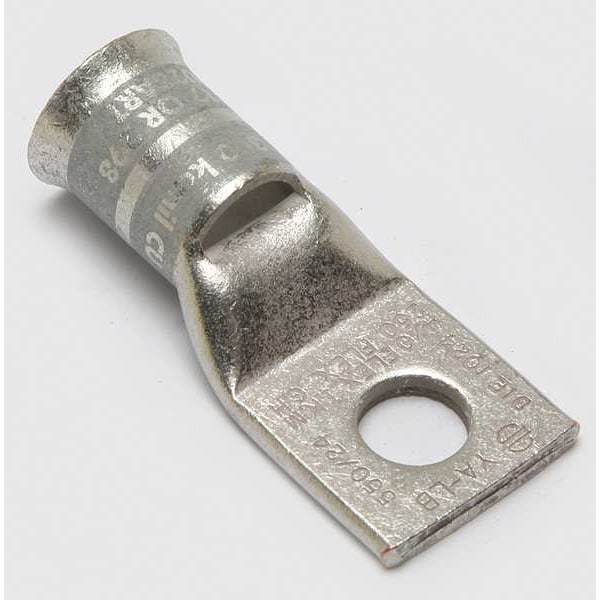

Unión de compresión de un solo orificio, 250 kcmil.
| Cable Size | 250 kcmil |
|---|---|
| Connector Type | Short Barrel |
| Width | 1.2 in |
| Material | Tin-Electro Plated Copper |
| Length | 2.82 in |
| Color Code | White |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Barrel Length | Short |
| Item | One-Hole Lug Compression Connector |
| Hole Center to End | 0.53 in |
| Stud Size | 1/2 in |
| Tongue Style | Standard |
| Plate Material | Electro Tin |
| Peep Hole | Yes |
| Die Code | 1,024 |
| Hole Center to Center | Not Applicable |
| Application | For Flex Conductor |
| Length (Straight Wireway) | 2.82 in |
| For Wire Size | 250 kcmil, 300 kcmil, 4/0 AWG |
| Conductor - Copper Flex H Size | 250 kcmil |
| Voltage Rating | 35 kV |
| Plating Type | Tin Electro Plated |
| Dimension - Outside Diameter inch | 0.81 in |
| Dimension - Z inch | 0.55 in |
| Dimension - N inch | 0.53 in |
| Conductor - Copper DLO Size | 4/0 (550/#24) DLO |
| Die Index | 17 |
| Dimension - Pad Width inch | 1.2 in |
| Conductor - Copper Flex M Size | 4/0 AWG |
| Conductor Size | 300 KCMIL |
| Industry Standard(s) | UL468A-468B |
| Conductor - Copper Str Size | 300 kcmil |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Bolt Size inch | 0.5 |
| Standards - Industry Standards Met | UL468A-468B |
| Conductor - Copper Flex K Size | 4/0 AWG |
| Conductor - Copper Flex I Size | 4/0 AWG |
| Dimension - Strip Length inch | 39448 |
| Voltage - Maximum | 35000 |
| Finish Type | Tin-Plated |
| Dimension - Stud Size fraction | 1 to 2 |
| Dimension - L Length Overall mm | 72 mm |
| Feature - Barrel Type | Standard |
| Dimension - Bolt Size fraction | 1 to 2 |
| Dimension - Hole Size inch | 0.53 in |
| Physical Attribute - Tongue Angle | Straight |
| Rating - Minimum Voltage | 600 |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Rating - KVA | 35 kV |
| Conductor Type | CODE |
| Dimension - B Length inch | 1.04 in |
| Type | Tin Plated, Standard Barrel |
| Conductor - Copper Str Size Range | 300 kcmil |
| Dimension - Length Overall inch | 2.82 in |
| Conductor - Copper Flex M Size Range | 4/0 AWG |
| Feature - Barrel Style | Belled |
| Conductor - Copper Str Navy Size | 300 (91) Navy |
| Certification - CSA Approved | Yes |
| Plated | Y |
| Dimension - Hole Size mm | 13 mm |
| UL Listed | Yes |
| Trade Name | HYLUGâ„¢ |
| Physical Attribute - Tongue Type | Standard |
| Dimension - Hole Size fraction | 1 to 2 |
| Conductor - Copper Flex G Size | 250 kcmil |
| Conductor - Material | Copper |
| Package Quantity | 1 |
