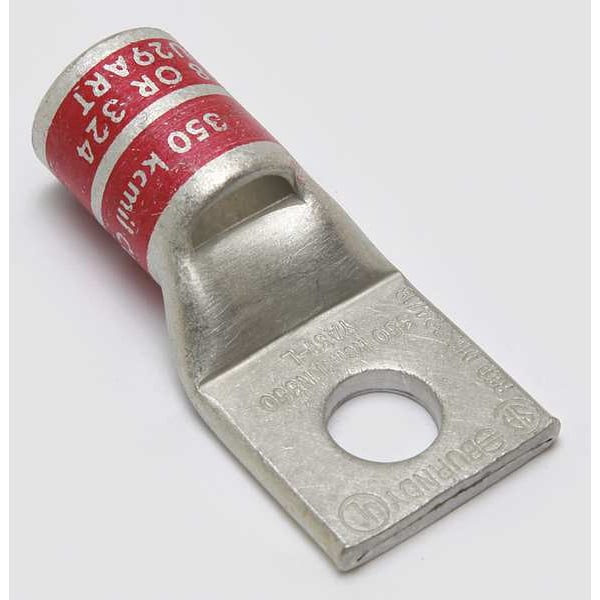

Conector de compresión de ojal simple, 350 kcmil.
| Cable Size | 350 kcmil |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.29 in |
| Material | Copper |
| Length | 2-3/4 in |
| Color Code | Red |
| Item | One-Hole Lug Compression Connector |
| Barrel Length | Short |
| Die Code | 18, 324 |
| Plate Material | Electro Tin |
| Stud Size | 1/2 in |
| Peep Hole | Yes |
| Standards | CSA Certified, UL 486A-486B, UL Listed, UL 467 |
| Tongue Style | Standard |
| Hole Center to End | 0.53 in |
| Hole Center to Center | Not Applicable |
| Application | For Code Conductor |
| Overall Length | 2-3/4 in |
| Overall Width | 1.3 in |
| Length (Straight Wireway) | 2-3/4 in |
| Termination Style | Crimp |
| Barrel Outside Diameter | 0.88 in |
| RoHS Compliant | Yes |
| Barrel Style | Chamfered, Skived |
| Tongue Length | 1.08 in |
| Tongue Thickness | 0.18 in |
| For Wire Type | Stranded |
| Special Features | Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv |
| Inspection Hole | Yes |
| Hole Size | 0.51 in |
| Barrel Size | Standard |
| Strip Length | 1-1/8 in |
| Tongue Width | 1.29 in |
| Maximum Voltage | 35 kV AC |
| Tongue Angle | Straight |
| For Wire Size | 350 kcmil |
| For Stranded Copper Wire Size - Minimum | 350 kcmil |
| For Stranded Copper Wire Size - Maximum | 350 kcmil |
| Maximum Operating Temperature | 194 deg F |
| Contact Finish | Tin |
| For Conductor Material | Copper |
| For Stud Size | 1/2 in |
| Conductor - Copper Str Size Range | 350 kcmil |
| Dimension - Outside Diameter inch | 0.88 in |
| Voltage - Maximum | 35000 |
| Dimension - Bolt Size fraction | 1 to 2 |
| Dimension - Strip Length inch | 39448 |
| Type | Tin Plated, Standard Barrel |
| Conductor - Copper Str Size | 350 kcmil |
| Finish Type | Tin-Plated |
| Physical Attribute - Tongue Angle | Straight |
| Conductor - Material | Copper |
| Dimension - L Length Overall mm | 70 mm |
| Dimension - Z inch | 0.55 in |
| Conductor Type | CODE |
| Dimension - N inch | 0.53 in |
| Feature - Barrel Style | ChamferedSkived |
| Dimension - Hole Size mm | 13 mm |
| Certification - CSA Approved | Yes |
| Rating - KVA | 35 kV |
| Dimension - Stud Size fraction | 1 to 2 |
| Industry Standard(s) | UL467 |
| Dimension - D inch | 1.08 in |
| Dimension - B Length inch | 1.06 in |
| Dimension - Stud Size inch | 1 to 2 |
| Rating - Minimum Voltage | 600 |
| Voltage Rating | 35 kV |
| Dimension - Bolt Size inch | 0.5 |
| Conductor - Copper Str Navy Size Range | 350 (91) Navy |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Standard |
| Die Index | 18 |
| Standards - Industry Standards Met | UL467 |
| Trade Name | HYLUGâ„¢ |
| Feature - Barrel Type | Standard |
| Plated | Y |
| Dimension - B Length fraction | 1-1/16 in |
| Conductor Size | 350 KCMIL |
| UL Listed | Yes |
| Dimension - Pad Width inch | 1.29 in |
| Conductor - Copper Str Navy Size | 350 (91) Navy |
| Dimension - Length Overall inch | 2-3/4 in |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Plating Type | Tin Electro Plated |
| Package Quantity | 1 |
