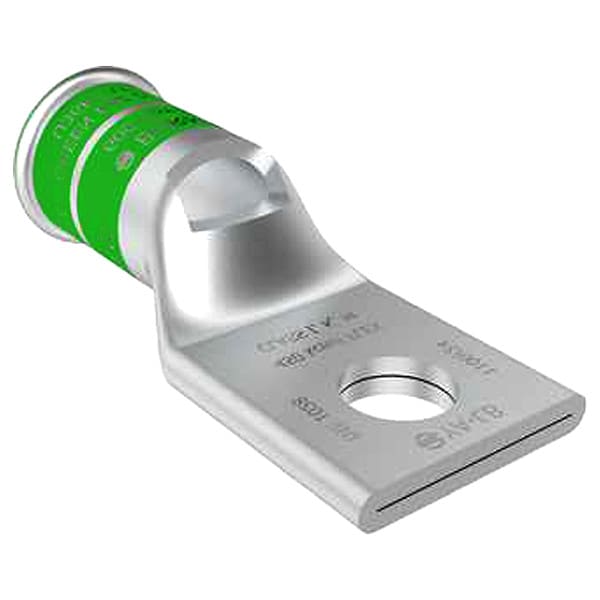

One Hole Lug Compress Conct, 450 kcmil
| Cable Size | 450 kcmil |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.69 in |
| Material | Tin-Electro Plated Copper |
| Length | 3.83 in |
| Color Code | Green |
| Peep Hole | Yes |
| Plate Material | Electro Tin |
| Barrel Length | Short |
| Item | One-Hole Lug Compression Connector |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Stud Size | 5/8 in |
| Die Code | 1,028 |
| Tongue Style | Standard |
| Hole Center to End | 0.88 in |
| Hole Center to Center | Not Applicable |
| Application | For Flex Conductor |
| Length (Straight Wireway) | 3.83 in |
| Rating - KVA | 35 kV |
| Die Index | 22;1028 |
| Feature - Barrel Style | Belled |
| Voltage Rating | 35 kV |
| Dimension - B Length fraction | 1-11/16 in |
| Dimension - Hole Size inch | 0.69 in |
| Dimension - Outside Diameter inch | 1.19 in |
| Conductor Size | 500 KCMIL |
| Conductor - Material | Copper |
| Conductor - Copper Flex K Size | 450 kcmil |
| Conductor - Copper DLO Size | 444.4 (1100/#24) DLO |
| Physical Attribute - Tongue Angle | Straight |
| Industry Standard(s) | UL468A-468B |
| Dimension - Length Overall inch | 3.83 in |
| Dimension - L Length Overall mm | 97 mm |
| Conductor - Copper Flex H Size Range | 500 kcmil |
| Rating - Minimum Voltage | 600 |
| UL Listed | Yes |
| Dimension - Bolt Hole Size inch | 0.66 in |
| Trade Name | HYLUGâ„¢ |
| Finish Type | Tin-Plated |
| Conductor - Copper Flex I Size | 450 kcmil |
| Feature - Barrel Type | Standard |
| Conductor - Copper Flex M Size Range | 450 kcmil |
| Dimension - N inch | 0.88 in |
| Plating Type | Tin Electro Plated |
| Certification - CSA Approved | Yes |
| Dimension - Hole Size mm | 18 mm |
| Plated | Y |
| Voltage - Maximum | 35000 |
| Physical Attribute - Number of Holes | 1 |
| Conductor - Copper Str Size Range | 500 kcmil |
| Physical Attribute - Tongue Type | Standard |
| Dimension - B Length inch | 1.66 in |
| Dimension - Z inch | 0.87 in |
| Conductor - Copper Flex G Size Range | 500 kcmil |
| Dimension - Pad Width inch | 1.69 in |
| Conductor - Copper Flex M Size | 450 kcmil |
| Dimension - Hole Size fraction | 2023-05-08 |
| Dimension - Strip Length inch | 37989 |
| Dimension - Bolt Size inch | 0.63 |
| Type | Tin Plated, Standard Barrel |
| Conductor - Copper Flex K Size Range | 450 kcmil |
| Conductor - Copper DLO Size Range | 444.4 (1100/#24) DLO |
| Conductor - Copper Flex H Size | 500 kcmil |
| Conductor Type | FLEX |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - Stud Size fraction | 2023-05-08 |
| Conductor - Copper Flex G Size | 500 kcmil |
| Wire Size | 500 KCMIL |
| Conductor - Copper Str Size | 600 kcmil |
| Dimension - Bolt Size fraction | 45054 |
| Conductor - Copper Flex I Size Range | 450 kcmil |
| Package Quantity | 1 |
