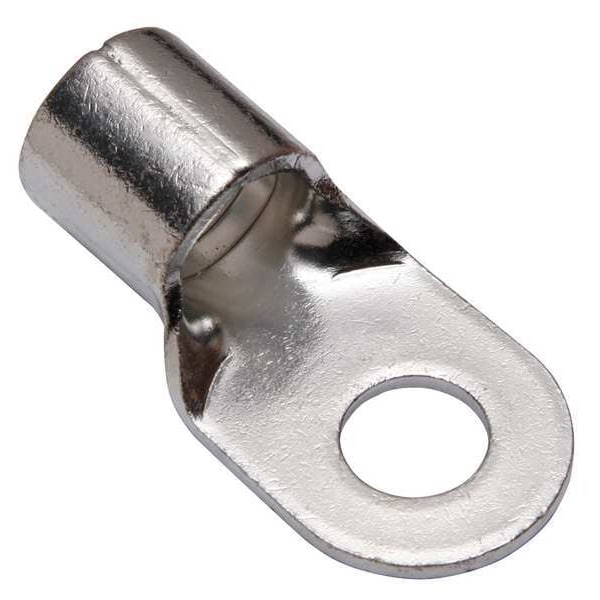

One Hole Lug Compress Conct, 450 kcmil
| Cable Size | 400 Kcmil to 450 kcmil |
|---|---|
| Connector Type | YAD |
| Width | 1-1/2 in |
| Material | Electrolytic Copper |
| Length | 2.95 in |
| Color Code | None |
| Barrel Length | 1.26 in |
| Insulation Color | Bare |
| Tongue Style | Ring |
| Item | Uninsulated Compression Terminal |
| Hole Center to End | 2.2 in |
| Connection Material | Tin Plater Copper |
| Overall Length | 3.01 in |
| Max. Voltage | 600 V |
| Insulation Type | Non-Insulated |
| Stud Size | 3/4 in |
| Peep Hole | No |
| Plate Material | Tin |
| Tongue Width - Wire Connector | 1.51 in |
| Seam | Brazed |
| Wire Range | 450 kcmil |
| Max. Temp. | 302 Degrees F |
| Standards | UL 467 |
| Minimum Wire Size | 400 kcmil |
| Hole Diameter | 0.8 in |
| Barrel Style | Brazed |
| Barrel Outside Diameter | 1.24 in |
| Tongue Thickness | 0.16 in |
| Compatible with Product Type | Code, Flex Cable |
| Termination Style | Crimp |
| Insulation Coverage | None |
| Compatible Manufacturer Model Number | PAT4PC834-18, PAT81KFT-18V |
| Compatible with Series | PAT4PC834, PAT81KFT, Y4PC834, Y81KFT |
| Strip Length | 1-3/8 in |
| Terminal Shape | Ring Tongue |
| Special Features | Resists Overheating and Corrosion |
| Hole Spacing | 0.94 in |
| Minimum Operating Temperature | 302 Degrees F |
| Tongue Width | 1-1/2 in |
| Maximum Wire Size | 450 kcmil |
| Barrel Size | Long |
| Insulation Material | None |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Seam Style | Brazed |
| RoHS Compliant | Yes |
| Contact Material | Copper |
| Tongue Length | 1-3/4 in |
| Maximum Operating Temperature | 302 deg F |
| Dimension - Length Overall inch | 3.01 in |
| Item Type | 3B |
| Application | The YAD uninsulated OEM lug terminal is constructed of electrolytic copper |
| Dimension - Outside Diameter inch | 1.24 in |
| Dimension - Strip Length inch | 39450 |
| Plated | Y |
| Dimension - Hole Size inch | 0.8 in |
| Conductor Type | CU C Str-SizeCU C Flex-Size |
| Conductor - Copper Str Size | 400 kcmil;450 kcmil |
| Dimension - L Length Overall mm | 76 mm |
| Trade Name | HYLUGâ„¢ |
| Dimension - Bolt Size fraction | 2023-03-04 |
| Feature - Barrel Type | Long |
| Conductor - Copper Str Size Range | 400-450 kcmil |
| Plating Type | Tin |
| Standards - Industry Standards Met | UL467 |
| Industry Standard(s) | UL467 |
| Dimension - B Length inch | 1.26 in |
| Dimension - Pad Width inch | 1-1/2 in |
| Voltage - Maximum | 600 V |
| Type | Ring Tongue |
| Physical Attribute - Tongue Type | Ring |
| Dimension - Stud Size inch | 44989 |
| Package Quantity | 1 |
