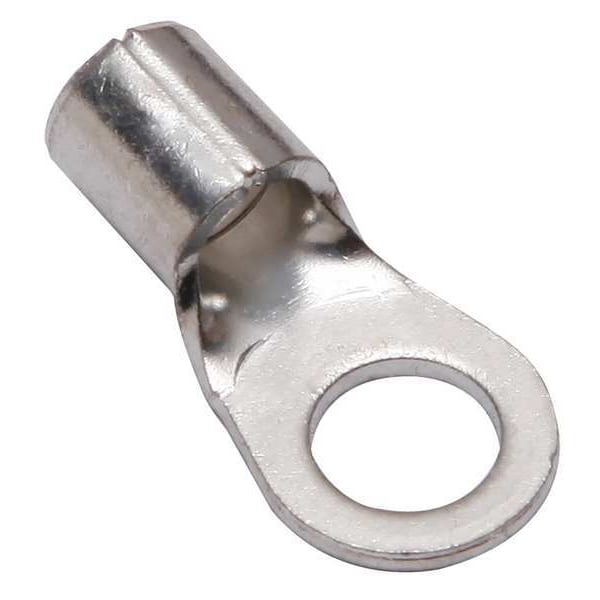

One Hole Lug Compress Conct, 8 AWG, PK10
| Cable Size | 8 AWG |
|---|---|
| Connector Type | YAD |
| Width | 0.43 in |
| Material | Electrolytic Copper |
| Length | 0.89 in |
| Color Code | None |
| Item | Uninsulated Compression Terminal |
| Insulation Color | Bare |
| Peep Hole | No |
| Plate Material | Tin |
| Tongue Width - Wire Connector | 0.43 in |
| Connection Material | Tin Plater Copper |
| Overall Length | 0.89 in |
| Wire Range | 8 AWG |
| Barrel Length | 0.31 in |
| Seam | Brazed |
| Max. Temp. | 302 Degrees F |
| Tongue Style | Ring |
| Stud Size | 1/4 in |
| Hole Center to End | 0.67 in |
| Die Code | 1,013 |
| Max. Voltage | 600 V |
| Insulation Type | Non-Insulated |
| Standards | UL 467 |
| RoHS Compliant | No |
| Barrel Style | Brazed |
| Terminal Shape | Ring Tongue |
| Compatible with Product Type | Code, Flex Cable |
| Insulation Coverage | None |
| Compatible with Series | PAT4PC834, PAT81KFT, Y4PC834, Y81KFT |
| Minimum Operating Temperature | 302 Degrees F |
| Hole Diameter | 0.26 in |
| Tongue Thickness | 0.04 in |
| Compatible Manufacturer Model Number | PAT4PC834-18, PAT81KFT-18V |
| Maximum Wire Size | 8 AWG |
| Barrel Outside Diameter | 0.26 in |
| Maximum Operating Temperature | 302 deg F |
| Termination Style | Crimp |
| Tongue Length | 0.58 in |
| Minimum Wire Size | 8 AWG |
| Maximum Voltage | 600 V |
| Strip Length | 3/8 in |
| Contact Material | Copper |
| Insulation Material | None |
| Seam Style | Brazed |
| Contact Finish | Tin |
| Hole Spacing | 0.36 in |
| Tongue Width | 0.43 in |
| Barrel Size | Long |
| Special Features | Resists Overheating and Corrosion |
| Conductor Size | 8 AWG |
| Type | Ring Tongue |
| Plated | Y |
| Conductor - Copper Str Size | 8 AWG |
| Conductor Type | CU C Str-SizeCU C Flex-Size |
| Item Type | 3B |
| Dimension - Outside Diameter inch | 0.26 in |
| Standards - Industry Standards Met | UL467 |
| Dimension - Length Overall inch | 0.89 in |
| Application | The YAD uninsulated OEM lug terminal is constructed of electrolytic copper |
| Trade Name | HYLUGâ„¢ |
| Dimension - L Length Overall mm | 23 mm |
| Dimension - Hole Size inch | 0.26 in |
| Dimension - Stud Size inch | 44930 |
| Dimension - Strip Length inch | 44993 |
| Dimension - Bolt Size fraction | 2023-01-04 |
| Feature - Barrel Type | Long |
| Industry Standard(s) | UL467 |
| Dimension - Pad Width inch | 0.43 in |
| Dimension - B Length inch | 0.31 in |
| Physical Attribute - Tongue Type | Ring |
| Voltage - Maximum | 600 V |
| Plating Type | Tin |
| Package Quantity | 10 |
