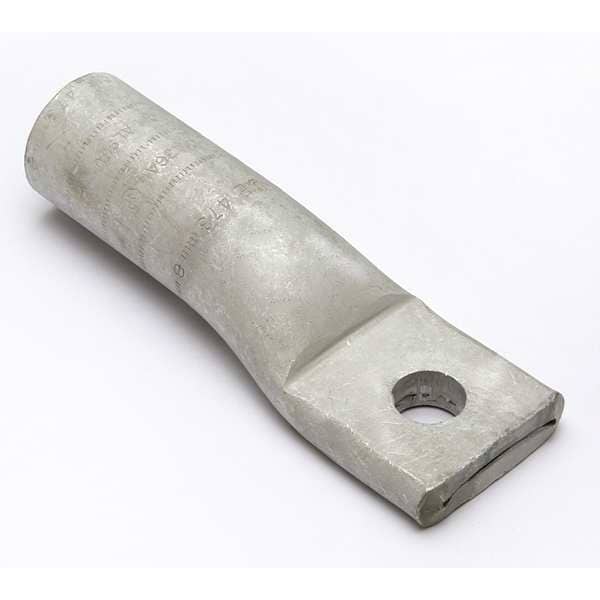

Conector de compresión de agujero único para terminal de 2/0 AWG.
| Cable Size | 2/0 AWG |
|---|---|
| Connector Type | Short Barrel |
| Width | 0.67 in |
| Material | Tin-Plated Aluminum |
| Length | 2.79 in |
| Color Code | Olive |
| Hole Center to End | 0.44 in |
| Tongue Style | Standard |
| Die Code | 297 |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Barrel Length | Short |
| Peep Hole | No |
| Plate Material | Electro Tin |
| Item | One-Hole Lug Compression Connector |
| Stud Size | 3/8 in |
| Hole Center to Center | Not Applicable |
| Overall Width | 0.67 in |
| Overall Length | 2.79 in |
| Application | For Aluminum And Copper Conductors |
| Length (Straight Wireway) | 2.79 in |
| For Wire Size | 2/0 AWG |
| RoHS Compliant | Yes |
| Maximum Voltage | 35 kV AC |
| Tongue Angle | Straight |
| Termination Style | Crimp |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| Barrel Outside Diameter | 0.67 in |
| For Conductor Material | Copper, Aluminum |
| For Wire Type | Stranded, Solid |
| Tongue Thickness | 0.24 in |
| Barrel Style | Chamfered |
| Contact Finish | Tin |
| Hole Size | 0.44 in |
| For Stranded Aluminum Wire Size - Maximum | 2/0 AWG |
| Maximum Operating Temperature | 194 deg F |
| For Stud Size | 3/8 in |
| Tongue Width | 0.67 in |
| Strip Length | 1-3/8 in |
| Special Features | Dual-Rated and Designed for Use on Both Aluminum and Copper Conductors, Durable Long Lasting Corrosion Resistance, High-Conductivity, Low Resistance and Ductility |
| For Stranded Copper Wire Size - Minimum | 2/0 AWG |
| Inspection Hole | No |
| Barrel Size | Standard |
| Tongue Length | 1.18 in |
| Dimension - Bolt Size fraction | 44993 |
| Finish Type | Tin-Plated |
| UL Listed | Yes |
| Voltage Rating | 35 kV |
| Conductor - AL Str Size | 2/0 AWG |
| Die Index | 297 |
| Conductor - Copper Str Size | 2/0 AWG |
| Dimension - Hole Size fraction | 2023-03-08 |
| Dimension - L Length Overall mm | 71 mm |
| Feature - Barrel Type | Standard |
| Trade Name | HYLUGâ„¢ |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Physical Attribute - Number of Holes | 1 |
| Dimension - B Length fraction | 1-1/8 in |
| Wire Size | 2/0 AWG |
| Dimension - Stud Size fraction | 2023-03-08 |
| Dimension - B Length inch | 1.11 in |
| Rating - KVA | 35 kV |
| Certification - CSA Approved | Yes |
| Item Type | 3A |
| Plated | Y |
| Physical Attribute - Tongue Type | Standard |
| Conductor - Copper Str Size Range | 2/0 AWG |
| Dimension - Length Overall inch | 2.79 in |
| Dimension - N inch | 0.44 in |
| Dimension - D inch | 1.89 in |
| Industry Standard(s) | UL468A-468B |
| Conductor Size | 2/0 AWG |
| Dimension - Pad Width inch | 0.67 in |
| Dimension - Bolt Size inch | 0.38 |
| Dimension - Stud Size inch | 44993 |
| Conductor Type | CODE |
| Temperature Rating | 194 |
| Voltage - Maximum | 35000 |
| Dimension - Hole Size mm | 11 mm |
| Type | YA-A, Dual Rated |
| Physical Attribute - Tongue Angle | Straight |
| Conductor - Material | Copper, ALUMINUM |
| Rating - Minimum Voltage | 600 |
| Dimension - Outside Diameter inch | 0.67 in |
| Plating Type | Tin Electro Plated |
| Dimension - Thread Size | 44993 |
| Dimension - Z inch | 0.74 in |
| Feature - Barrel Style | Chamfered |
| Dimension - Hole Size inch | 0.44 in |
| Standards - Industry Standards Met | UL468A-468B |
| Conductor - AL Str Size Range | 2/0 AWG |
| Dimension - Strip Length inch | 39450 |
| Package Quantity | 1 |
