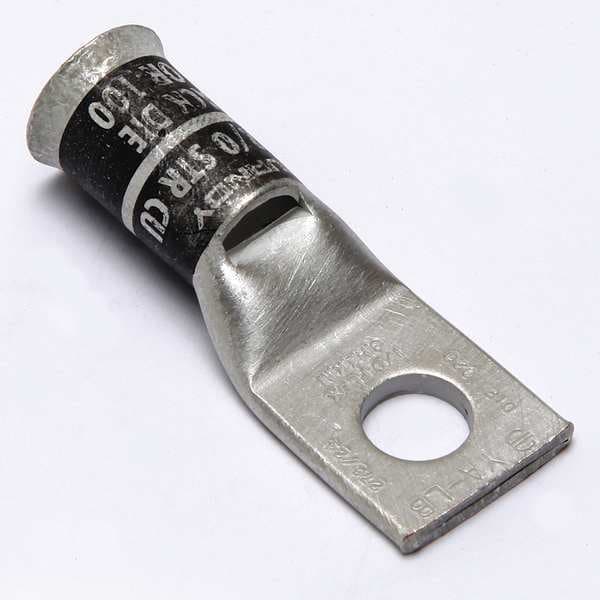

One Hole Lug Compress Connector, 2/0 AWG
| Cable Size | 2/0 AWG |
|---|---|
| Connector Type | Short Barrel |
| Width | 0.83 in |
| Material | Tin-Electro Plated Copper |
| Length | 2.26 in |
| Color Code | Black |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Die Code | 1,020 |
| Hole Center to End | 0.41 in |
| Peep Hole | Yes |
| Stud Size | 3/8 in |
| Item | One-Hole Lug Compression Connector |
| Plate Material | Electro Tin |
| Tongue Style | Standard |
| Barrel Length | Short |
| Hole Center to Center | Not Applicable |
| Application | For Flex Conductor |
| Length (Straight Wireway) | 2.26 in |
| For Wire Size | 1/0 AWG, 2/0 AWG |
| Dimension - Pad Width inch | 0.83 in |
| Rating - KVA | 35 kV |
| Physical Attribute - Number of Holes | 1 |
| Dimension - B Length inch | 0.93 in |
| Dimension - Stud Size fraction | 2023-03-08 |
| Conductor - Copper Str Size | 2/0 AWG |
| Conductor - Copper DLO Size Range | 1/0 (275/#24) DLO |
| Dimension - Length Overall inch | 2.26 in |
| Conductor - Copper Flex G Size Range | 1/0 AWG |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Str Navy Size | 125 (61) Navy |
| Conductor - Copper Flex K Size | 1/0 AWG |
| Conductor - Copper Flex I Size Range | 1/0 AWG |
| Plating Type | Tin Electro Plated |
| Conductor - Copper Flex G Size | 1/0 AWG |
| UL Listed | Yes |
| Voltage Rating | 35 kV |
| Conductor - Copper Str Size Range | 2/0 AWG |
| Dimension - D inch | 0.83 in |
| Physical Attribute - Tongue Type | Standard |
| Conductor - Copper Flex I Size | 1/0 AWG |
| Type | Tin Plated, Standard Barrel |
| Conductor - Copper DLO Size | 1/0 (275/#24) DLO |
| Conductor - Copper Flex M Size Range | 1/0 AWG |
| Plated | Y |
| Conductor Size | 2/0 AWG |
| Dimension - Outside Diameter inch | 0.56 in |
| Dimension - Z inch | 0.42 in |
| Die Index | 13 |
| Conductor - Copper Flex H Size | 1/0 AWG |
| Feature - Barrel Type | Standard |
| Conductor - Copper Solid Size Range | 2/0 AWG |
| Dimension - Bolt Size fraction | 44993 |
| Dimension - Hole Size fraction | 2023-03-08 |
| Trade Name | HYLUGâ„¢ |
| Certification - CSA Approved | Yes |
| Dimension - N inch | 0.41 in |
| Conductor - Copper Flex H Size Range | 1/0 AWG |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Strip Length inch | 1 in |
| Finish Type | Tin-Plated |
| Industry Standard(s) | UL468A-468B |
| Conductor - Copper Solid Size | 2/0 AWG |
| Conductor - Material | Copper |
| Feature - Barrel Style | Belled |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Conductor Type | CODE |
| Dimension - Bolt Size inch | 0.38 |
| Voltage - Maximum | 35000 |
| Dimension - Hole Size inch | 0.4 in |
| Dimension - B Length fraction | 15/16 in |
| Conductor - Copper Flex K Size Range | 1/0 AWG |
| Conductor - Copper Flex M Size | 1/0 AWG |
| Dimension - L Length Overall mm | 57 mm |
| Physical Attribute - Tongue Angle | Straight |
| Standards - Industry Standards Met | UL468A-468B |
| Package Quantity | 1 |
