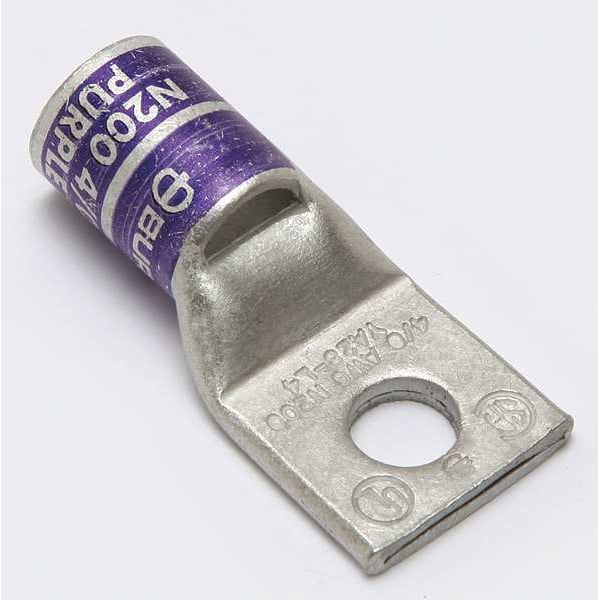

Conector de compresión de terminal de un orificio, calibre 4/0 AWG, Longitud: 2.21 pulgadas.
| Cable Size | 4/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.02 in |
| Material | Copper |
| Length | 3.22 in |
| Color Code | Purple |
| Plate Material | Electro Tin |
| Item | One-Hole Lug Compression Connector |
| Hole Center to End | 0.41 in |
| Tongue Style | Standard |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Die Code | 15 |
| Peep Hole | Yes |
| Stud Size | 3/8 in |
| Barrel Length | Short |
| Hole Center to Center | Not Applicable |
| Overall Length | 2.21 in |
| Overall Width | 1.02 in |
| Application | For Code Conductor |
| Length (Straight Wireway) | 2.21 in |
| Hole Size | 0.4 in |
| Strip Length | 1-1/8 in |
| Tongue Width | 1.02 in |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Maximum Operating Temperature | 194 deg F |
| For Wire Type | Stranded |
| For Conductor Material | Copper |
| Tongue Angle | Straight |
| Tongue Length | 0.83 in |
| Barrel Size | Standard |
| Maximum Voltage | 35 kV AC |
| For Wire Size | 4/0 AWG |
| Tongue Thickness | 0.14 in |
| RoHS Compliant | Yes |
| For Stranded Copper Wire Size - Minimum | 4/0 AWG |
| Inspection Hole | Yes |
| Barrel Style | Chamfered, Skived |
| For Stranded Copper Wire Size - Maximum | 4/0 AWG |
| Special Features | Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv |
| For Stud Size | 3/8 in |
| Barrel Outside Diameter | 0.69 in |
| Dimension - Stud Size fraction | 44993 |
| Physical Attribute - Number of Holes | 1 |
| Dimension - B Length inch | 0.88 in |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Voltage Rating | 35 kV |
| Voltage - Maximum | 35000 |
| Dimension - Pad Width inch | 1.02 in |
| Conductor Type | CODE |
| UL Listed | Yes |
| Dimension - Strip Length inch | 39448 |
| Dimension - Bolt Size fraction | 44993 |
| Physical Attribute - Tongue Type | Standard |
| Conductor - Copper Str Size | 4/0 AWG |
| Dimension - L Length Overall mm | 56 mm |
| Conductor - Copper Str Navy Size | 200 (61) Navy |
| Dimension - B Length fraction | 7/8 in |
| Plating Type | Tin |
| Dimension - Stud Size inch | 44993 |
| Plated | Y |
| Trade Name | HYLUGâ„¢ |
| Conductor Size | 4/0 AWG |
| Die Index | 15 |
| Dimension - Thread Size | 44993 |
| Industry Standard(s) | UL 486A-486B |
| Dimension - Hole Size inch | 0.4 in |
| Feature - Barrel Style | ChamferedSkived |
| Rating - Minimum Voltage | 600 |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Hole Size fraction | 2023-03-08 |
| Conductor - Material | Copper |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Length Overall inch | 2.21 in |
| Conductor - Copper Str Size Range | 4/0 AWG |
| Type | Tin Plated, Standard Barrel |
| Dimension - Outside Diameter inch | 0.69 in |
| Certification - CSA Approved | Yes |
| Rating - KVA | 35 kV |
| Finish Type | Tin-Plated |
| Dimension - Z inch | 0.42 in |
| Feature - Barrel Type | Standard |
| Dimension - Bolt Size inch | 0.38 |
| Dimension - N inch | 0.41 in |
| Package Quantity | 1 |
