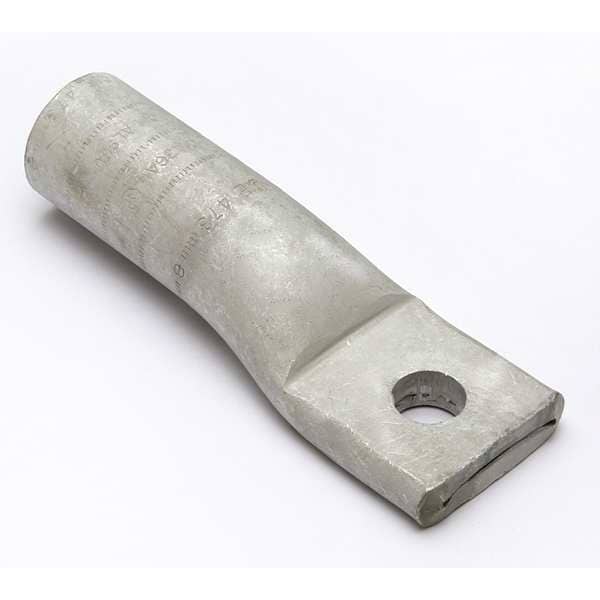

One Hole Lug Compress Connector, 4/0 AWG
| Cable Size | 4/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.17 in |
| Material | Tin-Plated Aluminum |
| Length | 3.44 in |
| Color Code | White |
| Plate Material | Electro Tin |
| Peep Hole | No |
| Die Code | 298 |
| Stud Size | 1/2 in |
| Hole Center to End | 0.63 in |
| Barrel Length | Long |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Item | One-Hole Lug Compression Connector |
| Tongue Style | Standard |
| Hole Center to Center | Not Applicable |
| Application | For Aluminum And Copper Conductors |
| Overall Length | 3.44 in |
| Overall Width | 1.17 in |
| Length (Straight Wireway) | 3.44 in |
| For Stranded Copper Wire Size - Maximum | 4/0 AWG |
| Tongue Width | 1.17 in |
| For Stranded Aluminum Wire Size - Maximum | 4/0 AWG |
| Strip Length | 1-5/8 in |
| Barrel Outside Diameter | 0.85 in |
| Inspection Hole | No |
| For Conductor Material | Copper, Aluminum |
| Maximum Operating Temperature | 194 deg F |
| RoHS Compliant | Yes |
| For Wire Type | Stranded, Solid |
| Tongue Thickness | 0.3 in |
| Barrel Style | Chamfered |
| For Wire Size | 4/0 AWG |
| Barrel Size | Standard |
| Maximum Voltage | 35 kV AC |
| For Stud Size | 1/2 in |
| For Stranded Copper Wire Size - Minimum | 4/0 AWG |
| Tongue Length | 1.36 in |
| Special Features | Dual-Rated and Designed for Use on Both Aluminum and Copper Conductors, Durable Long Lasting Corrosion Resistance, High-Conductivity, Low Resistance and Ductility |
| Hole Size | 0.56 in |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Temperature Rating | 194 |
| Physical Attribute - Tongue Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Conductor Size | 4/0 AWG |
| Dimension - Hole Size fraction | 1 to 2 |
| Rating - Minimum Voltage | 600 |
| Die Index | 298 |
| Conductor - AL Str Size Range | 4/0 AWG |
| Dimension - Pad Width inch | 1.17 in |
| Dimension - Hole Size mm | 14 mm |
| Conductor - AL Str Size | 4/0 AWG |
| Dimension - Strip Length inch | 39452 |
| Certification - CSA Approved | Yes |
| Dimension - Bolt Size inch | 0.5 |
| Conductor - Material | Copper, ALUMINUM |
| Dimension - B Length fraction | 1-3/8 in |
| Conductor - Copper Str Size Range | 4/0 AWG |
| Dimension - Length Overall inch | 3.44 in |
| Conductor - Copper Str Size | 4/0 AWG |
| Feature - Barrel Type | Standard |
| Item Type | 3A |
| Dimension - Thread Size | 1 to 2 |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - Z inch | 0.73 in |
| Wire Size | 4/0 AWG |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - N inch | 0.63 in |
| Industry Standard(s) | UL468A-468B |
| Dimension - B Length inch | 1.39 in |
| Plating Type | Tin Electro Plated |
| Finish Type | Tin-Plated |
| Conductor Type | CODE |
| Voltage Rating | 35 kV |
| Dimension - Bolt Size fraction | 1 to 2 |
| Trade Name | HYLUGâ„¢ |
| UL Listed | Yes |
| Voltage - Maximum | 35000 |
| Feature - Barrel Style | Chamfered |
| Dimension - D inch | 1.36 in |
| Dimension - L Length Overall mm | 87 mm |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Outside Diameter inch | 0.85 in |
| Rating - KVA | 35 kV |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - Stud Size fraction | 1 to 2 |
| Type | YA-A, Dual Rated |
| Plated | Y |
| Dimension - Stud Size inch | 1 to 2 |
| Package Quantity | 1 |
