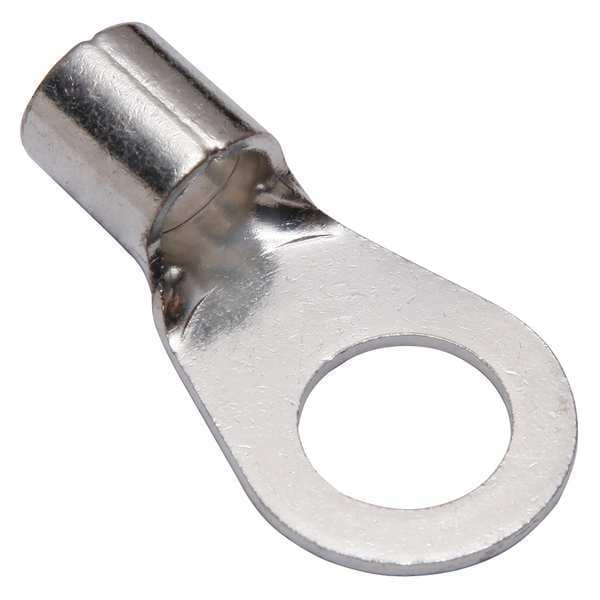

Conector de compresión para un solo orificio, calibre 1 AWG.
| Cable Size | 1 AWG |
|---|---|
| Connector Type | YAD |
| Width | 1.1 in |
| Material | Electrolytic Copper |
| Length | 2.13 in |
| Color Code | None |
| Tongue Width - Wire Connector | 1.1 in |
| Max. Temp. | 302 Degrees F |
| Die Code | 1,019 |
| Connection Material | Tin Plater Copper |
| Wire Range | 1 AWG |
| Overall Length | 2.12 in |
| Insulation Type | Non-Insulated |
| Hole Center to End | 1.57 in |
| Plate Material | Tin |
| Insulation Color | Bare |
| Peep Hole | No |
| Barrel Length | 0.63 in |
| Seam | Brazed |
| Tongue Style | Ring |
| Stud Size | 5/8 in |
| Item | Uninsulated Compression Terminal |
| Max. Voltage | 600 V |
| Standards | UL 467 |
| Strip Length | 3/4 in |
| Compatible with Product Type | Code, Flex Cable |
| Contact Finish | Tin |
| Special Features | Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections |
| Tongue Width | 1.1 in |
| Hole Spacing | 0.94 in |
| Hole Diameter | 0.67 in |
| Minimum Wire Size | 1 AWG |
| Insulation Material | None |
| Barrel Size | Long |
| Maximum Wire Size | 1 AWG |
| Barrel Outside Diameter | 0.57 in |
| Tongue Length | 1.49 in |
| Seam Style | Brazed |
| Maximum Voltage | 600 V |
| Terminal Shape | Ring Tongue |
| Insulation Coverage | None |
| Tongue Thickness | 0.07 in |
| Compatible with Series | PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT |
| Contact Material | Copper |
| Minimum Operating Temperature | 302 Degrees F |
| RoHS Compliant | Yes |
| Termination Style | Crimp |
| Maximum Operating Temperature | 302 deg F |
| Barrel Style | Brazed |
| Conductor - Copper Str Size | 1 AWG |
| Dimension - B Length inch | 0.63 in |
| Item Type | 3B |
| Type | Ring Tongue |
| Dimension - Length Overall inch | 2.12 in |
| Dimension - Bolt Size fraction | 2023-05-08 |
| Dimension - Strip Length inch | 44989 |
| Application | The YAD uninsulated OEM lug terminal is constructed of electrolytic copper |
| Physical Attribute - Tongue Type | Ring |
| Plating Type | Tin |
| Dimension - Stud Size inch | 45054 |
| Dimension - Pad Width inch | 1.1 in |
| Voltage - Maximum | 600 V |
| Standards - Industry Standards Met | UL467 |
| Conductor Type | CU C Str-SizeCU C Flex-Size |
| Feature - Barrel Type | Long |
| Plated | Y |
| Dimension - Outside Diameter inch | 0.57 in |
| Dimension - L Length Overall mm | 54 mm |
| Industry Standard(s) | UL467 |
| Trade Name | HYLUGâ„¢ |
| Conductor Size | 1 AWG |
| Dimension - Hole Size inch | 0.67 in |
| Package Quantity | 1 |
