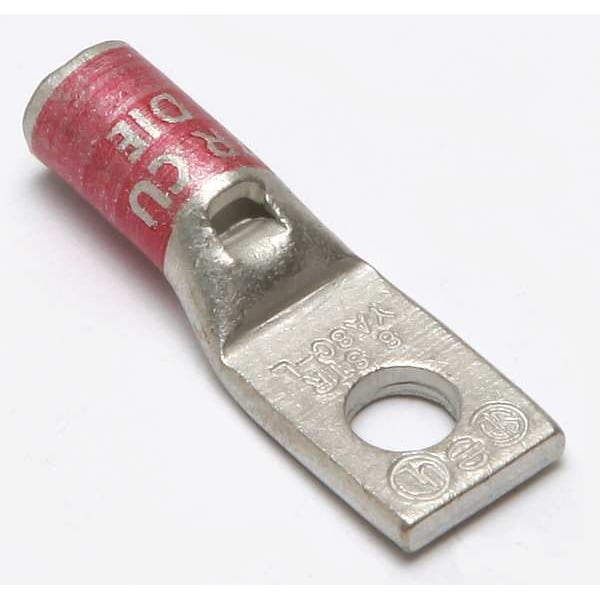

Conector de compresión de un solo agujero, calibre 8 AWG, Material: Cobre.
| Cable Size | 8 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.44 in |
| Material | Copper |
| Length | 1.26 in |
| Color Code | Red |
| Plate Material | Electro Tin |
| Stud Size | 1/4 in |
| Peep Hole | Yes |
| Hole Center to End | 1/4 in |
| Tongue Style | Standard |
| Item | One-Hole Lug Compression Connector |
| Barrel Length | Short |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Die Code | 49 |
| Hole Center to Center | Not Applicable |
| Overall Length | 1.26 in |
| Application | For Code Conductor |
| Overall Width | 0.44 in |
| Length (Straight Wireway) | 1.28 in |
| Maximum Operating Temperature | 194 deg F |
| Maximum Voltage | 35 kV AC |
| Contact Finish | Tin |
| Tongue Width | 0.44 in |
| Inspection Hole | Yes |
| RoHS Compliant | Yes |
| Barrel Style | Chamfered |
| For Wire Type | Stranded, Solid |
| For Stranded Copper Wire Size - Minimum | 8 AWG |
| For Wire Size | 8 AWG |
| Special Features | Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv |
| For Conductor Material | Copper |
| Hole Size | 0.27 in |
| Termination Style | Crimp |
| For Stranded Copper Wire Size - Maximum | 8 AWG |
| Barrel Size | Standard |
| For Stud Size | 1/4 in |
| Tongue Thickness | 0.08 in |
| Tongue Length | 0.58 in |
| Barrel Outside Diameter | 0.27 in |
| Strip Length | 7/16 in |
| Tongue Angle | Straight |
| Wire Size | 8 AWG |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Flex I Size | "8 AWG" |
| Dimension - D inch | 0.58 in |
| UL Listed | Yes |
| Conductor Size | 8 AWG |
| Dimension - N inch | 1/4 in |
| Conductor - Copper Str Navy Size | 23 (7) Navy |
| Plated | Y |
| Dimension - Bolt Size inch | 0.25 |
| Conductor Type | CODE, FLEX |
| Die Index | 49 |
| Conductor - Copper Str Size | 8 AWG |
| Conductor - Material | Copper |
| Dimension - Z inch | 0.33 in |
| Conductor - Copper Flex K Size | "8 AWG" |
| Conductor - Copper Str Navy Size Range | 23 (7) Navy |
| Dimension - Strip Length inch | 45123 |
| Dimension - B Length inch | 0.44 in |
| Dimension - Pad Width inch | 0.44 in |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Stud Size fraction | 44930 |
| Feature - Barrel Style | Chamfered |
| Conductor - Copper Solid Size | 6 AWG |
| Dimension - Hole Size inch | 0.27 in |
| Finish Type | Tin-Plated |
| Dimension - Hole Size fraction | 2023-01-04 |
| Plating Type | Tin Electro Plated |
| Voltage - Maximum | 35000 |
| Feature - Barrel Type | Standard |
| Rating - KVA | 35 kV |
| Certification - CSA Approved | Yes |
| Dimension - L Length Overall mm | 32 mm |
| Temperature Rating | 194 |
| Conductor - Copper Flex H Size | "8 AWG" |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Stud Size inch | 44930 |
| Type | Tin Plated, Standard Barrel |
| Industry Standard(s) | UL 486A-486B |
| Conductor - Copper Flex M Size | "8 AWG" |
| Conductor - Copper Str Size Range | 8 AWG |
| Conductor - Copper DLO Size | 8 AWG |
| Voltage Rating | 35 kV |
| Dimension - Bolt Size fraction | 2023-01-04 |
| Conductor - Copper Str Compact Size | "8 AWG" |
| Conductor - Copper Solid Size Range | 6 AWG |
| Conductor - Copper Flex G Size | "8 AWG" |
| Physical Attribute - Tongue Type | Standard |
| Physical Attribute - Tongue Angle | Straight |
| Trade Name | HYLUGâ„¢ |
| Dimension - Length Overall inch | 1.26 in |
| Dimension - Outside Diameter inch | 0.27 in |
| Dimension - Hole Size mm | 7 mm |
| Package Quantity | 1 |
