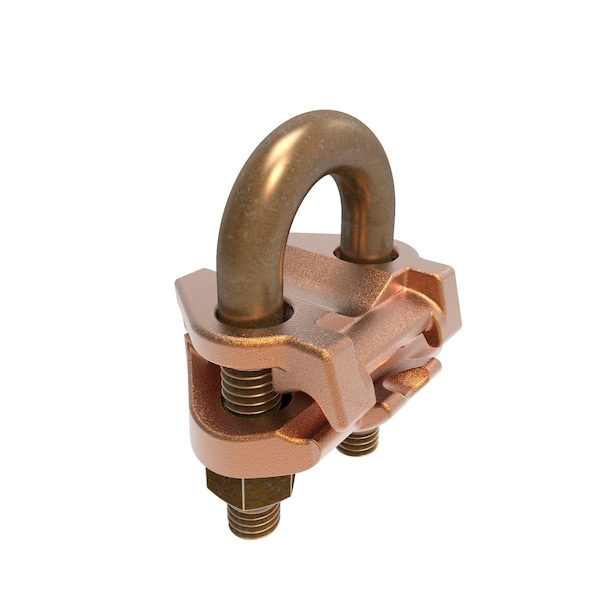

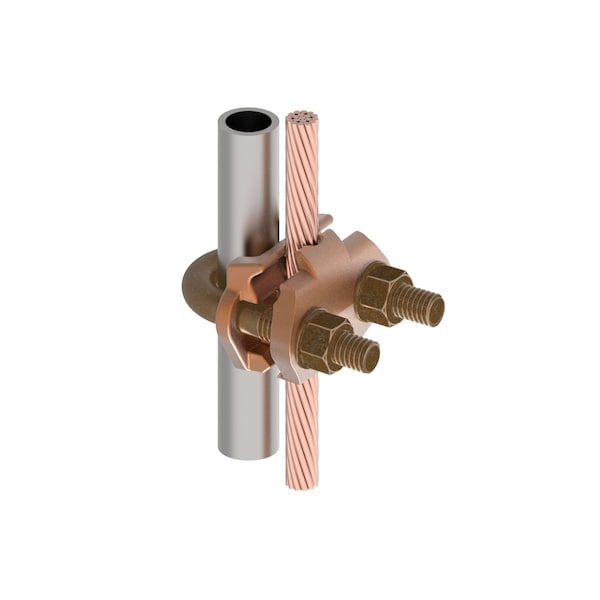

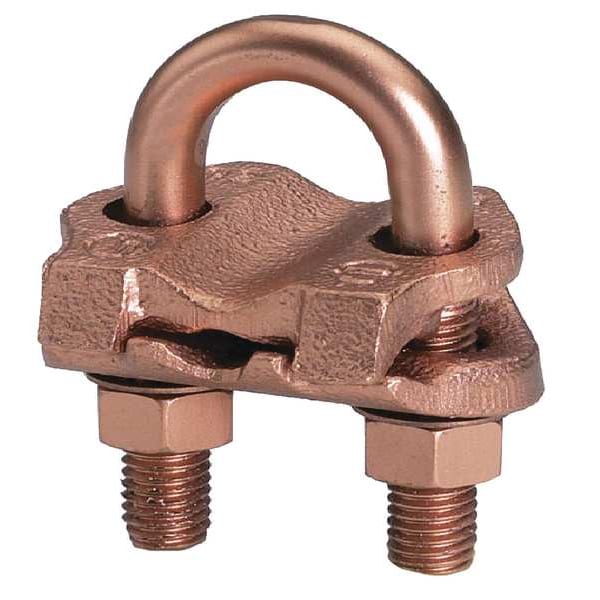

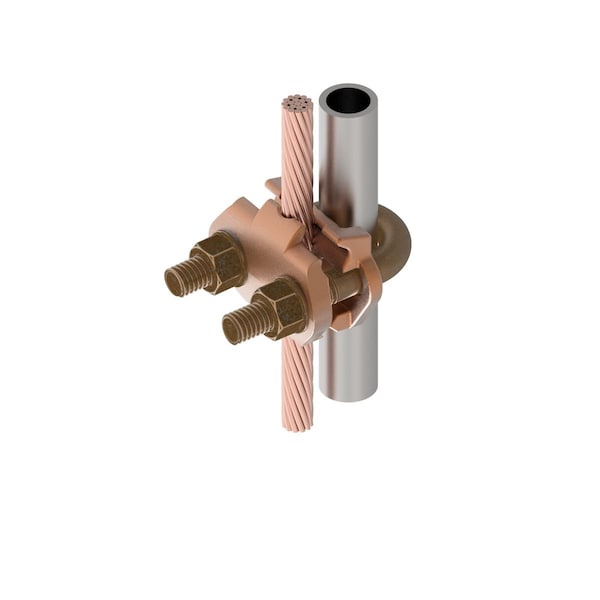

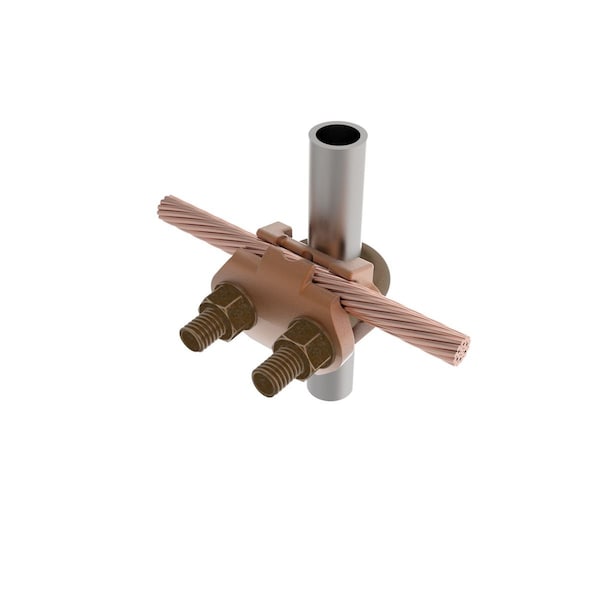

Pipe Ground Clamp, 1/0AWG, 2.88In
| Item - Grounding Connector | Grounding Connector |
|---|---|
| Item | Grounding Connector |
| Type - Grounding Connector | Mechanical |
| Type | COMMERCIAL |
| Wire Size - Grounding | 2/0 AWG to 250 kcmil |
| Material | Copper |
| Grounding Wires Connected To | #5 to #6 Rebar, 3/8 in Pipe, 5/8 in to 3/4 in Rod |
| Standards | UL Listed Direct Burial, UL467 |
| Material - Grounding Connector | Copper Alloy |
| Number of Wires - Grounding | 1 |
| Material of Construction | Copper Alloy |
| Rod Dia. | 5/8" to 3/4" Rod, 3/8" Pipe |
| Conductor Size | 250 kcmil to 2/0 |
| Package Quantity | 1 |
| Description/Special Features | Direct Burial |
| For Use With | Copper Conductors, Ground Rods, Pipes, Rebar |
| Grounding Wire Size | 1/0 AWG to 250 kcmil STR, 2/0 AWG to 250 kcmil SOL |
| Torque | 240 in-lb |
| Overall Width | 2-1/16 in |
| For Maximum Ground Conductor Wire Size | 250 kcmil |
| For Minimum Ground Conductor Wire Size | 2/0 AWG SOL |
| Accessory Type | Ground Clamp |
| For Minimum Pipe Size | 3/8 in |
| For Maximum Pipe Size | 3/8 in |
| Overall Height | 2-7/8 in |
| Overall Length | 1-13/16 in |
| For Rod Dia. | 5/8 to 3/4 in |
| Application | For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Conductor - Rebar Size | 5, 6 |
| Material - Hardware | DURIUMâ„¢ Silicon Bronze |
| Dimension - Width inch | 2.06 in |
| Dimension - Height fraction | 2-7/8 in |
| Conductor - Copper Tube Std Size | 3/8 IPS IPS |
| Conductor - Copper Solid Size Range | 2/0 AWG - 250 kcmil |
| Conductor - Rod Size | 0.625in - 0.75in |
| Conductor - Copper Str Size Range | 1/0 -250 kcmil |
| Dimension - L Length Overall mm | 46 mm |
| Conductor - Copper Tube Std Size Range | 3/8 IPS IPS |
| UL Listed | Yes |
| Plating Type | Bright Dipped |
| Dimension - B Length inch | 1-3/4 in |
| Conductor - Rod Size Range | 5/8 to 3/4 in |
| Conductor - Copper Solid Size | 2/0 AWG;3/0 AWG;4/0 AWG |
| U Bolt Type | 269 |
| Dimension - Height inch | 2.88 in |
| Installation Torque Recommended in-lb | 240 lb-in |
| Industry Standard(s) | UL467 |
| Conductor Type | CU C Solid-SizeCU C Str-SizeCU Tube Std-SizeRod-Size |
| Certification - UL Listed Direct Burial | Yes |
| Dimension - Width fraction | 2-1/8 in |
| Conductor - Pipe or Round Tube Size | 3/8 in |
| Conductor - Copper Str Size | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Rebar Size Range | 45,052 |
| Dimension - Length Overall inch | 1.81 in |
| Dimension - Outside Diameter inch | 0.68 in |
| Dimension - Width mm | 52 mm |
| Plated | N |
| Standards - Industry Standards Met | UL467 |
